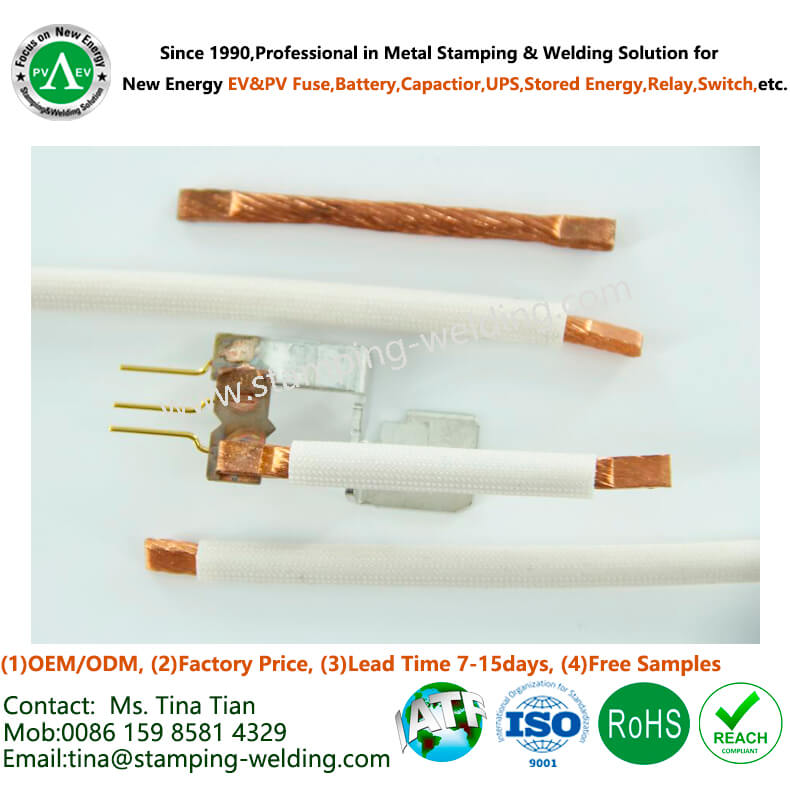

1- Products Name: Copper Stranded Wire with Fiberglass Insulation Pipe for Latching Relay
2- Base Material Standard:

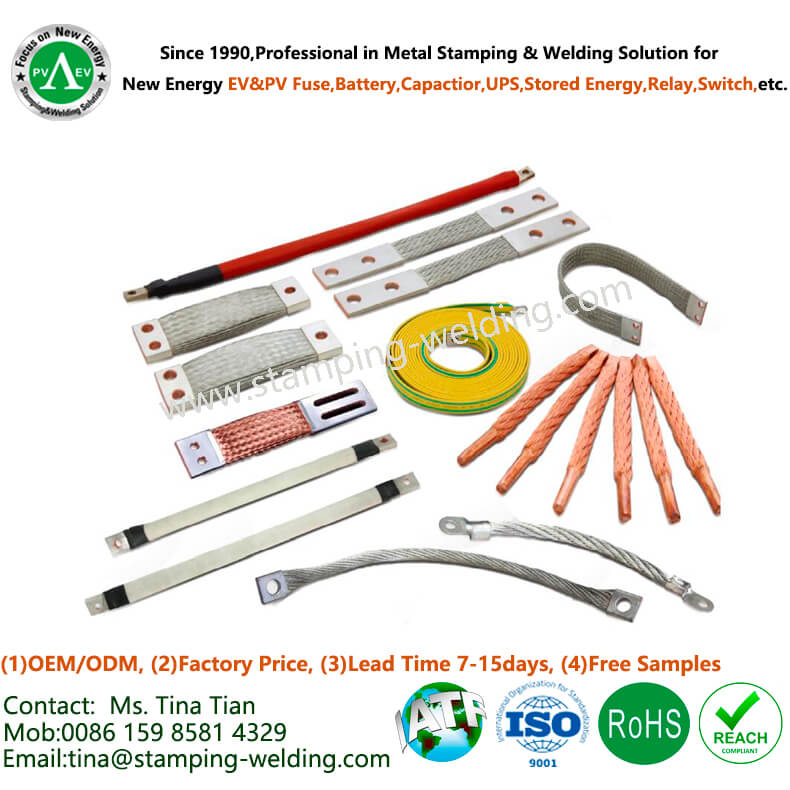

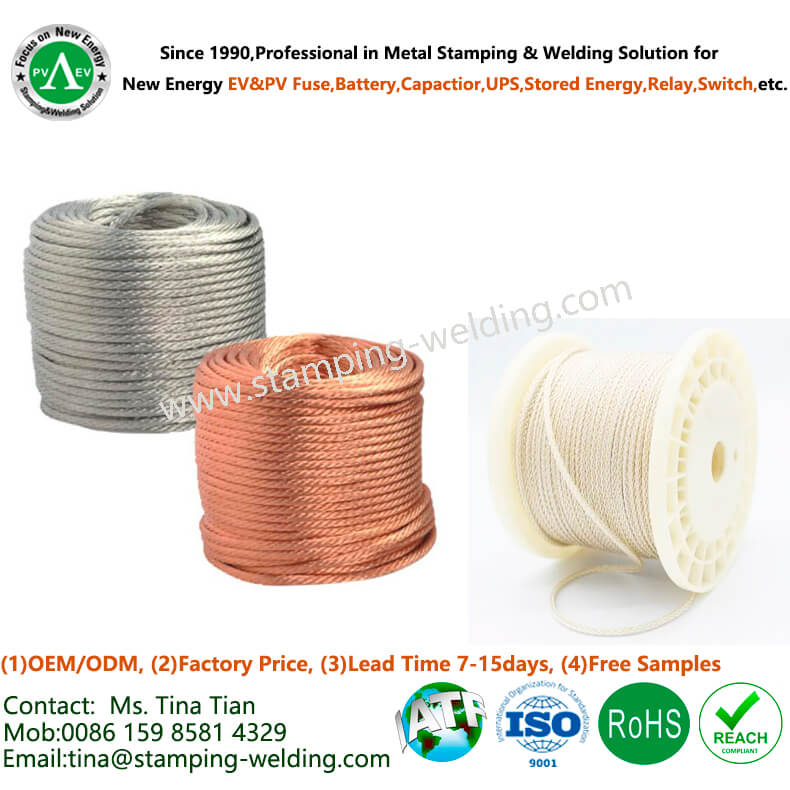

GB: T2Y2 Copper Braided Wire or Copper Stranded Wire
(2.1) The joints at both ends are crimped with high-quality copper pipes or copper lug terminals;
(2.2) Single layer 1.5mm2—150mm2 (multi-layer braided wire can be customized
DIN: E-Cu58 (Number: 2.0065)
EN: Cu-ETP ( Number: CW004A)
ISO: Cu-ETP
UNS: C11000
JIS: C1100
BS: C101
Purity ≥99.99% Copper, Conductivity %IACS≥97, Hardness 80~110HV, Tensile Strength 245-345MPa, other material also can be customized.
3-Surface Treatments:
(3.1) Silver plating
(3.2) Tin plating
(3.3) Nickel plating or Resistance diffusion welding nickel sheet
(3.4) Ultrasonic cleaning
Normally plated thickness is 3μm to 12μm, but all upon customers' request.
4- Insulation Options:
(4.1) PET insulation paper (brands USA GTS, GERMANY KREMPEL, etc with white or milky white colors)
(4.2) PVC dipping (orange and green are the most popular colors)
(4.3) Epoxy powder coating (orange, green and grey are the most popular colors)
(4.4) PE heat shrink tube (orange, green, black, red are yellow are the most popular colors)
(4.5) PA66 plastic housing (white, grey etc are the most popular colors)
Flame Retardant / Fire Resistance: UL94-V-0 or upon you request;
Operating Temperature: -45ºC to +150 ºC
5- Copper Busbar Resistance: ≤0.00001Ω
6- Copper Busbar load voltage 3500VDC to 5000VDC and current 100A to 2000A
7- Copper Busbar Assembly Fixtures: USA PEM stainless nuts, studs, standoffs, screws, etc
8- Free Samples:1-10pcs is allowed
9- Lead Time:Orders 7-10days,Samples 10-20days(including the tooling/die production of Copper Stamped Part);
10- Packing: pearl cotton/blister box inside and carton/pallet outside
11- Certifications: ISO9001, IATF16949, RoHS, REACH, etc.
12- Production Capacity: 50,000,000 pcs/month
13- Applications: film capacitors for new energy electric vehicles and hybrid vehicles, new energy vehicle battery packs, new energy photovoltaic energy storage, power appliances, distribution cabinets, rail transit, cloud server uninterruptible power supplies and other power systems.

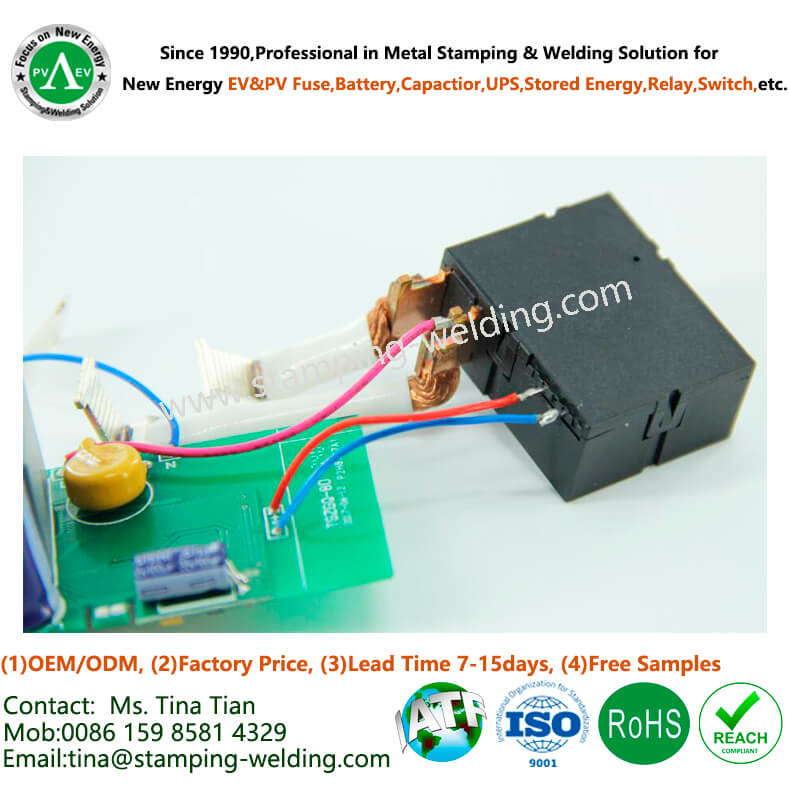

Using copper stranded wire with fiberglass insulation in the construction of latching relays can offer several advantages:
1. Electrical Insulation: Fiberglass insulation provides excellent electrical insulation properties, which are crucial in preventing short circuits and ensuring the proper functioning of the latching relay.
2. Resistance to High Temperatures: Fiberglass insulation can withstand relatively high temperatures, making it suitable for applications where the latching relay may be exposed to heat generated by nearby components or within the environment.
3. Mechanical Strength: The fiberglass insulation adds mechanical strength to the wire, reducing the risk of damage due to bending, vibration, or other mechanical stresses encountered during installation or operation.
4. Resistance to Chemicals and Corrosion: Fiberglass insulation is resistant to many chemicals and corrosion, enhancing the durability and reliability of the latching relay in diverse operating environments.
5. Flexibility: While providing robust insulation, fiberglass insulation maintains the flexibility of the copper stranded wire, allowing for easy routing and installation within the latching relay assembly.
6. Dimensional Stability: Fiberglass insulation maintains its shape and properties over time, ensuring consistent performance of the latching relay throughout its operational life.
7. Compliance with Safety Standards: The use of fiberglass insulation may help the latching relay comply with safety standards and regulatory requirements governing electrical components and devices.
Overall, the combination of copper stranded wire with fiberglass insulation pipe enhances the electrical, mechanical, and thermal properties of the wire, making it well-suited for use in latching relays and other electrical applications where reliability and performance are paramount.
