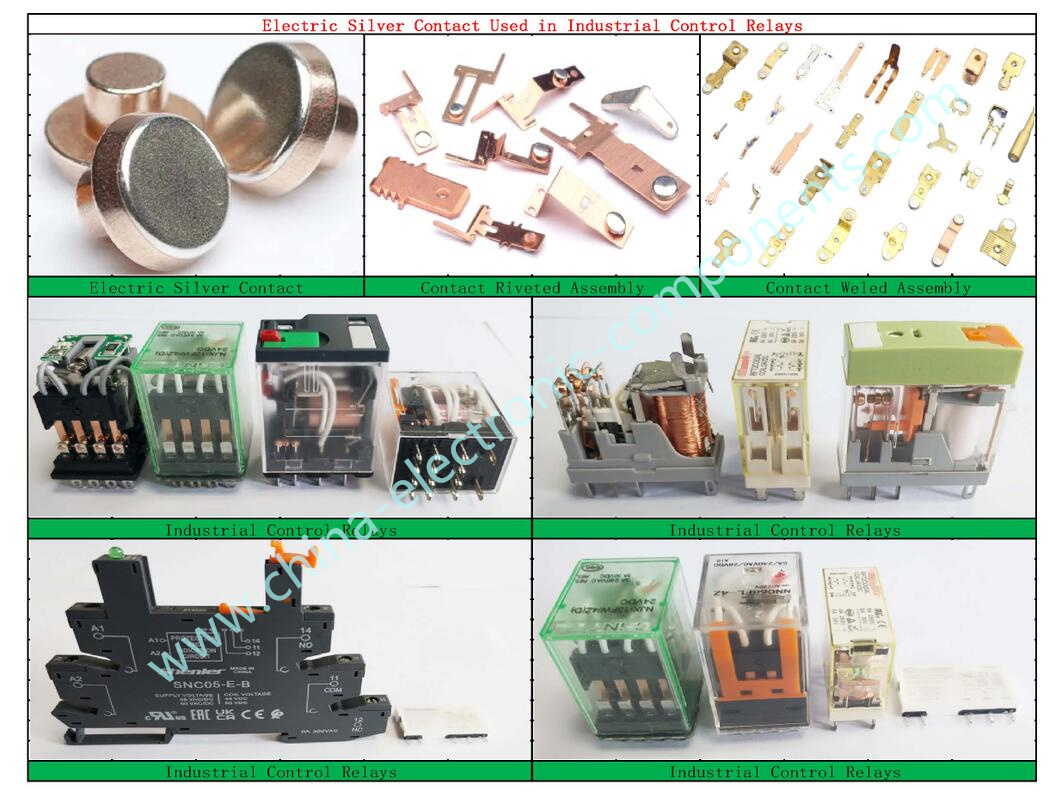

Application of Silver Contact Riveting and Welding in Industrial Control Relay
Silver contact riveting and welding are two common methods used in the production of industrial control relays. These methods are used to create reliable electrical connections between the contacts and other components, which is essential for the proper functioning of the relay.

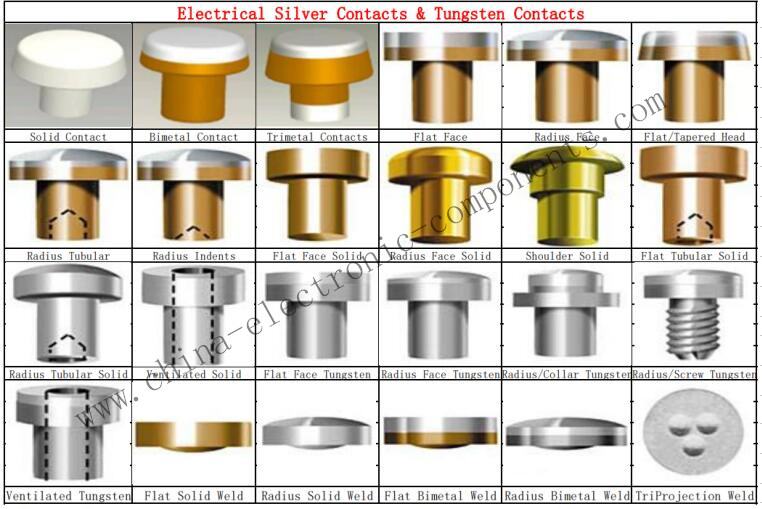

Silver contact riveting involves the use of a specialized machine that presses the contacts together and forms a tight, secure connection between them. This method is commonly used for small or medium-sized relays, and is particularly effective in ensuring a consistent and uniform contact pressure across the entire surface of the contact. The use of silver in the contacts helps to ensure a low contact resistance and a high level of electrical conductivity.

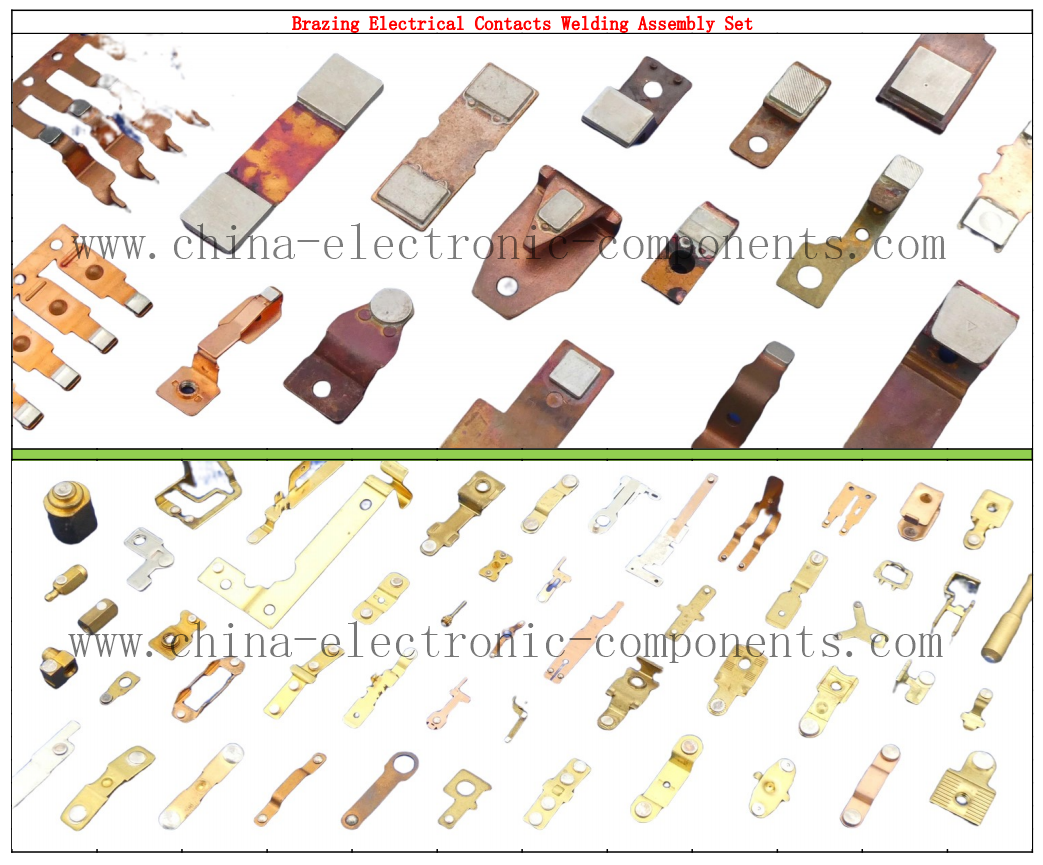

Silver contact welding, on the other hand, involves the use of an electrical current to melt the contacts and create a permanent bond between them. This method is commonly used for larger relays, where a high level of current needs to be switched. Silver contact welding helps to ensure a reliable and durable connection between the contacts, as well as a high level of electrical conductivity.
In industrial control relays, silver contact riveting and welding are used to create reliable and efficient electrical connections between the contacts and other components such as coils, terminals, and connectors. These methods are essential for ensuring the proper functioning of the relay and for maintaining a high level of reliability and safety in industrial control applications.
Overall, the application of silver contact riveting and welding in industrial control relays is an effective way to ensure high-quality, reliable electrical connections and to ensure the proper functioning of critical control systems.
The structure of industrial control relay
An industrial control relay is an electrical component that is used in various industrial control applications to control the flow of electricity to different devices and systems. The structure of an industrial control relay typically consists of the following components:
Contact System: The contact system is the core of the industrial control relay and is responsible for opening and closing the electrical circuit. The contact system typically consists of a movable contact, a stationary contact, and a spring mechanism. When the relay coil is energized, the movable contact is pulled towards the stationary contact, causing them to come into contact and close the electrical circuit. When the coil is de-energized, the spring mechanism causes the movable contact to return to its original position, breaking the circuit.
Coil: The coil is the component of the industrial control relay that generates the magnetic field that causes the movable contact to move towards the stationary contact. The coil is typically made of copper wire wrapped around a metal core, and is connected to an external power source.
Enclosure: The enclosure is the outer casing of the industrial control relay, which protects the internal components from damage and provides insulation. The enclosure is typically made of plastic or metal, and may include mounting brackets or other hardware for easy installation.
Terminals: The terminals are the connection points on the industrial control relay, which allow for easy connection to other components in the electrical circuit. The number and type of terminals may vary depending on the specific application and requirements of the relay.
Auxiliary Components: In some cases, industrial control relays may include additional components such as diodes, resistors, or capacitors to help regulate voltage, protect against electrical surges, or provide other functions.
Overall, the structure of an industrial control relay is designed to provide reliable and efficient control of electrical circuits in a wide range of industrial applications. The contact system, coil, enclosure, terminals, and auxiliary components work together to ensure the proper functioning of the relay and the systems it controls.
