1-Layer Material:Ag,AgNi,AgSnO2,AgSnO2ln2O3,AgCdO,AgZnO Contact Tip/Button
2-Base Material:Copper CNC Machined Terminal
3-Surface Plating:No plated or as require Silver-plated
4-OEM/ODM:Accepted,need your drawing
5-Free Samples:1-5pcs is allowed
6-Lead Time:Samples 5-7days,Orders 7-10days
7-Production Capacity:300,000,000 pcs/month
8-Packing:Inner plastic bag/blister box,Outer carton/pallet
9-Payment Item:T/T,L/C by USD/EUR/RMB
10-Quality Standard:ISO9000,IATF16949,RoHS,REACH
11-Application:Elevator Safety Switch

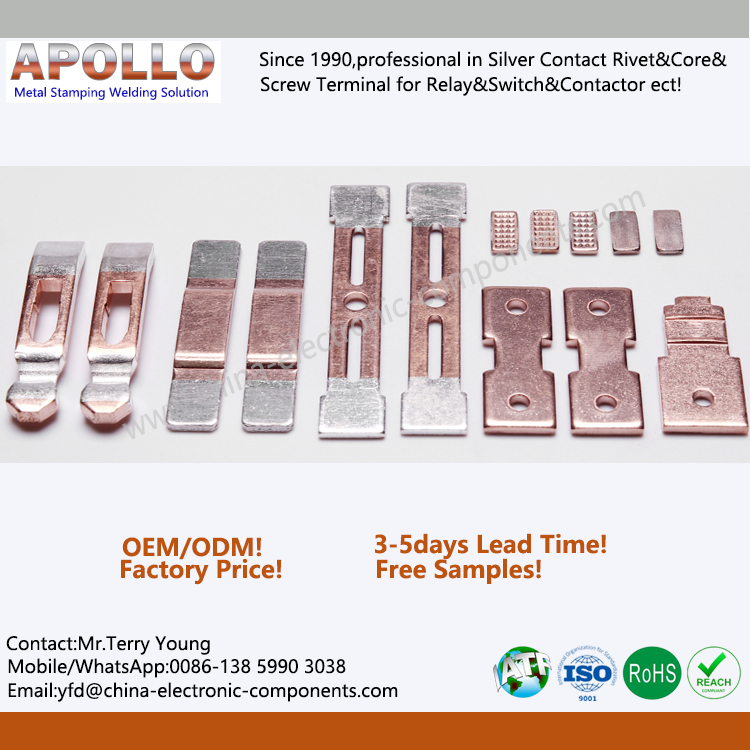

Characteristics of Our Products Electrical Silver Contact Resistance Brazing Welded Assembly
1-Durability of electric abrasion
2-Low and stable connect resistance
3-High stability when working
4-Prevent oxidized when exposure to the air
5-Less and even electrolytic corrosion
Silver Contact Welding process problems and solutions
1. The influence of welding current
Electric current has a greater influence on heat generation than both time and pressure. Therefore, in the Welded Contacts welding process, the current parameter output must be strictly controlled. If the Contact Welding welding current is too small, the nucleus cannot be formed or the size of the nucleus is small, and the Electrical Contact Welding welding joint strength is small; if the welding current is too large, the surface and back of the silver contact will be black and the indentation will be too deep.
2. The influence of welding time
In order to ensure the strength of the silver contact solder joints, the welding time and welding current can complement each other within a certain range. In order to obtain a certain strength of the Brazing Electrical Contacts, but also to ensure the beauty of the Brazed Electrical Contacts, high current and short time can be used.
3. The influence of electrode pressure
The electrode pressure has a significant effect on the total resistance between the two electrodes Welding Electrical Contacts. The electrode pressure is small and splashing is easy to occur. As the electrode pressure increases, the total resistance decreases. When the electrode pressure increases and the welding current remains the same, it cannot compensate for the decrease in heat generation caused by the decrease in total resistance. Therefore, the strength of the Electrical Contact Resistance Brazing decreases with the increase in welding pressure. The solution of Resistance welding Contacts is to increase the pressure At the same time, increase the welding current.
4. The influence of electrode shape and material properties
Since the contact area of the electrode determines the current density, the resistivity and thermal conductivity of the electrode material are related to the generation and loss of heat. Therefore, the shape and material of the electrode have a significant influence on the formation of the nugget. With the deformation and wear of the electrode tip, the contact area increases, and the strength of the Silver Contact Welding will decrease. Pay attention to the maintenance and repair of the electrode (spot welding head) during use. When soldering the Welded Electrical Contact, first consider the stickiness of the solder joints. It is recommended to use tungsten steel electrodes; the soldering contact points are also particularly important. The upper and lower electrodes must be kept flat, otherwise it is easy to cause indentation. If the welding efficiency is too fast, the electrode head is likely to cause heat accumulation. It is recommended that the electrode head be filled with cold water.

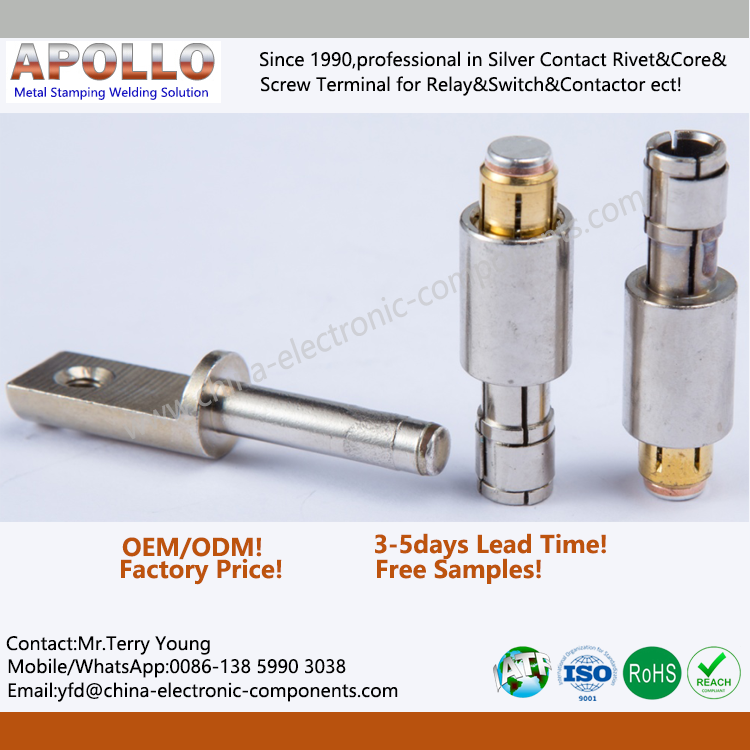

The elevator system which made of Resistance Brazing Electrical Contacts must be equipped with a safety circuit. The so-called safety circuit means that each safety component of the elevator is equipped with a safety switch, and all safety switches are connected in series to control a safety relay. Only when all the safety switches are turned on and the safety relay is closed, the elevator can be energized and run. The key component of the elevator safety switch is the brazing between the copper machined parts and the welding silver contacts. The reliability of the Electrical Contacts Machining Assemblies directly affects the reliability of the switch
Common elevator safety switches are:
1. Computer room: control panel emergency stop switch, phase sequence relay, thermal relay, speed limiter switch;
2. Hoistway: upper limit switch, lower limit switch (some elevators put these two switches in the safety circuit, and some use these two switches to directly control the power supply);
3. Pit: rope break protection switch, emergency stop switch of the pit maintenance box, buffer switch;
4. Inside the car: control box emergency stop switch;
5. Car top: safety window switch, safety gear switch, car top inspection box emergency stop switch.
Contact Information:
Mr.Terry Young (Sales Manager)
Apollo Electronic Components (Xiamen) Co.,Ltd
Xiamen Apollo Stamping Welding Technology Co., Ltd
Add:225#,Jinshang Road,Huli District,Xiamen City,Fujian Province,China,361009
Tel&Fax: 0592-5765084, Mob/WhatsApp/WeChat: 0086-13859903038 ,QQ: 1260358661
Email: yfd@china-electronic-components.com
Web: www.china-electronic-components.com , www.stamping-welding.com
Since 1990,professional in Silver Contact Rivet&Core&Screw Terminal for Relay&Switch&Contactor ect Stamping&Welding solutions !
