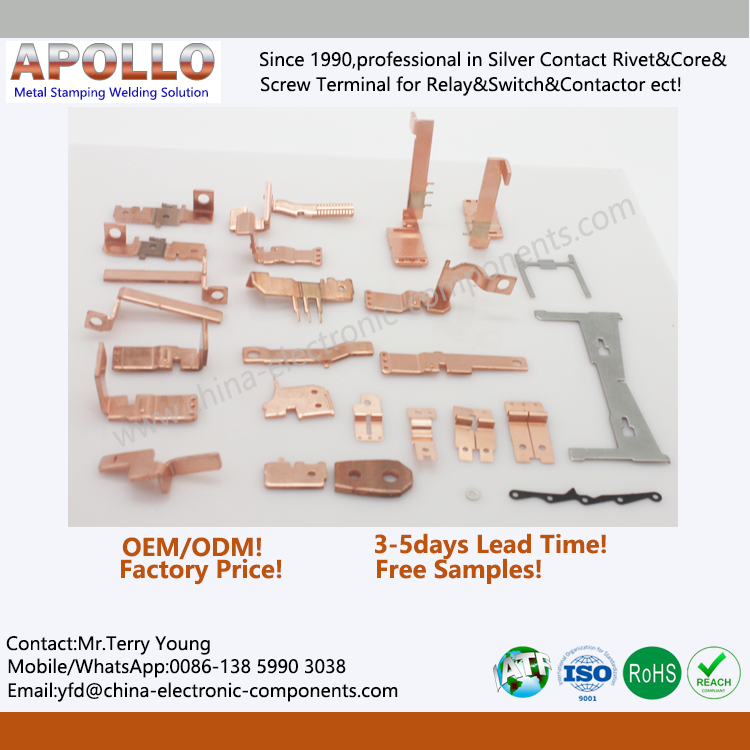

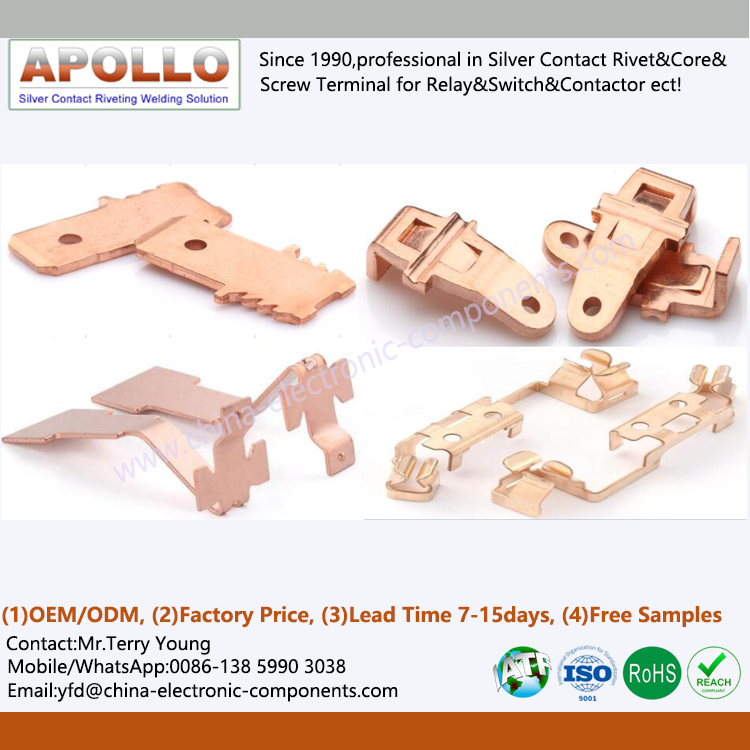

1-Base Material: Red Copper T2Y2 Stamping Parts
2-Surface Plating:No plated or as require Silver-plated,Nickel-plated,etc
3-OEM/ODM:Accepted,need your drawing
4-Free Samples:10-50pcs is allowed
5-Lead Time:Samples 20-30days,Orders 7-10days(including the tooling/die production)
6-Production Capacity:50,000,000 pcs/month
7-Packing:Inner plastic bag/box,Outer carton/pallet
8-Payment Item:T/T,L/C by USD/EUR/RMB
9-Quality Standard:ISO9000,IATF16949,RoHS,REACH
10-Application:Relay,Contactor,Switch,Thermostat,Breaker,other High/Low-voltage electrical appliances.

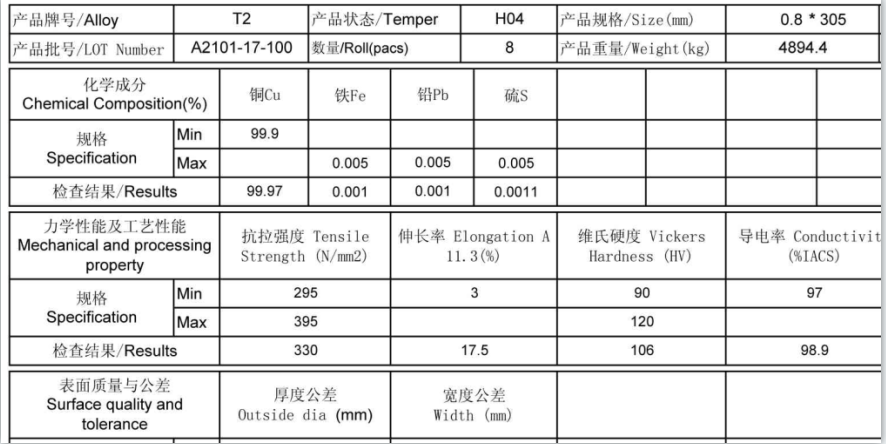

Custom Copper Stamping material characteristics:
1-Red Copper T2Y2 is Copper-silver alloy,Cu+Ag≥99.9%;
2-Semi-hard state,tensile strength 245~345（MPa）,Elongation ≥8%,Vickers hardness 80~110Hv;
3-Conductivity ≥56Ms/m, resistance ≤0.0178x10-6 Ω.m,Density: 8.9 g/cm³;
4-Good electrical conductivity,thermal conductivity,corrosion resistance and processing properties, can be welded and brazed.
Metal Custom Copper Punching process characteristics:
(1) Copper Stamping is a processing method with high production efficiency and low material consumption. The stamping process is suitable for the production of larger batches of parts, which is easy to realize mechanization and automation, and has high production efficiency. At the same time,Copper Sheet Stamping production can not only strive to achieve less waste and no waste production, but also has margins in some cases. The leftover material can also be fully utilized.
(2) The operation process is convenient and does not require the operator to have a higher level of skill.
(3) The Electrical Copper Stamping Parts generally do not need to be mechanically processed, and have high dimensional accuracy.
(4) Metal Stamping Parts Electric Copper have better interchangeability. Stability of stamping processing is better, the same batch of stamping parts. Can be used interchangeably without affecting assembly and product performance.
(5) Since the Copper Stamping Parts are made of plates, its surface quality is better, which provides convenient conditions for subsequent surface treatment processes (such as electroplating and painting).
(6) Copper Strip Stamping can obtain parts with high strength, high rigidity and light weight.
(7) The cost of Red Copper Stamping Parts produced in batches with molds is low.
(8) Precision Copper Stamping Parts can produce parts with complex shapes that are difficult to process with other metal processing methods.
Metal Custom Copper Pressing process sequence:
1-Punching: The stamping process (including punching, blanking, trimming, cutting, etc.) that separates the sheet.
2-Bending: The stamping process of bending the Red Copper Sheet into a certain angle and shape along the bending line.
3-Deep drawing: Copper Stamping Parts process that transforms a flat sheet into various open hollow parts, or further changes the shape and size of the hollow parts.
4-Fine blanking: For products with high blanking precision, products with high requirements on size and surface light can be achieved through fine blanking molds to meet the requirements of the drawings.
5-Local forming: the Copper Stamping process (including flanging, bulging, leveling and shaping processes, etc.) that uses various local deformations of different properties to change the shape of the blank or stamping part.
