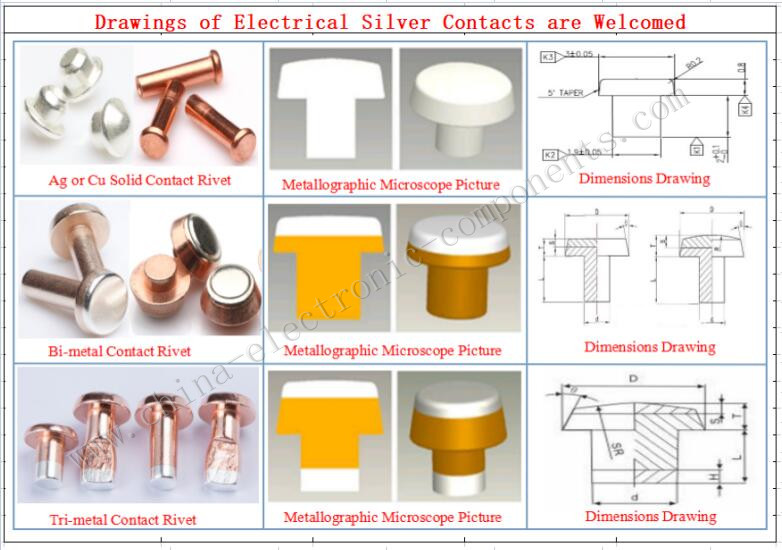

1-Silver Contact Material:Ag,AgNi,AgSnO2,AgSnO2ln2O3,AgCdO,AgZnO,etc
2-Base Terminal Material: Brass H59/H62/H65
3-Surface Plating:No plated or as require Silver-plated,Nickel-plated,etc
4-OEM/ODM:Accepted,need your drawing
5-Free Samples:10-50pcs is allowed
6-Lead Time:Samples 20-30days,Orders 7-10days(including the tooling/die production)
7-Production Capacity:50,000,000 pcs/month
8-Packing:Inner plastic bag/box,Outer carton/pallet
9-Payment Item:T/T,L/C by USD/EUR/RMB
10-Quality Standard:ISO9000,IATF16949,RoHS,REACH

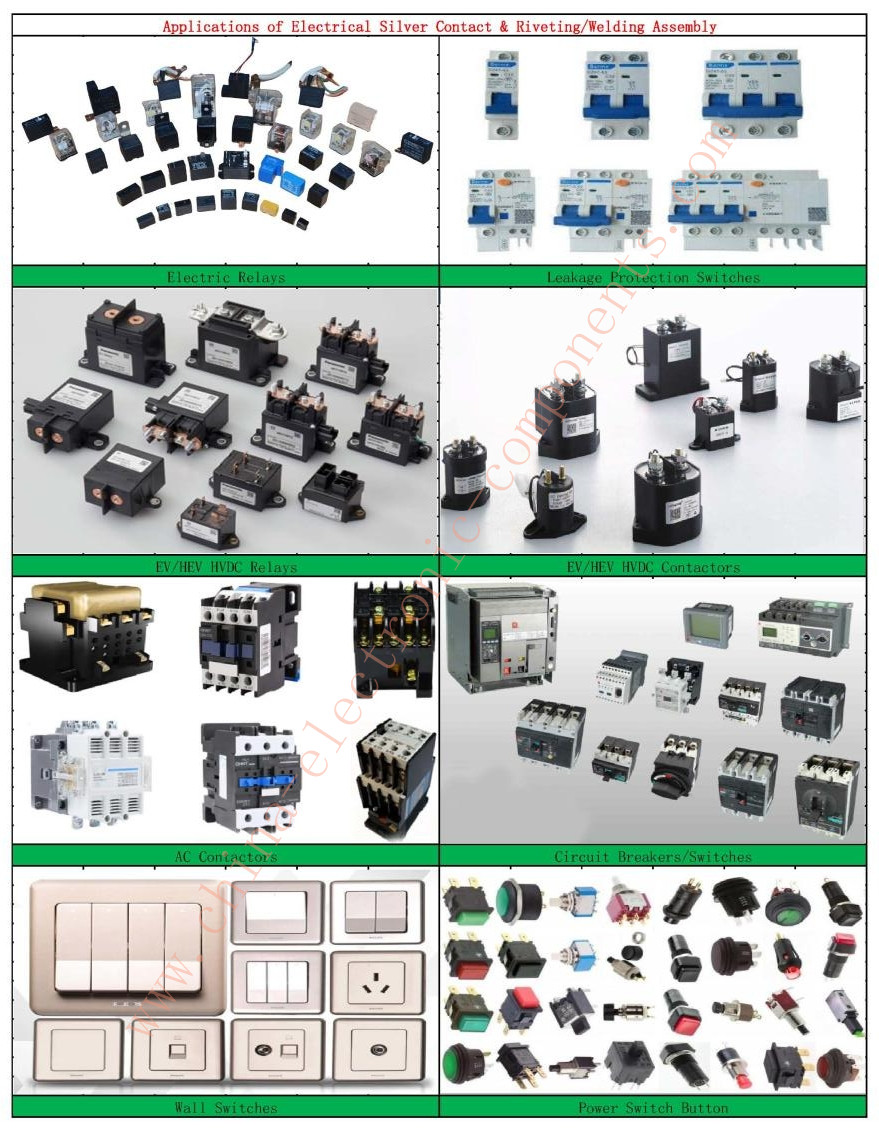

11-Application:Relay,Contactor,Switch,Thermostat,Breaker,other High/Low-voltage electrical appliances.
Metal Custom Brass Stamping process sequence:
1-Punching: The stamping process of Brass Sheet Metal Stamping (including punching, blanking, trimming, cutting, etc.) that separates the sheet.
2-Bending: The stamping process of bending the Electrical Brass Switch Socket Part into a certain angle and shape along the bending line.
3-Deep drawing: Customized Brass Stamping Contact Parts For Wall Socket Plug process that transforms a flat sheet into various open hollow parts, or further changes the shape and size of the hollow parts.
4-Fine blanking: For products Electrical Brass Press Parts For Switch Socket with high blanking precision, products with high requirements on size and surface light can be achieved through fine blanking molds to meet the requirements of the drawings.
5-Local forming: the Electrical Brass Metal Stamping for Socket Switch process (including flanging, bulging, leveling and shaping processes, etc.) that uses various local deformations of different properties to change the shape of the blank or Brass stamping part.

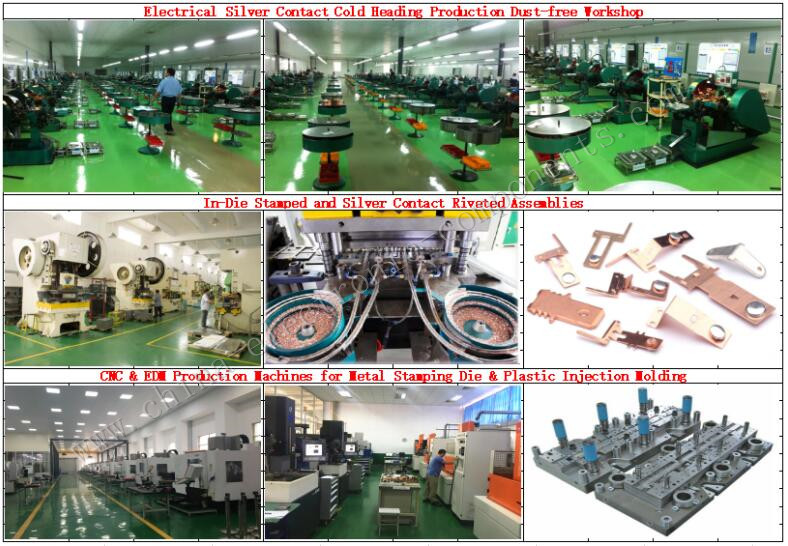

The process steps of in-mold/die/tooling silver contact riveting:
contact progressive die punching brake reed → moving reed pickling → riveting silver contact → moving spring contact assembly bending. Due to the large production volume of this product, in order to improve production efficiency, To stabilize product quality and reduce production costs, the new process route formulated is: progressive die with material to produce moving reed strip → strip cleaning → strip riveting contact and forming.
Technical requirements for in-mold silver contact riveting: In order to achieve good in-mold riveting, the machining accuracy of mold parts is extremely high, and high-precision processing equipment such as oil cutting, PG, JG, etc. is required; at the same time, the vibration plate and the mold must be automatically riveted;Moreover, there are very high requirements for the gap and segment difference of the riveted silver contacts and shrapnel.
The utility model has novel structure and convenient operation. The product is directly formed in the mold and the silver contact processing is carried out at the same time. It reduces procedures, reduces labor costs, improves work efficiency, has high practicability, and greatly improves the in-mold silver contact. The use functionality of the point automatic riveting device ensures its use effect and use efficiency, and is suitable for wide promotion.
How to wash and brighten the surface oxidation of Brass parts after processing?
The simple treatment method of Cold Stamping Brass material after oxidation and rust-the main process flow of chemical method is: firstly carry out the cleaning treatment of oil removal and oxide removal → water washing → Custom Brass Stamping polishing treatment→ Brass Sheet Metal Parts Terminal protection treatment. The Brass Metal Stamping Parts Electrical Accessories Components processed by this method can not only restore the original luster (or even brighter) of the copper parts, but also prevent the Stamped Brass Terminal from being oxidized and keep the brass parts bright as new for a long time.
One is that the oxidized part of the Brass Stamping Processing surface can be cleaned by surface pickling, but the pickling time is relatively short. After pickling, if the surface is directly touched with hands or touched with water, it will quickly oxidize back.
Another method is to do the surface passivation treatment of the Sheet Metal Brass Stamping. The anti-oxidation treatment of the surface lasts longer than the pickling process, and the color of the Electrical Contact Stamping Brass Parts Custom surface after passivation will look better, like rose gold.
