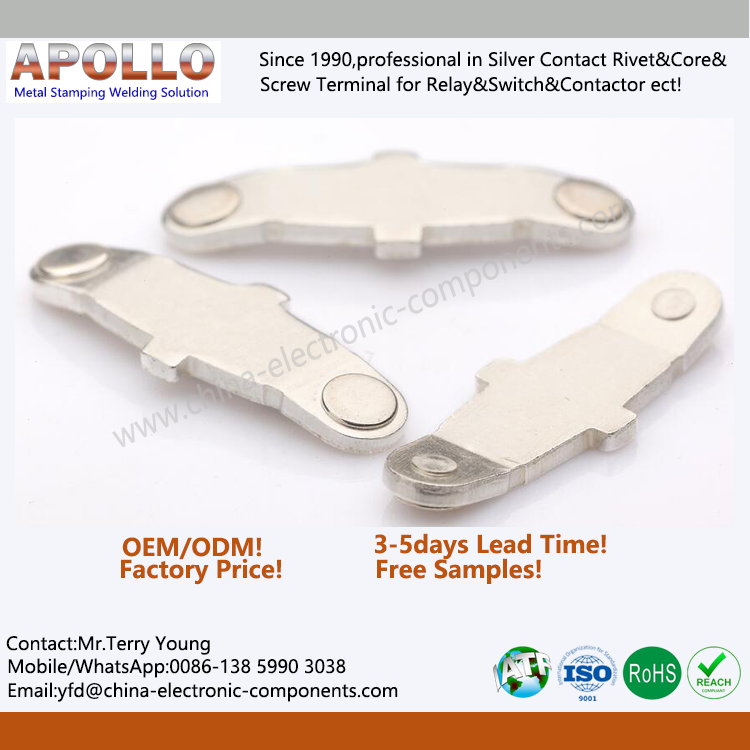

1-Products Name:Copper Strip Stamping and Electric Silver Contacts Rivted Assembly Set
2-Base Material: Red Copper T2Y2 Stamping Part
3-Riveted Silver Contacts: Silver Solid Rivet,Copper Solid Rivet,Bimetal Silver Contact,Trimetal Contact Rivet,etc
4-Surface Plating:No plated or as require Silver-plated.
5-OEM/ODM:Accepted,need your drawing
6-Free Samples:10-50pcs is allowed
7-Lead Time:Samples 25-30days,Orders 7-10days(including the tooling/die production of Copper Stamped Part)
8-Production Capacity:50,000,000 pcs/month
9-Packing:Inner plastic bag/box,Outer carton/pallet
10-Payment Item:T/T,L/C by USD/EUR/RMB
11-Quality Standard:ISO9000,IATF16949,RoHS,REACH
12-Application:Relay,Contactor,Switch,Thermostat,Breaker,other High/Low-voltage electrical appliances.
Our products Electric Silver Contact Features:
1-The contact resistance is low and stable
2-Good welding resistance and thorough opening and closing
3-Good conductivity
4-Good abrasion resistance,the contact surface not changed
5-Not easy to oxidize for a long time
6-Layer material is PAg,AgNi,AgSnO2,AgSnO2ln2O3,AgCdO,AgZnO etc,base material is Copper.
Red Copper T2Y2 Strip material characteristics:
1-Red Copper T2Y2 is Copper-silver alloy,Cu+Ag≥99.9%;
2-Semi-hard state,tensile strength 245~345（MPa）,Elongation ≥8%,Vickers hardness 80~110Hv;
3-Conductivity ≥56Ms/m, resistance ≤0.0178x10-6 Ω.m,Density: 8.9 g/cm³;
4-Good electrical conductivity,thermal conductivity,corrosion resistance and processing properties, can be welded and brazed.
we are leader supplier of Bimetallic Contact Rivet in this field in China,and we are factory,have the best price,can supply the Ex-works for our customers.We have been professional in manufacturing Bimetallic Rivet Contact for more than 20 years in China.As well known,the Bimetal Silver Contacts price is changeable according to the silver raw material price in market,it will make buyers confused and difficult to make sure how operate purchasing plans for Bimetallic Silver Contacts . But we have our own Silver Alloy Contact raw material factory,have a lot of silver and copper material in store,so we have strong risk-resisting ability to give our customers the best and Ex-works price.
The process of In-die Riveting Silver Contacts
Silver contact riveting terminal riveting is a common mechanical connection method, which is more commonly used in metal secondary processing such as stamping, and spin riveting is generally used to connect electronic conductive Electrical Silver Contacts and reeds. Traditional spin riveting is generally completed by the operator after manual assembly on the spin riveting machine. This process not only has low production efficiency, but also has unstable spin riveting quality.

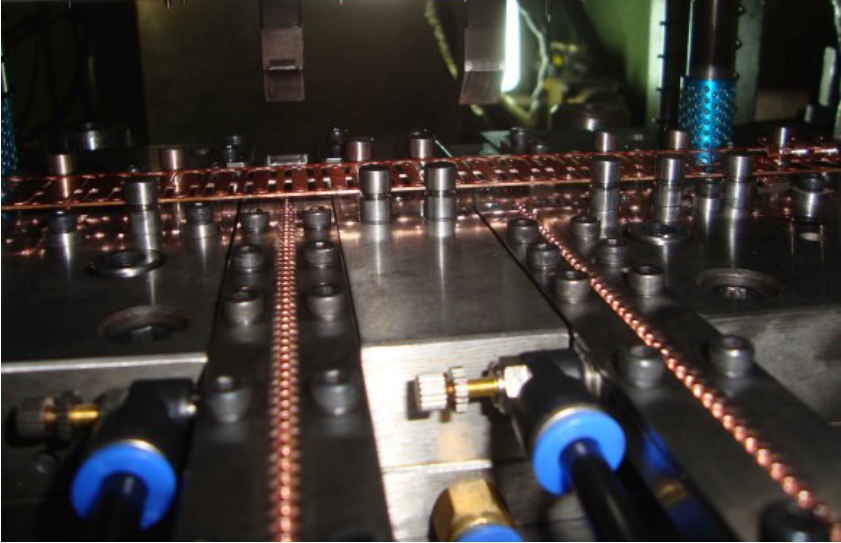

The in-mold riveting Point Contact method used in stamping realizes that the reed is formed in the multi-station progressive die while using automatic control technology to realize the automatic feeding and precise positioning of the conductive Silver Contact Rivet from the mold and the riveting forming, which can not only improve Production efficiency and stable riveting quality.
Contact Information:
Mr.Terry Young (Sales Manager)
Apollo Electronic Components (Xiamen) Co.,Ltd
Xiamen Apollo Stamping Welding Technology Co., Ltd
Add:225#,Jinshang Road,Huli District,Xiamen City,Fujian Province,China,361009
Tel&Fax: 0592-5765084, Mob/WhatsApp/WeChat: 0086-13859903038 ,QQ: 1260358661
Email: yfd@china-electronic-components.com
Web: www.china-electronic-components.com , www.stamping-welding.com
Since 1990,professional in Silver Contact Rivet&Core&Screw Terminal for Relay&Switch&Contactor ect Stamping&Welding solutions !
