2-Brand Name: XIAMEN APOLLO
3-Country of Origin: XIAMEN CHINA
4-Contact Material: Pure Silver(99.99%), Fine Silver(AgNi0.15), AgCdO, AgSnO2, AgSnO2In2O3, AgNi, etc

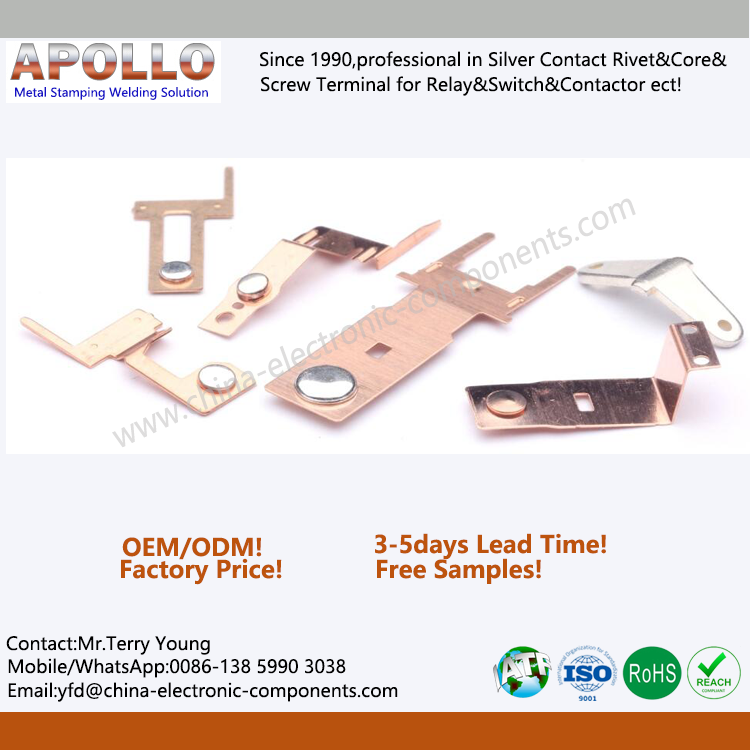

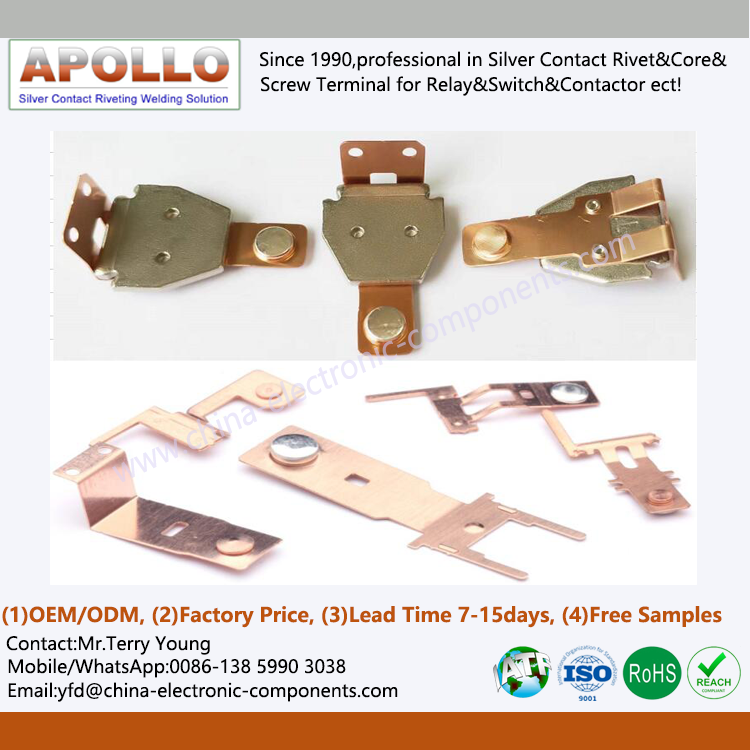

5-Base Material: Beryllium Copper Stamping Terminal
6-Surface Plating: No plated or as require Silver-plated

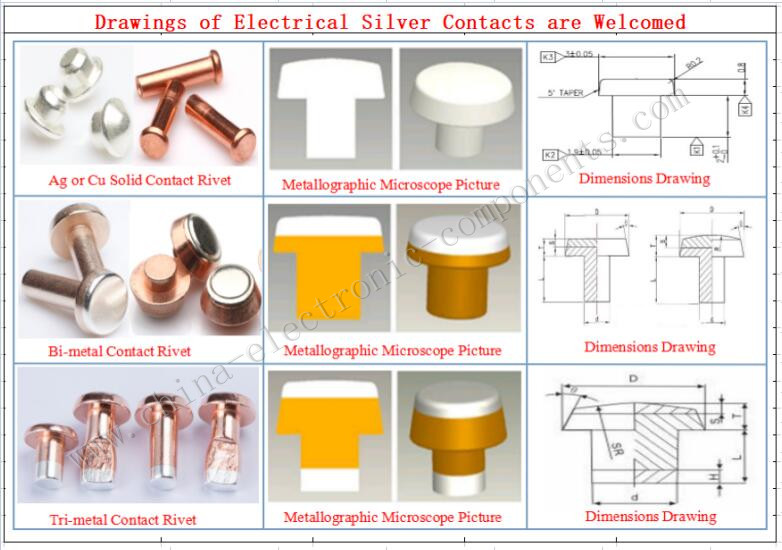

7-Riveted Silver Contact Styles: Solid Ag/Cu Contacts,Bimetal Contacts,Trimetal Contacts
8-OEM/ODM: Accepted,need your drawing
9-Free Samples: 10-50pcs is allowed
10-Lead Time: Samples 20-30days,Orders 7-15days
11-Production Capacity: 50,000,000 set/month
12-Packing: Inner plastic bag/box,Outer carton/pallet
13-Payment Item: T/T,L/C by USD/EUR/RMB
14-Quality Standard: ISO9000,IATF16949,RoHS,REACH
15-Application: Relay,Contactor,Switch,Thermostat,Breaker,other High/Low-voltage electrical appliances
Beryllium Alloy Strip (beryllium alloy) refers to beryllium-based alloys and alloys containing beryllium. There are mainly beryllium copper alloys, beryllium aluminum alloys, beryllium nickel alloys and beryllium titanium composite materials. Among them, beryllium copper alloy is the most widely used. It contains beryllium 0.2% to 2.8%. It has high strength, high conductivity, high toughness, high fatigue limit, high wear resistance, seawater corrosion resistance, non-magnetic, thermal shock resistance, and impact resistance. The advantages of Beryllium Copper Stamping no sparks, etc., are widely used in electrical equipment, electronic devices and control instruments.
Beryllium copper alloy stamped terminal has the characteristics of high strength, high hardness, high conductivity, high elasticity, wear resistance, fatigue resistance, corrosion resistance and small elastic hysteresis. Beryllium Copper Stamping Spring use: all kinds of welding electrodes and precision casting molds, temperature controllers, mobile phone batteries, computers, auto parts, micro motors, brush needles, high-grade bearings, glasses, contacts, gears, punches, all kinds of non-sparking Switch etc. Product designation: C17200 beryllium copper, C17500 beryllium cobalt copper, C17510 beryllium nickel copper. Product types: bars, cakes, bars, blocks, hexagonal bars, plates, strips, wires, tubes, etc. Hardness: >HRB 100 Conductivity: 45-60%IACS.

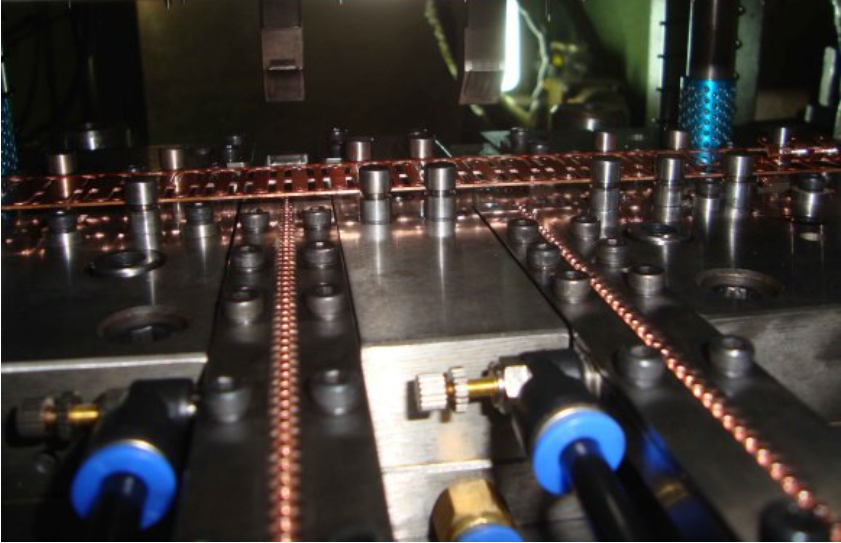

In-die riveting---Technology of in-die riveting of silver contacts in stamping dies
In the world of progressive in die silver contact riveting, technological improvements one after another have brought about improvements in quality, efficiency, time and other aspects. In layman's terms: I can make things better, faster, and at a higher cost. If it is lower, it will bring about the improvement and optimization of the overall efficiency of the industrial chain.

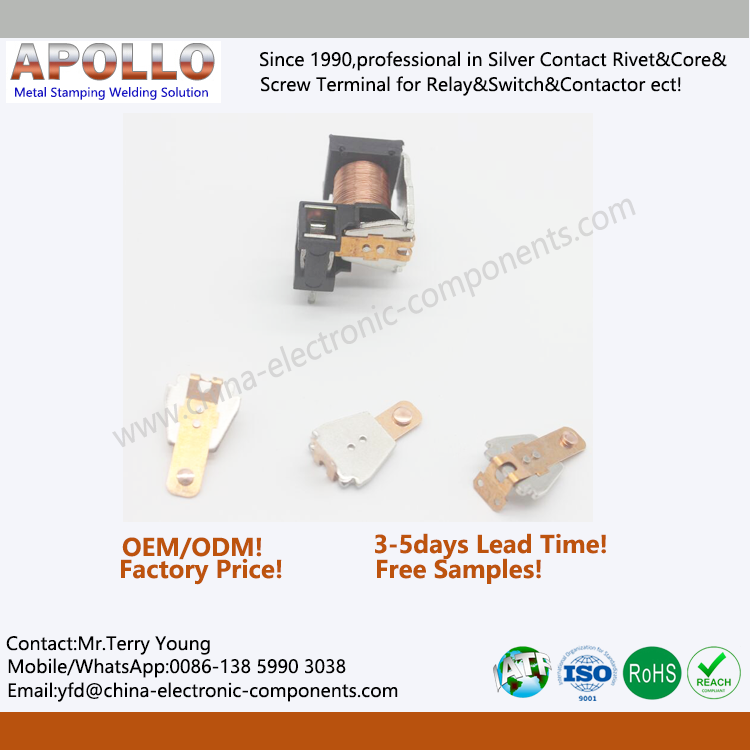

In the relay industry (take the dynamic spring assembly in the T73 model as an example), when there is no in-mold riveting silver contact process:
First, the stamping plant will send the two parts of the Relay moving spring and the Relay armature to the customer through the production;
Second, the customer riveted 1, the armature to the moving reed in his own workshop; 2, riveted the silver contact to the (already riveted armature and moving reed). In this whole process, a total of the following dies are required: a armature stamping die, b relay moving reed die, c armature riveting moving reed die, d silver contact riveting die. In terms of production efficiency, the process of riveting the Silver Electrical Contact (on the already riveted armature and moving reed) alone, a more skilled worker can only produce 10,000 pieces a day, even if this process is replaced by For automated operations, it is still necessary to optimize the process of riveting the armature to the moving reed. The longer the process is stretched, the greater the probability of quality problems between each process. Therefore, in the previous production process of moving reed components, the general daily production capacity was only 10,000 pieces (including overtime, at most 20,000 pieces) ), and when these moving reed components are installed in the T73 finished product, the adjustment-free rate of finished product assembly can only be reached 50%-60%. Let's calculate the assembly cost: at 3,000 yuan per person, 30 days, 10,000 pieces a day, the assembly cost of the last process of a moving reed assembly is 0.01 yuan (this is only the labor cost of the last process, excluding other assembly costs of the process and any quality issues).
Let's now take a look at the process of in-die riveting of silver contacts (also take the dynamic spring assembly in the T73 model as an example)
1. The stamping plant produces the armature; 2. The stamping plant directly completes the production of the movable reed assembly by using the silver contacts through the in-die riveting process;
Second, customers only need to provide Electrical Contact Rivet to the stamping factory; in this whole process, only two dies are needed: a armature stamping die, b Electrical Silver Contacts riveting die in the movable reed die (that is, the production of the movable reed and the armature, contact All the riveting is done in this die). In terms of production efficiency, the speed of this process can be stably controlled between 200 times to 400 times (per minute). If we calculate 300 times per minute, we can achieve the production of 18,000 moving reed components in one hour, 6 hours a day can reach the output of 100,000 pcs.More importantly, the riveting process of the client is directly cancelled here, which saves manpower and shortens the process to: it can only be completed in the production workshop of the stamping plant. And the relay movable reed assembly produced by the Silver Contact Rivet in-die riveting process, when assembled into the T73 finished product, the adjustment-free rate can reach 80%-85%, which greatly improves the quality and output of the customer's finished product. Through the improvement of this technology, we found that the customer's monthly output has increased from 1.5 million finished products to the current monthly output of 5.1 million finished products, which is a full increase of more than three times!
The competitive advantage brought by technological improvement is obvious. In addition to the rising labor costs in the manufacturing industry, more and more relay assembly manufacturers have begun to invest or update automated production lines, and higher requirements are placed on supporting stamping parts suppliers. Electrical Contact Point In-die riveting technology has played an active role in this key component.
Contact Information:
Mr.Terry Young (Sales Manager&Technology Engineer)
Apollo Electronic Components (Xiamen) Co.,Ltd
Xiamen Apollo Stamping Welding Technology Co., Ltd
Add:225#,Jinshang Road,Huli District,Xiamen City,Fujian Province,China,361009
Tel&Fax: 0592-5765084, Mob/WhatsApp/WeChat: 0086-13859903038 ,QQ: 1260358661
Email: yfd@china-electronic-components.com
Web: www.china-electronic-components.com , www.stamping-welding.com
Since 1990,professional in Silver Contact Rivet&Core&Screw Terminal for Relay&Switch&Contactor&Breaker ect Riveting&Welding solutions !
