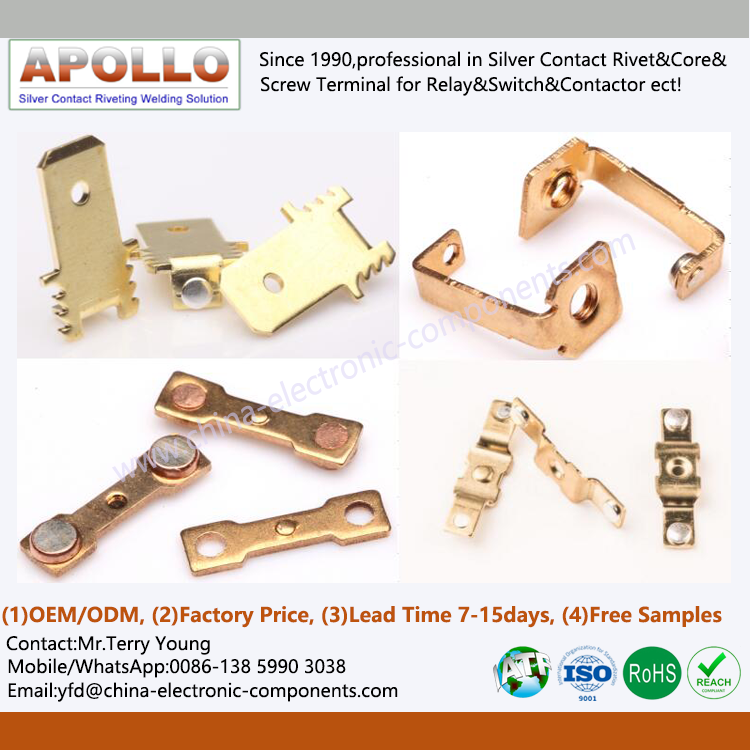

1-Products Name: Electrical Silver Contact and Brass Stamping In-die Riveting Assembly
2-Brand Name: XIAMEN APOLLO
3-Country of Origin: XIAMEN CHINA
4-Contact Material: Pure Silver(99.99%), Fine Silver(AgNi0.15), AgCdO, AgSnO2, AgSnO2In2O3, AgNi, etc

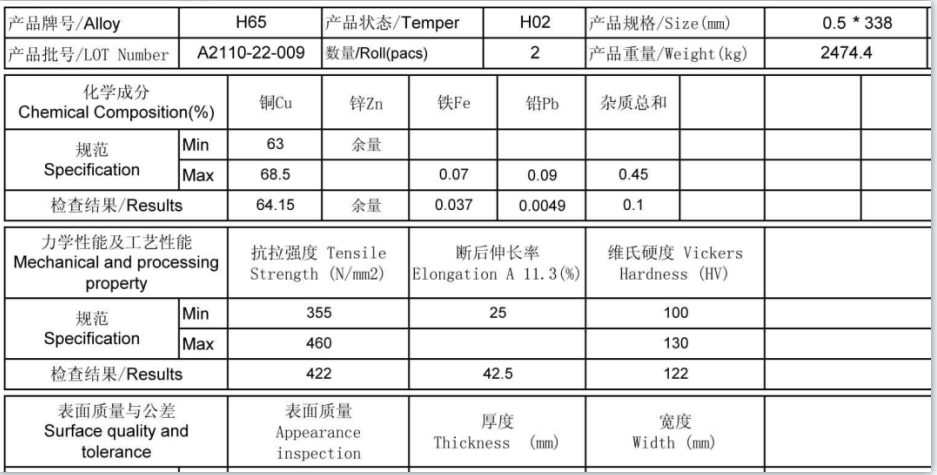

5-Base Material: H59/H62/H65 Brass Stamping Terminal
6-Surface Plating: No plated or as require Silver-plated
7-Riveted Silver Contact Styles: Solid Ag/Cu Contacts,Bimetal Contacts,Trimetal Contacts
8-OEM/ODM: Accepted,need your drawing
9-Free Samples: 10-50pcs is allowed
10-Lead Time: Samples 20-30days,Orders 7-15days
11-Production Capacity: 50,000,000 set/month
12-Packing: Inner plastic bag/box,Outer carton/pallet
13-Payment Item: T/T,L/C by USD/EUR/RMB
14-Quality Standard: ISO9000,IATF16949,RoHS,REACH
15-Application: Relay,Contactor,Switch,Thermostat,Breaker,other High/Low-voltage electrical appliances
Brass Stamping Terminal has very good plasticity (the best among brass) and high strength, good machinability, easy welding, and very stable to general corrosion, but Brass Stamping Part is prone to corrosion cracking; Brass Strip Stamped is copper and Zinc alloy is named after its yellow color.If it is a variety of alloys composed of two or more elements, it is called special brass. Such as copper alloys composed of lead, tin, manganese, nickel, iron, and silicon. Custom Brass Stamping has strong wear resistance. Special brass is also called special brass. It has high strength, high hardness and strong chemical resistance. The mechanical properties of cutting are also outstanding. The seamless copper tube drawn from brass is soft and has strong wear resistance. Brass seamless pipes can be used for heat exchangers and condensers, cryogenic pipelines, and subsea transportation pipes. Manufacture of sheets, bars, bars, pipes, casting parts, etc. The Stamped Brass Terminal content is 62%～68%, the plasticity is strong, and the pressure equipment is manufactured.

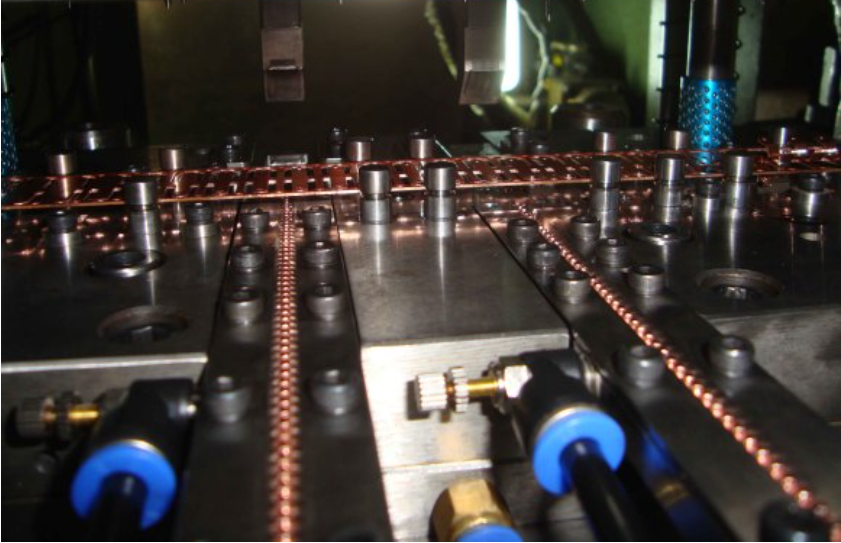

The process steps of in-mold/die/tooling silver contact riveting:
contact progressive die punching brake reed → moving reed pickling → riveting silver contact → moving spring contact assembly bending. Due to the large production volume of this product, in order to improve production efficiency, To stabilize product quality and reduce production costs, the new process route formulated is: progressive die with material to produce moving reed strip → strip cleaning → strip riveting contact and forming.

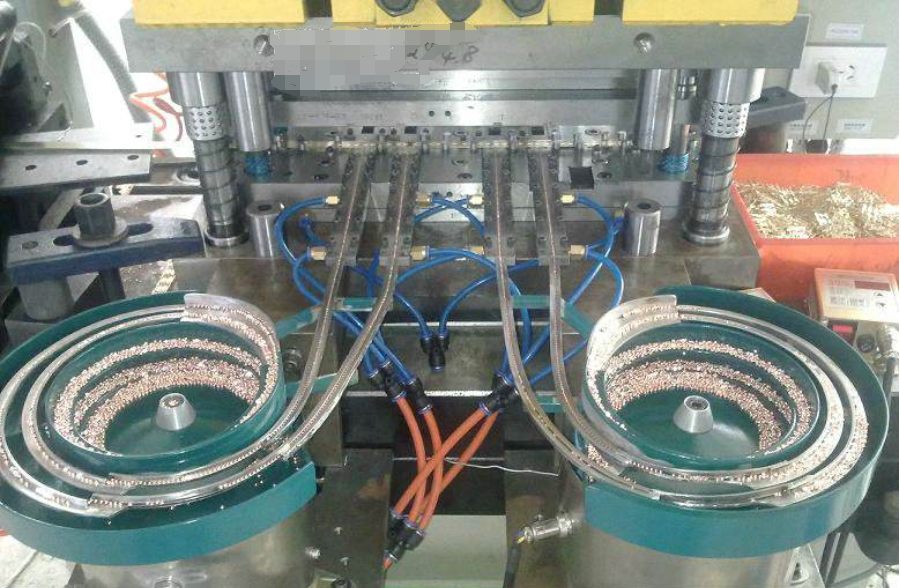

Technical requirements for in-mold silver contact riveting: In order to achieve good in-mold riveting, the machining accuracy of mold parts is extremely high, and high-precision processing equipment such as oil cutting, PG, JG, etc. is required; at the same time, the vibration plate and the mold must be automatically riveted;Moreover, there are very high requirements for the gap and segment difference of the riveted silver contacts and shrapnel.
The utility model has novel structure and convenient operation. The product is directly formed in the mold and the silver contact processing is carried out at the same time. It reduces procedures, reduces labor costs, improves work efficiency, has high practicability, and greatly improves the in-mold silver contact. The use functionality of the point automatic riveting device ensures its use effect and use efficiency, and is suitable for wide promotion.
