1-Tungsten content: ≥99.95%
2-thickness: H0.50mm or more,
3-Diameter: Φ2.00mm-10.00mm,
4-Spherical surface: SR13mm-50mm.
6-High specific gravity alloy: weight 0.02g-200g,
6-Size tolerance: ±0.02mm-±0.06mm,
7-Roughness: ≤0.04um

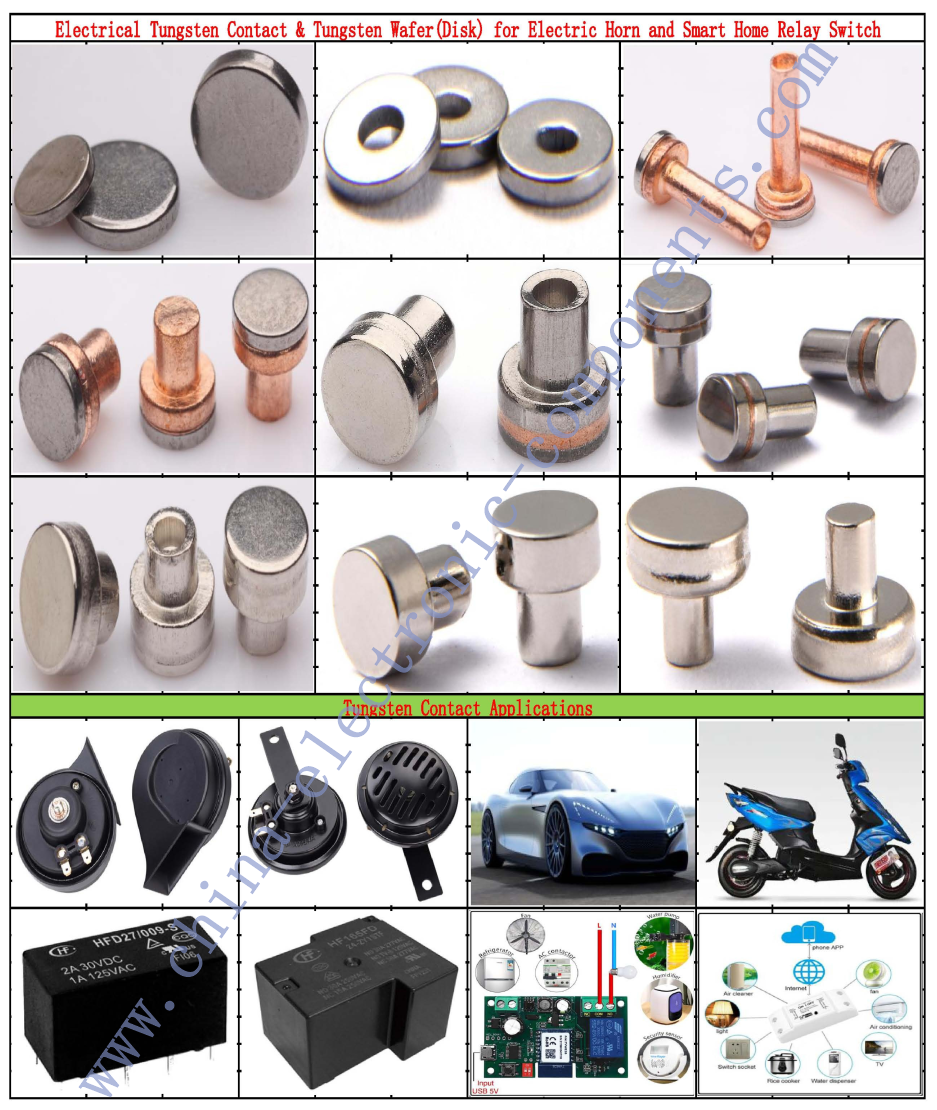

8-Tungsten Contact type: Flat, Radius,Ventilated,Collar,Screw
Copper or Iron Tungsten Contact Rivets Application:
Tungsten point contact is widely used in relays,Electric Horn,Circuit Breaker,AC Contactor,New Energy PV Relay,etc.The term Relay generally refers to a device that provides an electrical connection between two or more points in response to the application of a control signal. The most common and widely used type of electrical relay is the electromechanical relay or EMR.
The relay Tungsten Steel Contact is electrically conductive pieces of metal which touch together completing a circuit and allow the circuit current to flow, just like a switch. When Copper Tungsten Contacts are open the resistance between the contacts is very high in the Mega-Ohms, producing an open circuit condition and no circuit current flows. When the contacts are closed Tungsten Copper Electrical Contact resistance should be zero, a short circuit, but this is not always the case. All relay contacts have a certain amount of "contact resistance" when they are closed and this is called the "On-Resistance", similar to FET's. With a new relay and contacts this ON-resistance will be very small, generally less than 0.2Ω's because the tips are new and clean.
Working principle and failure analysis of Tungsten Contact Car Horn
Tungsten Contact Car electric horns rely on the vibration of metal diaphragms to produce sound. The car electric horn is composed of an iron core, a magnetic coil, a Tungsten Contact Rivet, an armature, and a diaphragm. When the driver presses the horn switch, the current passes through the coil through the Copper Tungsten Contact, the coil generates a magnetic force to attract the armature, forcing the diaphragm to move, the armature moves to disconnect the Tungsten Copper Electrical Contact, the current is interrupted, the magnetic force of the coil disappears, and the diaphragm is elastic and spring. Under the action, it returns to its original position together with the armature, the Tungsten Contact Rivets closure circuit is turned on again, the current flows through the Solid Tungsten Contact Rivets through the coil to generate a magnetic force, and the above actions are repeated. In this way, the diaphragm vibrates continuously, thus making a sound. The soundboard is rigidly connected with the diaphragm, which can make the vibration smooth and sound more pleasant (ie the principle of electromagnet).
Line faults are mainly virtual connections, such as loose horn plug terminals, ablation of Car Horn Tungsten Contact Rivets of horn relays, poor contact of horn switches at the steering wheel, etc. But in many horn failures, especially in winter, the problem is the failure of the horn itself.
Combined with our use environment and other factors, the failure of the speaker itself is mainly due to the following reasons:
1. Pure Tungsten Contact ablation: If you press the horn for a long time, it is easy to cause the Tungsten Point Contact of the horn to ablate and generate impedance, the current flowing through the electromagnetic coil is weakened, and the decrease in electromagnetic suction cannot attract the armature to drive the diaphragm to vibrate normally, resulting in hoarseness or even no sound. . However, when the horn is continuously honked, if the instantaneous strong current passes through the impedance, it can still work normally, so it will be good and bad.
2. The seal is not tight and it is easy to get wet: Although the inside of the horn is airtight, if the air is not tightly sealed when the car washes into the mist or there is water vapor in the air in the interior space, the water vapor can easily cause the Tungsten Steel Contact to get wet and not work properly.
3. Poor contact of electromagnetic coil terminals: Some horn internal electromagnetic coil enameled wire terminal joints are connected by aluminum metal rivet crimping, not reliable welding connection, if the insulating paint on the enameled wire at the end is not clean or the rivet crimping is not reliable, it is easy to produce Virtual connection failure, resulting in poor speaker operation. This kind of failure is due to the quality of the speaker, which cannot be repaired, and can only be replaced with new parts.
