Production range for Pure Tungsten Contact and Tungsten Disk
1-Tungsten content: ≥99.95%
2-thickness: H0.50mm or more,
3-Diameter: Φ2.00mm-10.00mm,
4-Spherical surface: SR13mm-50mm.
6-High specific gravity alloy: weight 0.02g-200g,
6-Size tolerance: ±0.02mm-±0.06mm,
7-Roughness: ≤0.04um
8-Tungsten Contact type: Flat, Radius,Ventilated,Collar,Screw
Xiamen Apollo is now recognized as a leading manufacturer and supplier of Tungsten Electrical Contacts in China. These are primarily used in Automotive Electric Horns, Distributor Contact Breaker Assembly, and Relays etc. Our entire assortment of Tungsten Discs and Tungsten Contact Rivets are manufactured in our factory.

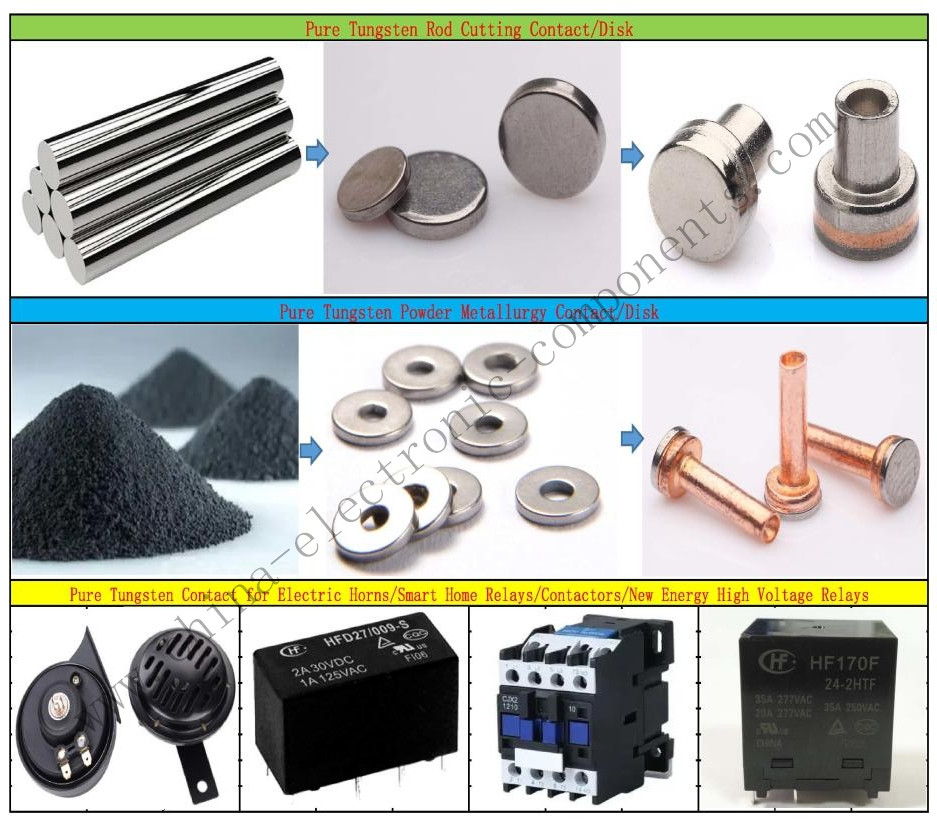

Is there any difference between Tungsten Bar/Rod Slicing Disks and Tungsten Powder Sintering Disks?
The biggest difference between pure tungsten contact and sintered tungsten contact is:
1. Different density 2. Different grain size 3. Different hardness of tungsten sheet. 4. Different production process 5. Different life.
Tungsten Bar/Rod Slicing Disks:
1-Tungsten content: ≥99.95%
2-Density: 19.2 g/cm3
3-Hardness: HV1≥460
4-Grain size: 12000 ps/mm2
5-Process: pure tungsten rod cutting
Tungsten Powder Sintering Disks:
1-Tungsten content: ≥99.95%
2-Density: 18.2g/cm3
3- Hardness: HV1≥325
4- Grain size: 11500 ps/mm2
5- Process: Tungsten powder pressing and sintering
Tungsten Bimetal Contact Point features:
1-The tungsten contact surface is bright and smooth;
2-The grain size is uniform,the fiber is short;
3-The flatness,concentric degree and roundness is good;
4-The hardness is high,the impact toughness is good;
5-The vapor pressure is low,the evaporation rate is small,the thermal expansion coefficient is small,and the arc resistance is good and stable;
6-Very easy to use and Ex-works factory price.
What's the Pure Tungsten Contact and Application ?
Tungsten Rivet or tungsten contact can be made from tungsten rod or tungsten disk.Tungsten point/contacts are for use in high voltage applications, usually where highly repetitive switching is required. Tungsten has a melting temperature of 3,380℃ which gives it excellent arc-erosion resistance.Tungsten may develop troublesome oxide films, especially when used as the anode contact in some DC applications. Therefore, pure tungsten is often used as the cathode contact, and a palladium alloy used as the anode contact. Such a combination also minimizes contact interface resistance and material transfer.
