Production range for Pure Tungsten Contact and Tungsten Disk
1-Tungsten content: ≥99.95%
2-thickness: H0.50mm or more,
3-Diameter: Φ2.00mm-10.00mm,
4-Spherical surface: SR13mm-50mm.
6-High specific gravity alloy: weight 0.02g-200g,
6-Size tolerance: ±0.02mm-±0.06mm,
7-Roughness: ≤0.04um
8-Tungsten Contact type: Flat, Radius,Ventilated,Collar,Screw

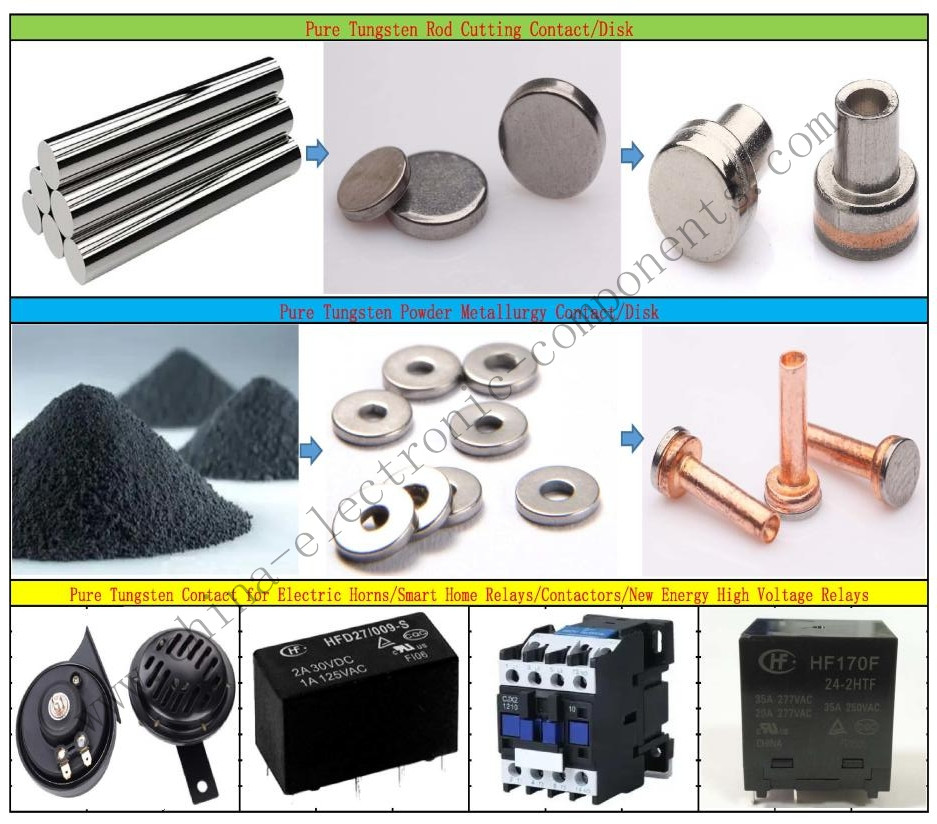

Is there any difference between Tungsten Bar/Rod Slicing Disks and Tungsten Powder Sintering Disks?
The biggest difference between pure tungsten contact and sintered tungsten contact is:
1. Different density 2. Different grain size 3. Different hardness of tungsten sheet. 4. Different production process 5. Different life.
Tungsten Bar/Rod Slicing Disks:
1-Tungsten content: ≥99.95%
2-Density: 19.2 g/cm3
3-Hardness: HV1≥460
4-Grain size: 12000 ps/mm2
5-Process: pure tungsten rod cutting
Tungsten Powder Sintering Disks:
1-Tungsten content: ≥99.95%
2-Density: 18.2g/cm3
3- Hardness: HV1≥325
4- Grain size: 11500 ps/mm2
5- Process: Tungsten powder pressing and sintering
What's the Pure Tungsten Contact and Application ?
Tungsten Rivet or tungsten contact can be made from tungsten rod or tungsten disk.Tungsten point/contacts are for use in high voltage applications, usually where highly repetitive switching is required. Tungsten has a melting temperature of 3,380℃ which gives it excellent arc-erosion resistance.Tungsten may develop troublesome oxide films, especially when used as the anode contact in some DC applications. Therefore, pure tungsten is often used as the cathode contact, and a palladium alloy used as the anode contact. Such a combination also minimizes contact interface resistance and material transfer.

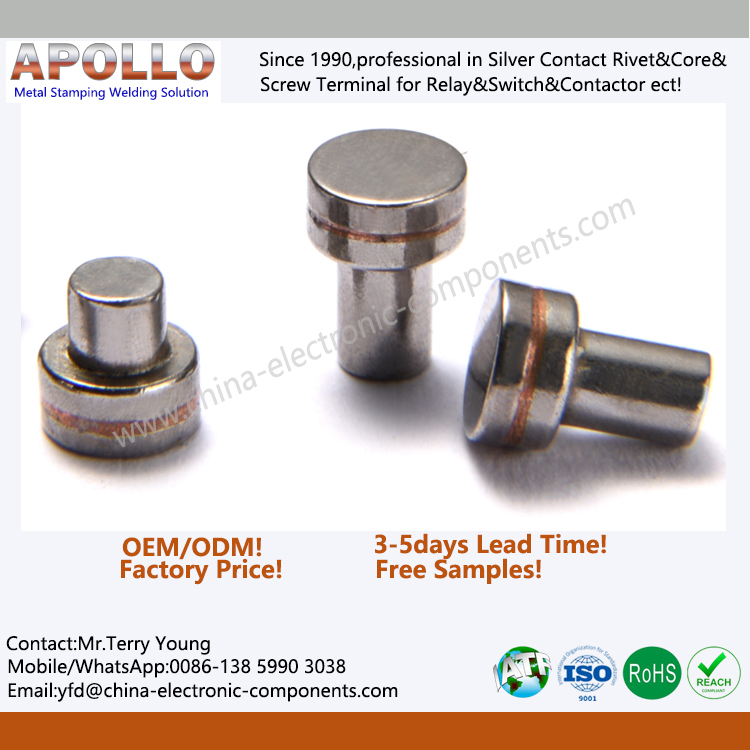

Tungsten contact rivet parameter
1-Processing technology: heat welding for tungsten round coin and copper alloy rivet.
2-Normal contact rivet's head diameter size: Φ1.00mm-15.00mm
3-Main material:W/Cu,W/Iron,etc.
4-Contact shape: rivet type.
5-Surface treatment:nickel plating or no.
6-Weather resistance
7-Easy to install
8-Robust construction
