Production range for Pure Tungsten Contact and Tungsten Disk
1-Tungsten content: ≥99.95%
2-thickness: H0.50mm or more,
3-Diameter: Φ2.00mm-10.00mm,
4-Spherical surface: SR13mm-50mm.
6-High specific gravity alloy: weight 0.02g-200g,
6-Size tolerance: ±0.02mm-±0.06mm,
7-Roughness: ≤0.04um
8-Tungsten Contact type: Flat, Radius,Ventilated,Collar,Screw
Xiamen Apollo is now recognized as a leading manufacturer and supplier of Tungsten Electrical Contacts in China. These are primarily used in Automotive Electric Horns, Distributor Contact Breaker Assembly, and Relays etc. Our entire assortment of Tungsten Discs and Tungsten Contact Rivets are manufactured in our factory.

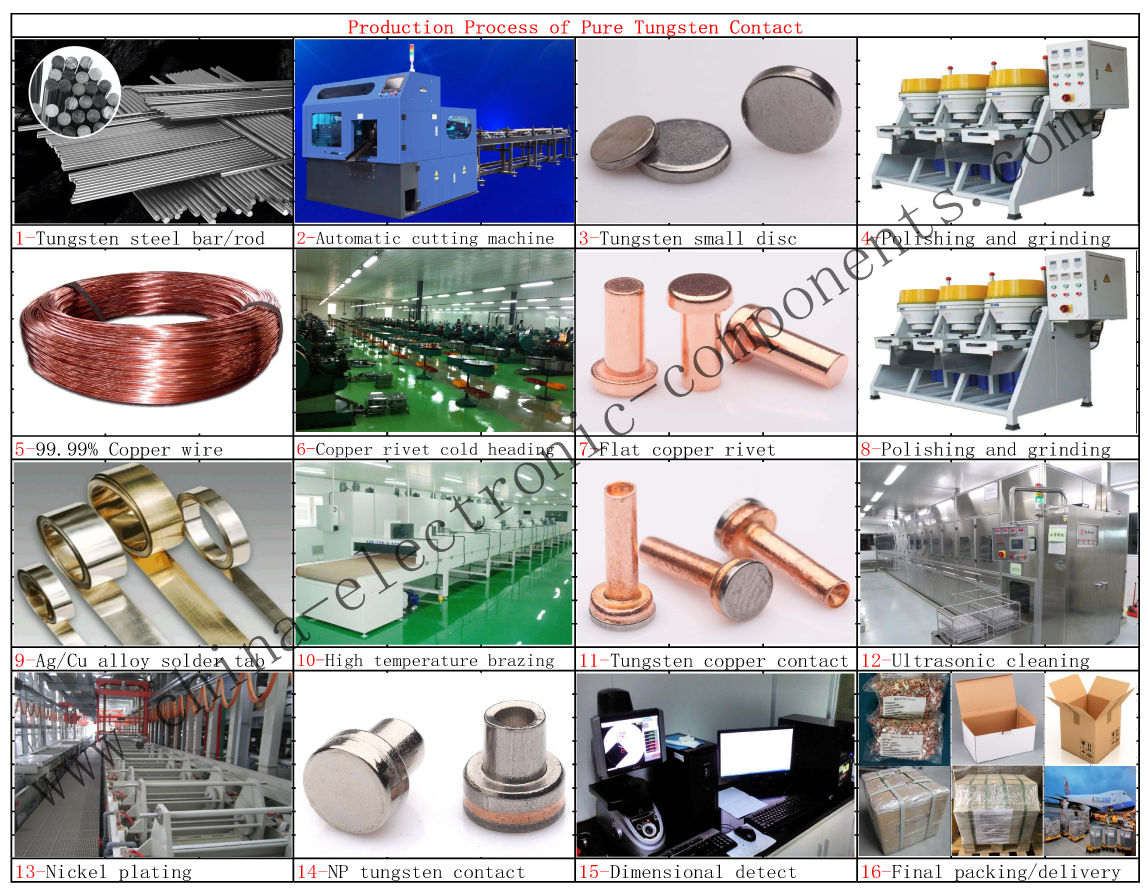

Flat Tungsten Contact Points for Motorcycle Horn are formed by brazing (welding/soldering) tungsten disc with Copper Rivet or Mild Steel Rivet. The Flat Head Rivets are made according to customer specifications and requirements. The Tungsten Copper Electrical Contact are plated by pure nickel to make it corrosion resistant. Tungsten Contact for Motorcycle Horn are widely used in high frequency make and break applications such as automobile horns, relays and distributor point.
Characteristics required by the Tungsten Contact during using:
1. The contact resistance is low and stable;
2. Good welding resistance and complete opening and closing;
3. Good conductivity;
4. The wear resistance is good, and the Tungsten contact surface can’t be changed.
1. Tungsten Contact Rivets Processing Requirements
With the continuous development of the automobile manufacturing industry, the requirements for tungsten contact materials are rapidly increasing. The user's requirements for tungsten contact materials are:
(1)Rod without cracks, scratches, smooth surface;
(2)Fine and uniform cross-section grains, short fibers;
(3)Good straightness, concentricity and roundness;
(4)High hardness, good impact toughness;
(5)Vapor pressure Low evaporation rate, small thermal expansion coefficient;
(6)Good and stable arc resistance.
Physical and mechanical properties of Motorcycle Horn Tungsten Rivet materials In order to meet user requirements, technicians have done a lot of work. For the splitting, brittle fracture, and uneven grain size of the cross-section during the production process of the Solid Tungsten Contact Rivets material, the rod diameter is the same. The reasons why the O degree and flatness can’t meet the requirements are comprehensively analyzed, and a series of measures are taken pertinently.
2. Electrical Tungsten Contact Rivets Material Characteristics
Tungsten is used as electrical contact or contact material, which is resistant to arc ablation; good fusion resistance; metal surface evaporation caused by electrothermal action, less transfer and consumption; strong current interrupting ability; and good wear resistance, dynamic hit performance. Compared with other metal or alloy materials, the price is low, so tungsten contacts and tungsten wafers are widely used in various fields of industry, agriculture, technology and defense.
Solid Tungsten Contact Rivets is characterized by its advantageous properties of high melting and boiling points, sufficient electrical and thermal conductivity and high hardness and density .Industrial Tungsten Brazed Contacts Rivets are mainly used in the form of brazed contact tips for switching duties that require a rapid switching sequence such as Car Horn Tungsten Contact Rivets for cars and trucks.

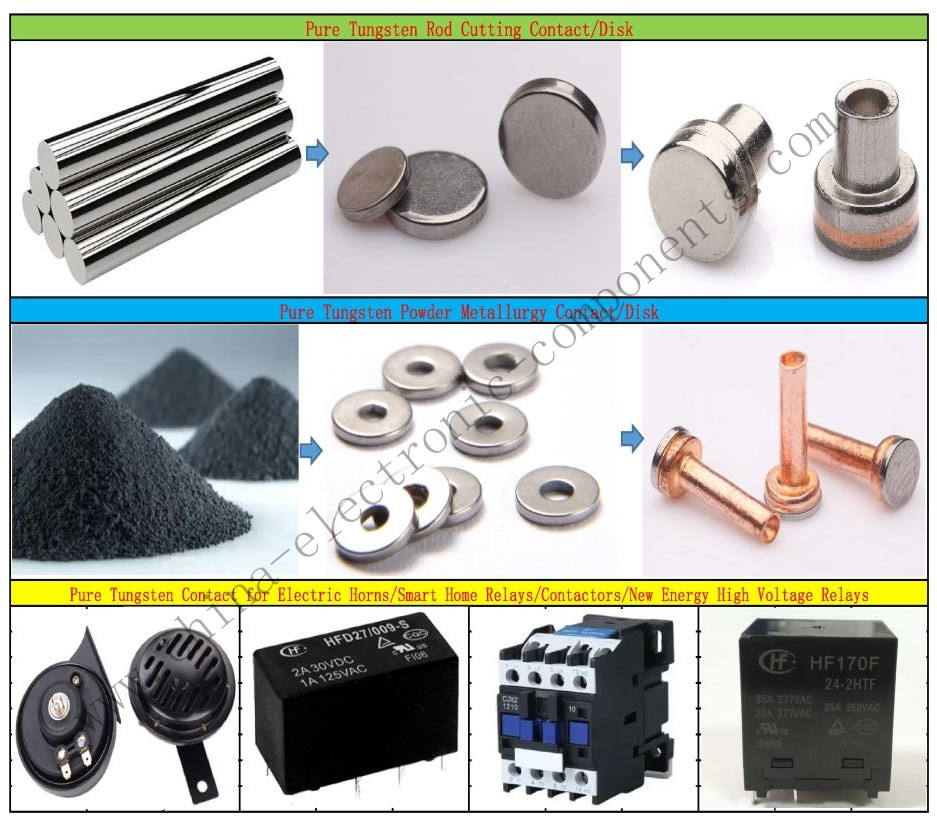

Is there any difference between Tungsten Bar/Rod Slicing Disks and Tungsten Powder Sintering Disks?
The biggest difference between pure tungsten contact and sintered tungsten contact is:
1. Different density 2. Different grain size 3. Different hardness of tungsten sheet. 4. Different production process 5. Different life.
Tungsten Bar/Rod Slicing Disks:
1-Tungsten content: ≥99.95%
2-Density: 19.2 g/cm3
3-Hardness: HV1≥460
4-Grain size: 12000 ps/mm2
5-Process: pure tungsten rod cutting
Tungsten Powder Sintering Disks:
1-Tungsten content: ≥99.95%
2-Density: 18.2g/cm3
3- Hardness: HV1≥325
4- Grain size: 11500 ps/mm2
5- Process: Tungsten powder pressing and sintering
What’s the Tungsten Contacts of Electrical Appliances?
As far as most electrical equipment is concerned, they use high-purity tungsten contacts as contact points, mainly because the Tungsten Contacts for Electrical Appliances have a high melting point, a small evaporation rate, and good electrical and thermal conductivity. Features. Tungsten Point Contact made with metal tungsten have a longer cycle life than conventional contacts, while ensuring good circuit board contact.
At present, common control electrical products such as AC contactors, electromagnetic relays, electrical switches and air switches contain electrical contacts, and Electric contacts are one of the most important components of these products. The reliability and service life of a product largely depend on the contact performance, which is affected by factors such as the contact material, load type, contact pressure, operating frequency, and use environment. When these factors cannot meet the working requirements, there will be problems such as electrochemical corrosion of contacts, welding between contacts, contact wear, and increase in contact resistance, which will lead to unreliable operation, functional failure and even potential safety hazards.
In the energized state, if the current to open the circuit exceeds a certain limit, or if the voltage across the contact gap after disconnection exceeds a certain limit, a yes will occur in the contact gap. Under the action of a strong electric field, the gas between the contacts will discharge, and sparks and strong light will be generated and emitted with the increase of temperature. The arc will corrode the metal surface of the contact, shorten the service life of the electrical appliance, prolong the breaking time of the circuit, and cause the contact of the contact to fail. In severe cases, it can also lead to fire accidents.
Today, in order to further improve the overall quality of electrical equipment contact points, most manufacturers use metal pure tungsten to manufacture electrical contacts.
