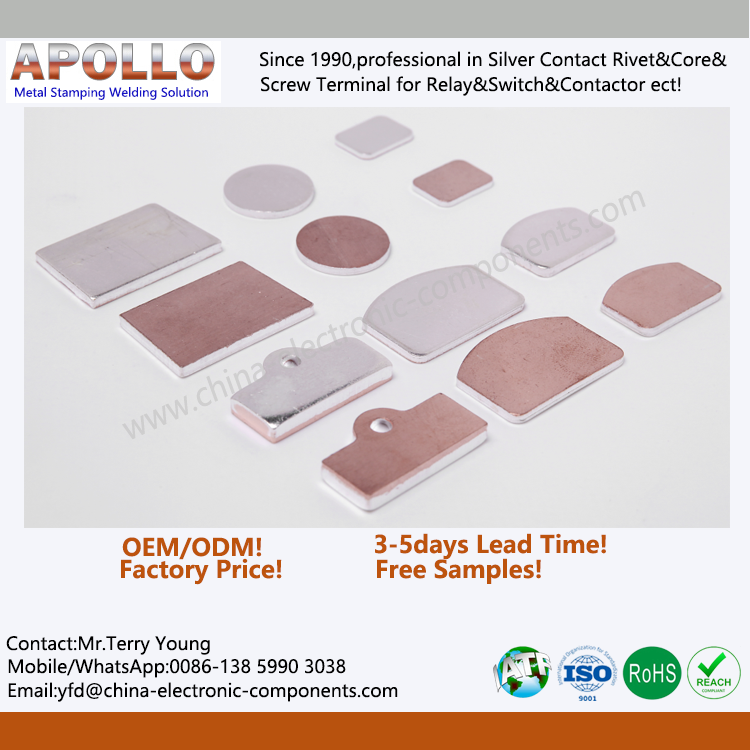

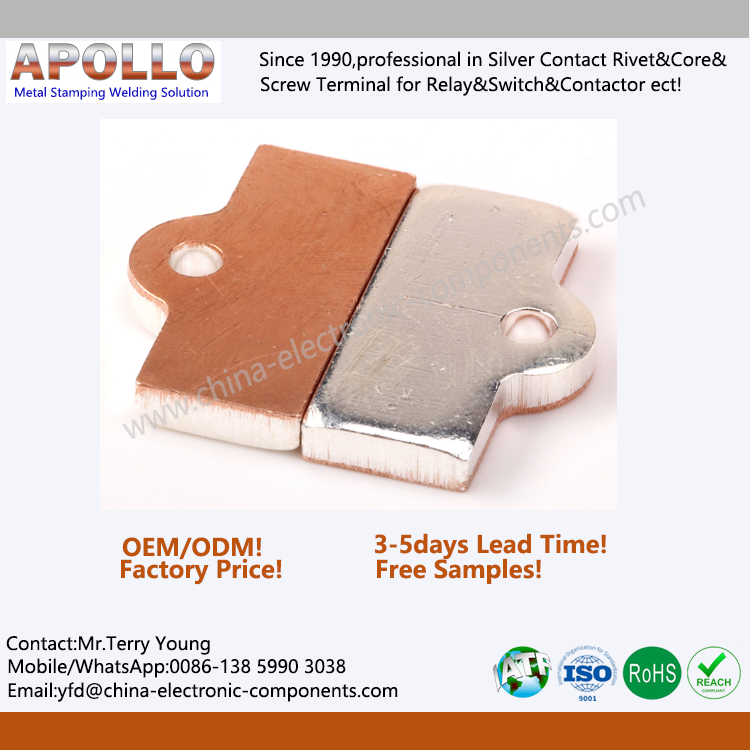

Silver Copper Composite Sheet Features and advantages:
1-Electrical conductivity
2-Good thermal conductivity
3-Oxidation resistance
4-High mechanical strength
5-Low price, saving precious metals
6-Layer Material:Ag,AgNi,AgSnO2,AgSnO2ln2O3,AgCdO,AgZnO,etc,thickness 0.01~1.0mm or as customers’ requires OEM
7-Base Material:Copper,Brass,Steel etc,thickness 1.0~8.0mm as customers’ requires OEM

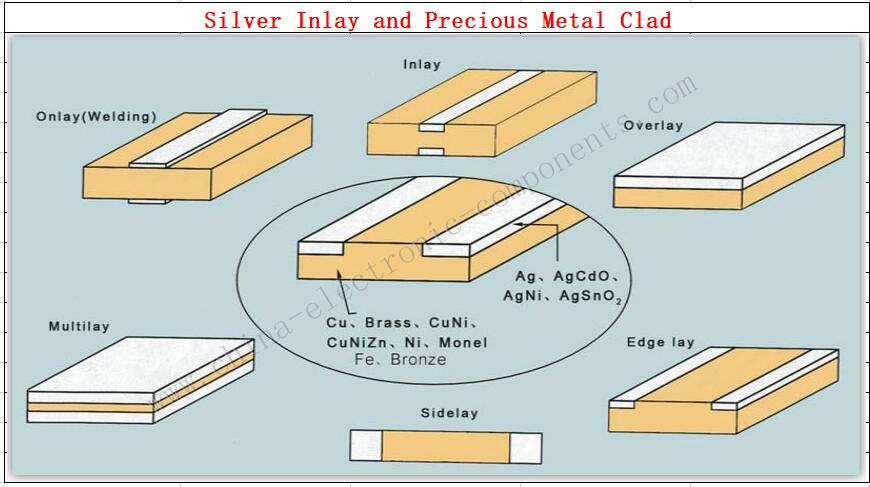

8-Composite Style:Inlay, Double-sided inlay, Full back, Three-layer composite, Side composite

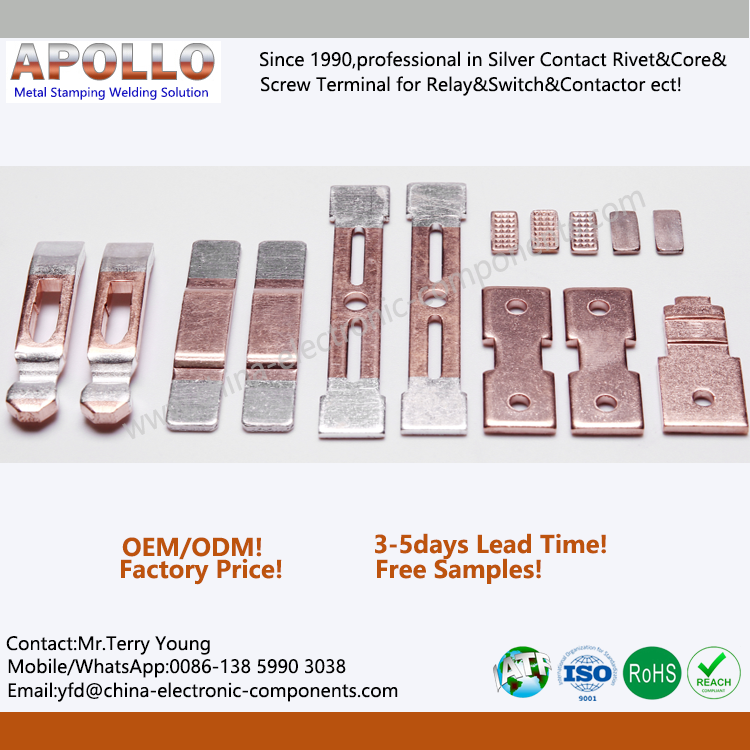

9-AG/Cu Clad Strip application: Touch Switches, Wall Switches, Relays, Circuit Breakers,Contact Bridges,Micromotor Commutators,IC Lead Frames,Thermostats,Sockets,Electronic Components,
Miniature Connectors,and other low-voltage electrical contacts.
Competitive advantages of Copper Silver Alloy Composite Strip:
Silver metal oxide/copper/iron & nickel (AgMeO/Cu/Fe&Ni) three-layer composite strip:
(1)Technical advantages: The project AG/Cu Clad Strip is based on the company’s invention patents for processing and production processes, using high-temperature solid-phase composite rolling production technology, heated to a temperature above the metal recrystallization temperature in a protective atmosphere, and completed under the effect of rolling deformation Rolling and compounding of different metals, with independent core technology, currently there are only a handful of manufacturers capable of producing three-layer metal composite strip, and our Copper/Brass Silver Overlay is a leading position in China;
(2) Product performance advantages: The project product Silver Alloy Strip uses silver metal oxide (AgMeO) instead of the traditional material silver metal cadmium oxide (AgCdO), which combines the excellent electrical properties and oxidation resistance of silver metal oxide and the good physical and mechanical properties of copper. Performance, as well as the excellent welding performance of iron, form a superior comprehensive performance (electrical contact performance and mechanical performance).All technical indicators have reached the company’s design requirements, with excellent performance, and comply with the EU RoHS Directive and my country’s "Administrative Measures for the Prevention and Control of Environmental Pollution by Electronic Wastes". All environmental indicators of the affected exhaust gas, waste water and waste residue meet the requirements of the environmental protection department;
(3) Leading industry level: the project product silver metal oxide/copper/iron & nickel (AgMeO/Cu/Fe&Ni), and break the technological monopoly of foreign counterparts in the production of such materials, and solve the high procurement cost of the majority of users. Long cycle and other issues, while filling the gaps in this domestic technology of Silver Copper Composite Sheet.
Silver Clad Brass Strip, Silver Clad Copper Strip and Silver Onlay Bronze Strip are kind of new functional composite material . It is based on the copper alloy . Precious Metal, silver alloy are cladded on the base metal as inlay or overlay through special bonding process.Copper Silver Alloy Composite Strip is a new technical material ,based on different industry needs, formed by advanced indoor temperature composite technology or Hot Composite Technique; It is rolled with different characteristic material strips composite alloy material characteristic are well preserved ,and the Brass Silver Overlay compound characteristic are very good ,est. AG/Cu Clad Strip electrical character and its wearability are much better than single precious metal contact material (such as gold and silver ). Beside ,it is a saving of precious metal ,keeping low cost and consistency of social development .
Precious Clad Metal is a new technical material, based on different industry needs, formed by advanced indoor temperature composite technology or Hot Composite Technique; Silver Inlay and Precious Metal Clad is rolled with different characteristic material strips composite alloy material and base material strip. Their alloy and base material characteristic are well preserved, and the Mid Inlay Clad Metal compound characteristic are very good, esp. The Silver Copper Alloy Strip electrical character and its wearability are much better than single precious metal contact material (such as gold and silver ) . Beside, It is a saving of precious metal, keeping low cost and consistency of social development.
