1-Layer Material:Ag,AgNi,AgSnO2,AgSnO2ln2O3,AgCdO,AgZnO,etc
2-Base Material:Copper
3-Rivet Style:Trimetal Contact
4-Application: Relays,Circuit Breakers,Switches,Contactor etc.
Our products Trimetal Silver Contacts Features:
1-Trimetal Contacts can save costs 30%-65% than Solid Silver Contacts;
2-Very reliable mechanical strength for both sides composite materials,like Solid Contacts;
3-The silver layers on the head and foot are accurately distributed to ensure the contacts gap after riveted with stamped terminal;
4-Surface anti-oxidation protective film, can resist oxidation for a long time;
5-High dimensional accuracy ±0.01-0.02mm;
6-Strong corrosion resistance;
7-Good electrical conductivity.

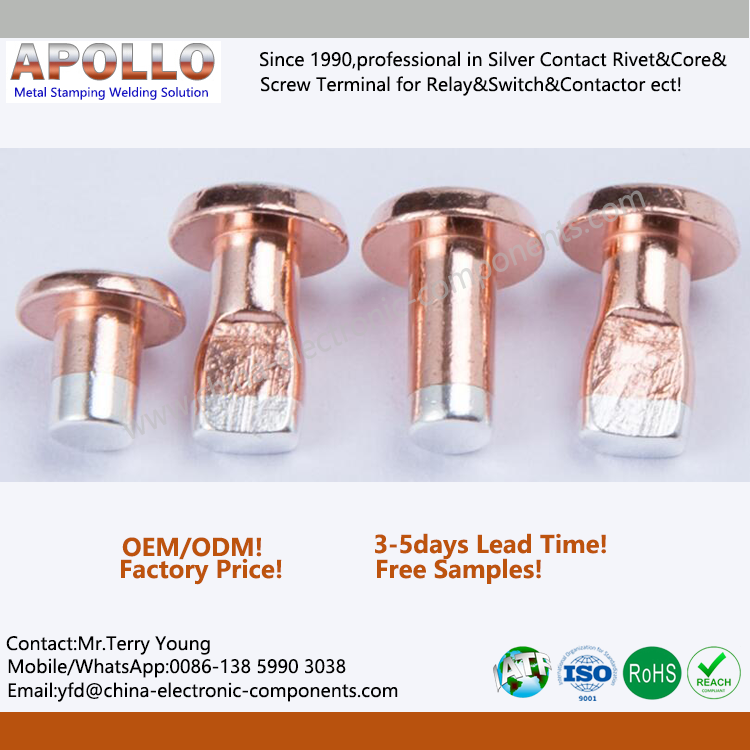

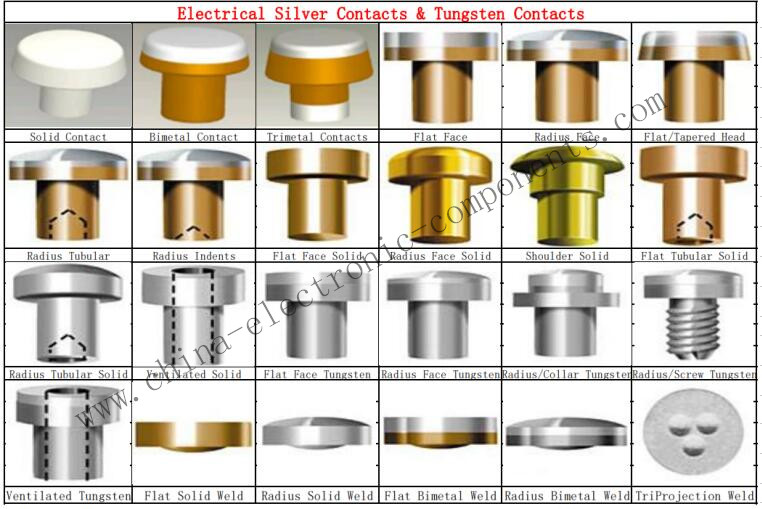

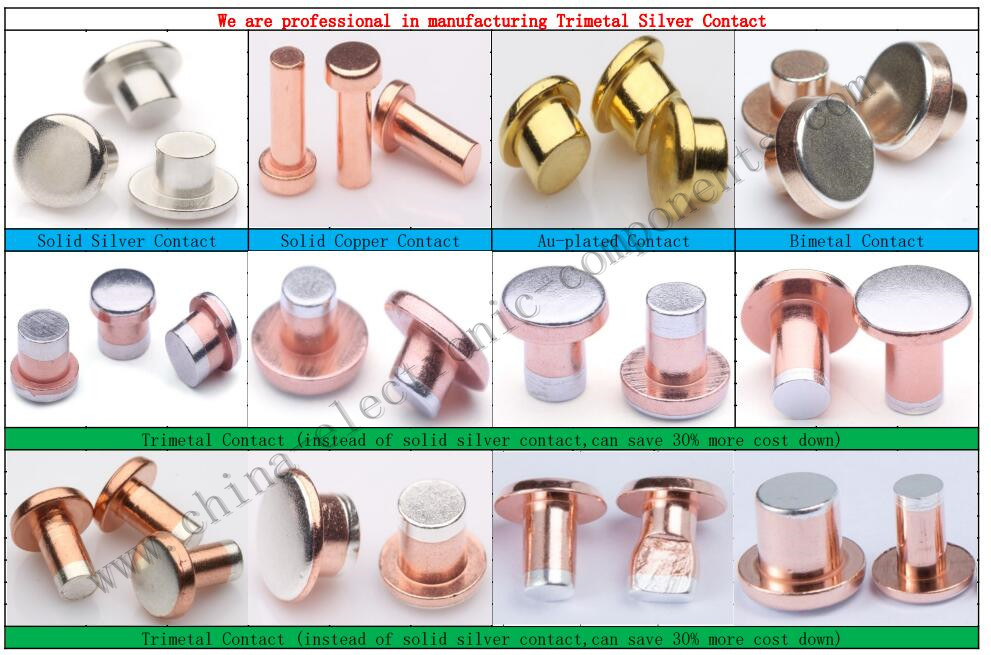

The Tri Metal Contact Rivets are contacts composed of two or three materials. Generally, the head is covered with silver (silver alloy), the base is copper, and the feet are also covered with a layer of silver (silver alloy). , This process is slowly becoming popular internationally and is a good cost-saving method; the spot welding type Three Compound Contacts are also a contact composed of two or three materials. The common one is a layer of silver (silver alloy ), the middle layer is copper, and the bottom layer is iron (or iron plated with nickel or Monel alloy).
There are many factors that affect Electrical Contacts resistance. In order to facilitate a systematic grasp, the main factors will be reviewed here.
1. Electrical Contact Rivet materials (including surface coating materials)
In order to prevent cold welding of the contacts, it is necessary to use Silver Coated Electrical Contacts materials with higher hardness, such as rhodium/gold-cobalt alloys. However, in order to obtain low contact resistance and improve contact performance, the hardness of the material should not be too high. Therefore, it should be selected according to actual needs. The chemical stability of the material of Silver Electronic Contact should be good, the anti-pollution, corrosion resistance, and oxidation resistance should be strong, the conductivity of the material should be good, and the resistivity should be low to meet the requirements of small and stable contact resistance.
2. Silver Contact Points pollution
Pollutants include dust, moisture, fibers, organic gas liquids, etc., come from the surrounding environment, processing technology, and the structural materials of the relay itself (such as insulating materials). Pollution is an important factor affecting Silver Electrical Contacts resistance, which will produce larger membrane resistance. And chemical corrosion, increase contact resistance and reduce life span. Therefore, clean production and ultra-clean production are required to reduce pollution. The use of full sealing technology or contact system, electromagnetic system separate sealing technology is one of the anti-pollution measures.
3. Electrical Contacts temperature
The increase in the surface temperature of the Oxidized Electrical Contact (including the increase in the ambient temperature and the temperature of the State or Moving Silver Contact itself) will cause the surface condition and Silver Alloy Electrical Contact Rivets area to change. When the Electrical Silver Contacts pressure is constant, the temperature rise will increase the resistance, so the Silver Contact Rivet resistance will increase. When the temperature rises to a certain level, the Point Contact will be softened, the Contact Point area will increase, and the Silver Contact Rivet resistance will decrease. In addition, the increase in temperature will aggravate the oxidation and chemical corrosion of the Cold Headed Bimetal Contacts metal, which is not conducive to the stability and reliability of the work. Measures to improve heat dissipation conditions include: filling high-pressure gas or blackening the cover.
