1-Layer Material:Ag,AgNi,AgSnO2,AgSnO2ln2O3,AgCdO,AgZnO,etc
2-Base Material:Copper,CuNi,Fe
3-Application: Relays,Micro Switches,Thermostats,Buttons,Temperature Controllers,Circuit Breakers etc.

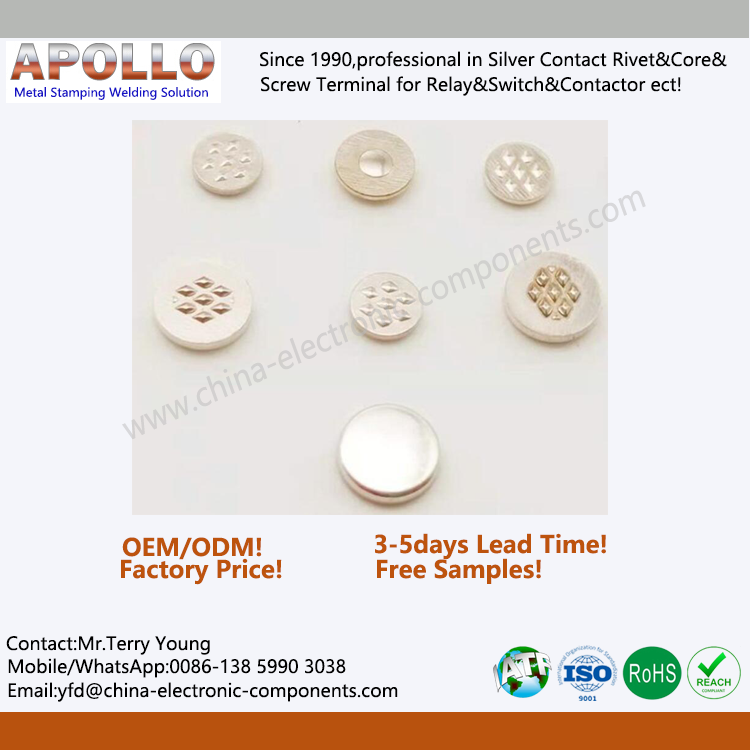

The plum-shaped diamond contact is composed of three layers of metal. The working surface material is silver, fine-grained silver, silver nickel, silver tin oxide, silver tin oxide indium oxide, silver copper, silver zinc oxide, silver cadmium oxide, etc. The welding surface materials are CuNi, Fe, etc., such as fine-grained silver/copper/iron; silver nickel/copper/iron; silver tin oxide/copper/iron, etc. The welding surface is made of cold-rolled low-carbon steel or copper-nickel alloy with good welding performance, and is equipped with 5-7 plum or diamond points to fully ensure that the contact and the bimetal are welded firmly. It is widely used in relays, micro switches, thermostats, buttons, temperature controllers and circuit breakers.
Shaped Plum Contact Features:
1-The welding surface of the three-layer composite electric plum diamond contact is made of pure iron material with small bumps to increase the welding performance, which can make the electric contact and the bimetallic sheet and the stainless steel sheet and other iron-based alloys weld firmly.
2-The welding part is joined by molten metal, and the Special Electric Contact electrical stability is better than that of riveted contacts, and the positioning is good, and the welding is beautiful. If the riveting method is used, the bimetal is deformed due to the over-tight riveting, and the system resistance is increased due to the loose riveting. Will cause errors in the thermostat.
3-Compared with brazed silver contacts, the heating time is shorter and the working environment is clean. It is suitable for the joining and processing of small parts, especially for the occasions of micro-mechanism.
For three-metal composite contacts, different silver alloy materials can be selected according to the size of the electrical current passing through. It is suitable for pulse welding and contact bridge connection. It can prepare electrical contact parts and bimetal contact bridges. It is widely used in relays and micro switches. , Temperature controller, buttons, temperature controller and circuit breaker protector.
