2-Base Material:Copper

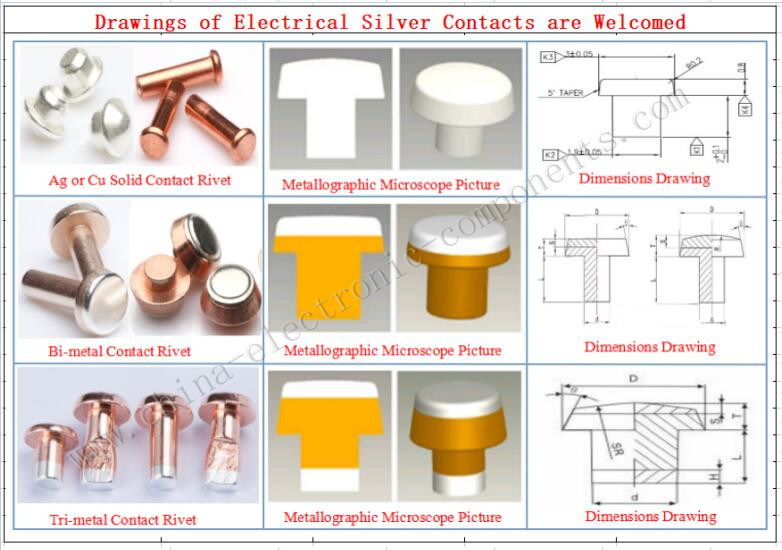

3-Rivet Style:Copper Solid Contact,Bimetal Contact,Trimetal Contact

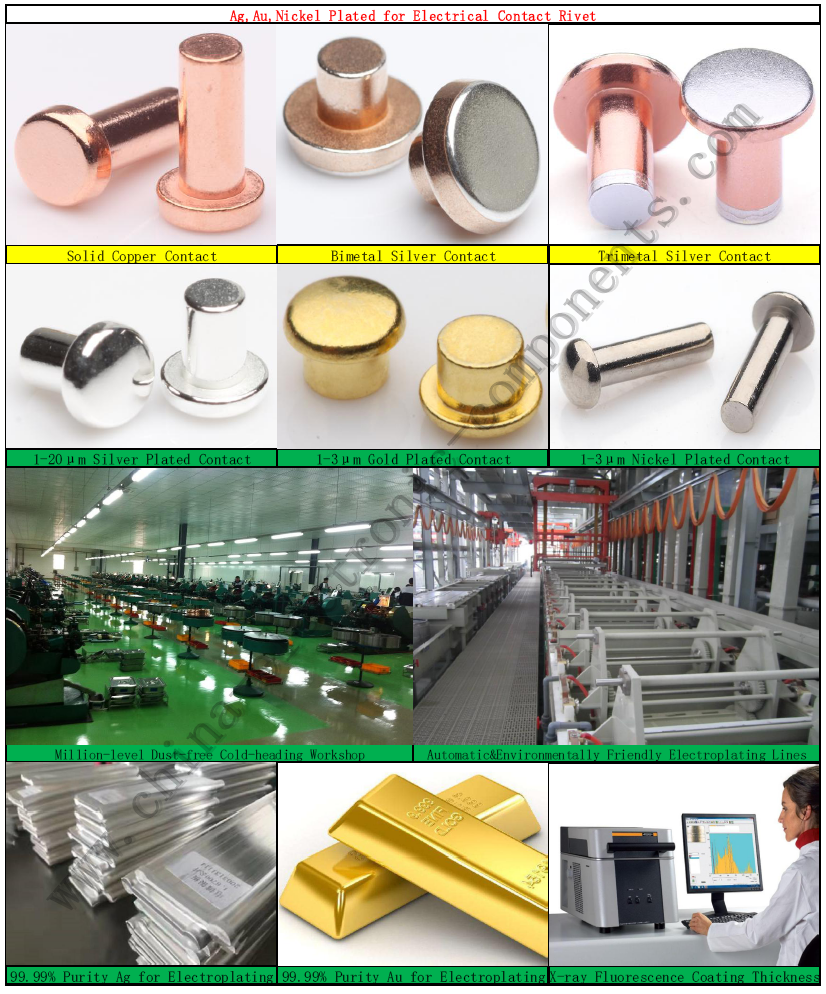

4-Surface Plating:Usually Silver-plated 1-20μm,Gold-plated and Nickel-plated 1-3μm,all as your requires
5-Application: Relays,Circuit Breakers,Switches,Contactor etc.
Gold Flash Plating Contacts is a method of depositing a thin layer of gold onto the surface of another metal, most often copper or silver (to make silver-gilt), by chemical or electrochemical plating. This article covers plating methods used in the modern electronics industry; for more traditional methods, often used for much larger objects, see gilding.
Why are some Electrical Contacts Gold Plated?
Gold is really expensive. Why then would anyone bother to plate silver contacts with gold? Does it have some unique electrical characteristics that make it useful? Electrical Contacts Gold Plated provide reliable switching when the wetting current is low, because there is no oxide to breach for electrical contact to occur. Ex: a pushbutton switch used to signal a microcontroller digital input has a pullup resistor sized to flow 50 uA when the switch is closed. A switch without gold plating might not be reliable.
Gold Plated Contacts Coating thickness test methods
Coating thickness test detects the thickness of metal and oxide coatings on the surface of the material. The detection methods are
1-Metallographic method
2-Coulometric method
3-X-ray method.
1-Silver Contacts Gold Plated Metallographic method:
A metallurgical microscope is used to examine the cross section to measure the local thickness of the metal covering layer and oxide film layer. Generally, the thickness detection needs to be greater than 1um to ensure that the measurement result is within the error range; the greater the thickness, the smaller the error.
2-Silver Contacts Gold Plated Coulometric method:
It is suitable for measuring the thickness of single-layer and multi-layer metal coatings by anodic dissolution coulometric method, including measuring the thickness of multi-layer systems, such as Cu/Ni/Cr and alloy coatings and alloyed diffusion layers. It can not only measure the thickness of the covering layer of flat samples, but also measure the thickness of the covering layer of cylindrical and wire rods. It is especially suitable for measuring the metal of multilayer nickel plating and its potential difference. The types of coatings measured are Au, Ag, Zn, Cu, Ni, dNi, Cr.
3-Silver Contacts Gold Plated X-ray method:
It is suitable for measuring the thickness of the metal covering layer that needs to be analyzed in the electroplating and electronic circuit board industries. Including: gold (Au), silver (Ag), tin (Sn), copper (Cu), nickel (Ni), chromium (Cr) and other metal element thickness.
