1-Trimetal Contacts can save costs 30%-65% than Solid Silver Contacts;
2-Very reliable mechanical strength for both sides composite materials,like Solid Contacts;
3-The silver layers on the head and foot are accurately distributed to ensure the contacts gap after riveted with stamped terminal;
4-Surface anti-oxidation protective film, can resist oxidation for a long time;
5-High dimensional accuracy ±0.01-0.02mm;
6-Strong corrosion resistance;
7-Good electrical conductivity.
In order to overcome the shortcomings in the prior art, the purpose of the present invention is to provide Tri Metal Contacts and a manufacturing device for the triple composite contact. The triple composite contact has a simple structure, good strength, hardness, welding resistance and arc burn resistance. The device for manufacturing the Trimetal Rivet Contacts can directly cut the raw material and can be directly cold-headed, which is convenient to use and low in cost. High efficiency, effectively ensuring the strength and hardness of the contacts, and a wide range of applications.

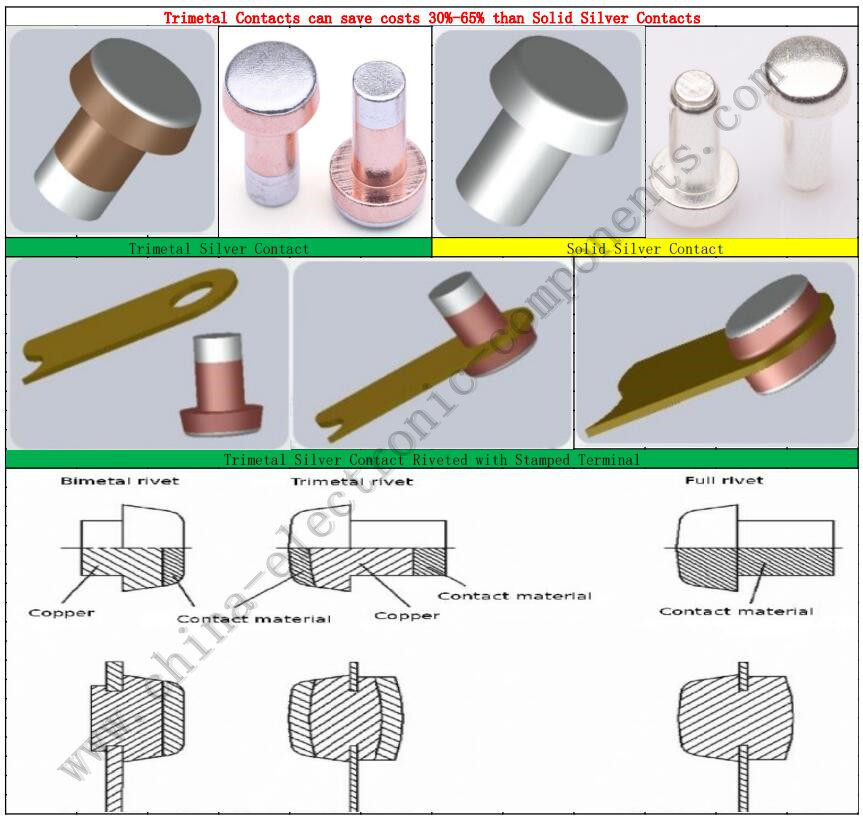

Trimetal Moving Contacts, comprising a copper base layer and a silver alloy layer, the top of the copper base layer is provided with a cylindrical foot, the silver alloy layer includes a top silver alloy layer and a bottom silver alloy layer, the top silver alloy layer It is a ring structure, the inner ring part is sleeved on the cylindrical foot; the bottom silver alloy layer is fixed on the bottom of the copper base layer; the top and bottom are made of silver alloy layer materials.So the Double Side Contacts are made by special cold-heading machines.
Tri-metal Rivet Contacts are normally used as double sides contacts,mainly used in Relays, Micro Switches,Button Switches and Contactors,etc.Trimetal Material have Ag/Cu/Ag,AgNi/Cu/AgNi,AgCdO/Cu/AgCdO,AgZnO/Cu/AgZnO, AgSnO2/Cu/AgSnO2,AgSnO2In2O3/Cu/AgSnO2In2O3 and so on.Available with us is a range of Contact Rivets. Trimetal Electrical Contacts are manufactured with wire by cold heading process. This helps in making the shank soft for easy riveting and the head is work-hardened. The length of the shank can be varied but the diameter of Trimetal Contact Rivets is needed to be in right proportion to the size of head. This enables us to avoid wrinkles during cold forging operation. These economically priced Composite Contact Rivets can be manufactured in various dimensions. The limit to the dimension of Multi-layer Silver Contacts is due to the requisite ratio between head diameter to head thickness.

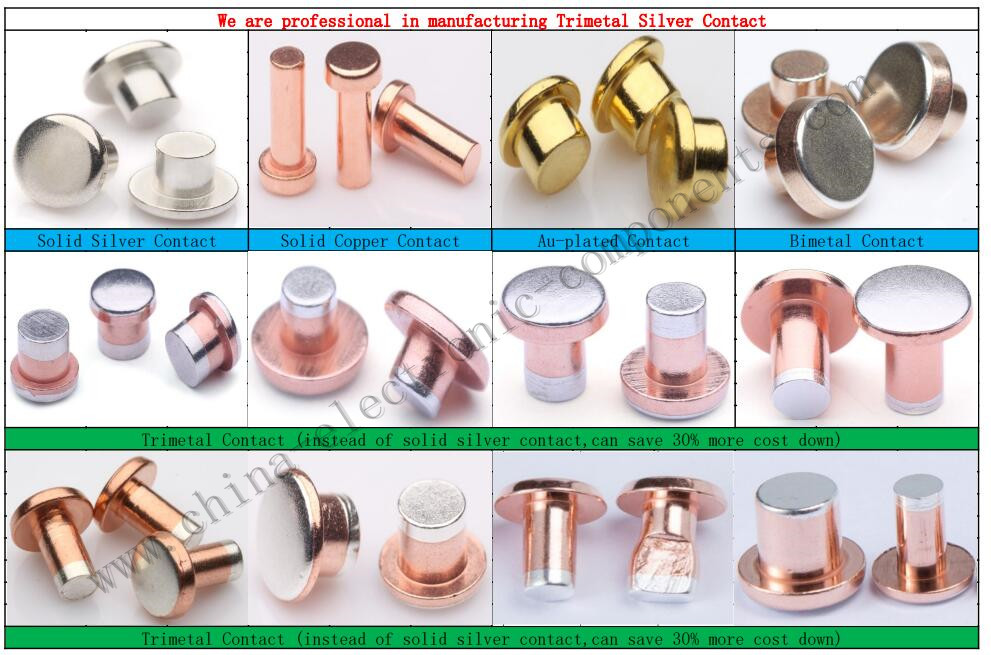

The Tri Metal Contact Rivets are contacts composed of two or three materials. Generally, the head is covered with silver (silver alloy), the base is copper, and the feet are also covered with a layer of silver (silver alloy). , This process is slowly becoming popular internationally and is a good cost-saving method; the spot welding type Three Compound Contacts are also a contact composed of two or three materials. The common one is a layer of silver (silver alloy ), the middle layer is copper, and the bottom layer is iron (or iron plated with nickel or Monel alloy).
