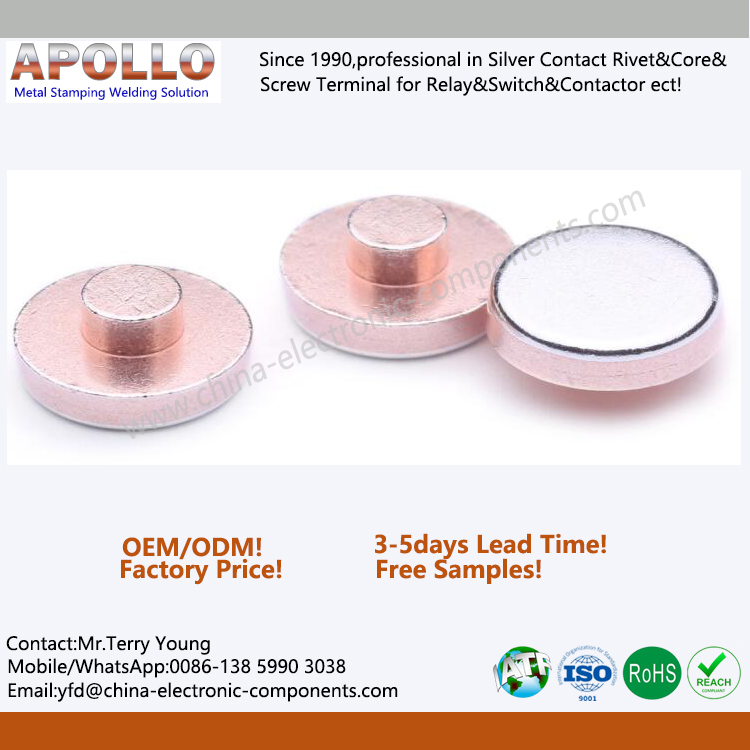

We are engaged in manufacturing an engineered range of Electric Rivets and Electrical Contacts that include Solid Electrical Contact Rivets, Bimetal Electrical Contact, Bi-metal & Solid Silver Tips, Tri-metal Electrical Contact, Copper & Brass Rivets,Brass Contact Bracket,Welding Contact Tip,Riveting Electronic Component,etc.Silver Electrical contact mainly usedsmall and medium-sized current contactor, starter, temperature controller, switches, relay etc. undercurrent contact devices, micro switches and precision instruments.
The process of In-die Riveting Silver Contacts
(also take the dynamic spring assembly in the T73 Relay model as an example),
1.The stamping plant produces the armature; 2. The stamping plant directly completes the production of the movable reed assembly by using the Silver Electrical Contacts through the in-die riveting process;
2.Customers only need to provide Oxidized Electrical Contact to the stamping factory; in this whole process, only two toolings are needed: a armature mold, b riveting mold in the movable reed mold (that is, the production of the movable reed and the armature, contact all the riveting is done in this mold). In terms of production efficiency, the speed of this process can be stably controlled between 200 times and 400 times (per minute). If we calculate 300 times per minute, we can achieve the production of 18,000 moving reed components in one hour, 6 hours a day Can reach the output of 100,000 pcs Electrical Contact Stamping Assembly.
More importantly, the riveting process of the client is directly cancelled here, which saves manpower and shortens the process to: it can only be completed in the production workshop of the stamping plant. And the movable reed assembly produced by the in-die riveting Stamping Electrical Contacts process, when assembled into the T73 Relay finished product, the adjustment-free rate can reach 80%-85%, which greatly improves the quality and output of the customer's finished product Electrical Stamping Contact Components. Through the improvement of this technology, we found that the customer's monthly output has increased from 1.5 million finished products to the current monthly output of 5.1 million finished products, which is a full increase of more than three times!
The competitive advantage brought by technological advancement is obvious. In addition to the rising labor costs in the manufacturing industry, more and more relay assembly manufacturers have begun to invest or update automated production lines, and higher requirements are placed on supporting stamping parts suppliers. , In-die Silver Contact Riveting technology has played an active role in this key component.
