Why Choose Our products Contact Point:
1-Exworks factory price
2-Reliable and safe depend on group companies
3-Professional and focus for 20+ years
4-Technical services by 24h and 365days
The process of In-die Riveting Silver Contacts
(also take the dynamic spring assembly in the T73 Relay model as an example),
1.The stamping plant produces the armature; 2. The stamping plant directly completes the production of the movable reed assembly by using the Silver Electrical Contacts through the in-die riveting process;
2.Customers only need to provide Oxidized Electrical Contact to the stamping factory; in this whole process, only two toolings are needed: a armature mold, b riveting mold in the movable reed mold (that is, the production of the movable reed and the armature, contact all the riveting is done in this mold). In terms of production efficiency, the speed of this process can be stably controlled between 200 times and 400 times (per minute). If we calculate 300 times per minute, we can achieve the production of 18,000 moving reed components in one hour, 6 hours a day Can reach the output of 100,000 pcs Electrical Contact Stamping Assembly.
More importantly, the riveting process of the client is directly cancelled here, which saves manpower and shortens the process to: it can only be completed in the production workshop of the stamping plant. And the movable reed assembly produced by the in-die riveting Stamping Electrical Contacts process, when assembled into the T73 Relay finished product, the adjustment-free rate can reach 80%-85%, which greatly improves the quality and output of the customer's finished product Electrical Stamping Contact Components. Through the improvement of this technology, we found that the customer's monthly output has increased from 1.5 million finished products to the current monthly output of 5.1 million finished products, which is a full increase of more than three times!
The competitive advantage brought by technological advancement is obvious. In addition to the rising labor costs in the manufacturing industry, more and more relay assembly manufacturers have begun to invest or update automated production lines, and higher requirements are placed on supporting stamping parts suppliers. , In-die Silver Contact Riveting technology has played an active role in this key component.
Silver Electrical Contacts refer to the electronic appliances when opening and closing, separation and mutual contact of intersections, because the metal conductor terminals at the instant of the contact prone to moments of fever and spark, prompting them to Silver Contact Point in the process of using multiple frequency, prone to oxidation and electrolysis, so will increasing the thickness of the Bimetal Contact Rivets, or manufactured polymer metal (copper and multiple) with different material, so will called Bimetal Rivet Contact.
Contact Information:
Mr.Terry Young (Sales Manager)
Apollo Electronic Components (Xiamen) Co.,Ltd
Xiamen Apollo Stamping Welding Technology Co., Ltd
Add:225#,Jinshang Road,Huli District,Xiamen City,Fujian Province,China,361009
Tel&Fax: 0592-5765084, Mob/WhatsApp/WeChat: 0086-13859903038 ,QQ: 1260358661
Email: yfd@china-electronic-components.com
Web: www.china-electronic-components.com , www.stamping-welding.com

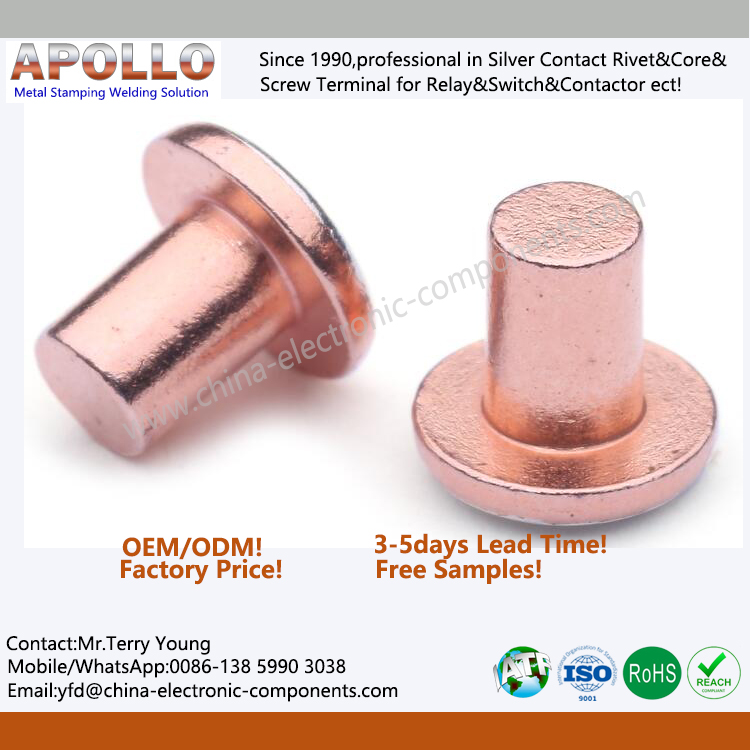

Since 1990,professional in Silver Contact Rivet&Core&Screw Terminal for Relay&Switch&Contactor ect Stamping&Welding solutions !
