Our products Steps Silver Contacts for Bistable Power Latching Relay Features:
1-Special step silver layer design can save 30% Ag material cost
2-The contact resistance is low and stable
3-Good welding resistance and thorough opening and closing
4-Good conductivity
5-Good abrasion resistance,the contact surface not changed
6-Not easy to oxidize for a long time

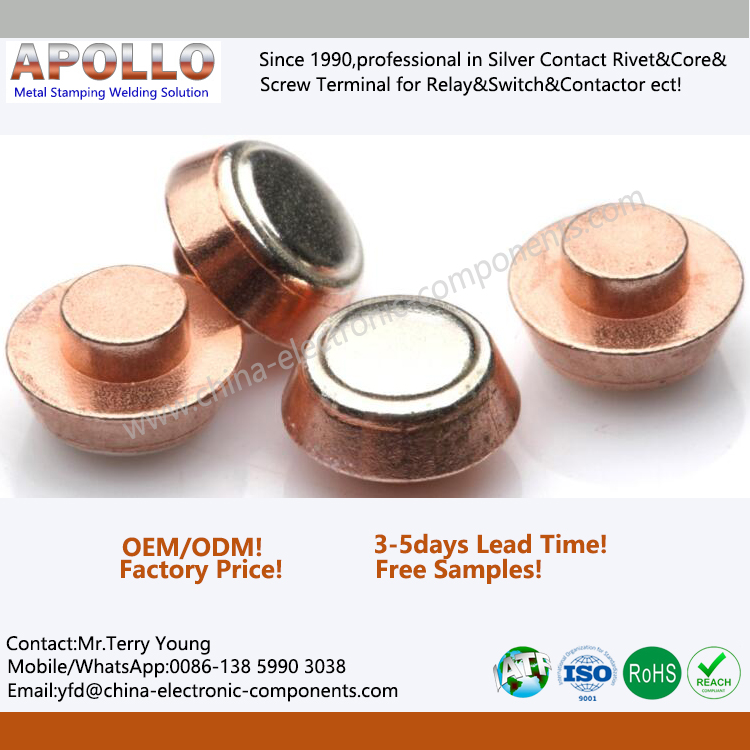

In Bimetal Contact,a layer of silver alloy forms the Bimetal Contact Rivets surface. The rest of the head and the shank are made of copper.Bimetal Rivet Contacts surface layer and backing metal are bonded metallurgically. This ensures the electrical and mechanical properties of Bimetal Contacts Ag/Cu are as good as solid silver contacts.Electrolytic Copper provides better thermal and electrical conductivity then silver alloy and copper shank in Bimetal Electronic Contacts ensure longer life.
Magnetic Latching Relay is a new type of relay developed in recent years, and it is also an automatic switch. Like other electromagnetic relays, it automatically turns on and off the circuit. The difference is that the normally closed or normally open state of the Electronic Latching Relay is completely dependent on the action of permanent magnets, and the switching state of the Miniature Magnetic Latching Relay is triggered by a pulse electric signal of a certain width.
Energy Meter Latching Relays are divided into single-phase two-phase and three-phase Latching Relays. According to relevant information, the maximum contact switching current of magnetic latching relays on the market can reach 150A; the control coil voltage is divided into DC9V, DC12V, etc. The life of general electrical appliances is 10,000 times; the mechanical life is 1,000,000 times; the contact voltage drop is less than 100mV. Therefore, Miniature High-Power Latching Relay has the characteristics of power saving, stable performance, small size, large carrying capacity, and superior performance than general electromagnetic relays.
Magnetic Latching Relay is an automatic switching element with isolation function, which is widely used in remote control,telemetry,communication,automatic control,mechatronics and power electronic equipment, and is one of the most important control elements.
Power Latching Relays generally have an induction mechanism (input part) that can reflect certain input variables (such as current, voltage, power, impedance, frequency, temperature, pressure, speed, light, etc.); The actuator (output part) of "off" control; between the input part and output part of the Smart Meter Relay, there is also an intermediate mechanism (drive part) for coupling and isolating the input, functional processing and driving the output part.
Contact Information:
Mr.Terry Young (Sales Manager)
Apollo Electronic Components (Xiamen) Co.,Ltd
Xiamen Apollo Stamping Welding Technology Co., Ltd
Add:225#,Jinshang Road,Huli District,Xiamen City,Fujian Province,China,361009
Tel&Fax: 0592-5765084, Mob/WhatsApp/WeChat: 0086-13859903038 ,QQ: 1260358661
Email: yfd@china-electronic-components.com
Web: www.china-electronic-components.com , www.stamping-welding.com
Since 1990,professional in Silver Contact Rivet&Core&Screw Terminal for Relay&Switch&Contactor ect Stamping&Welding solutions !
