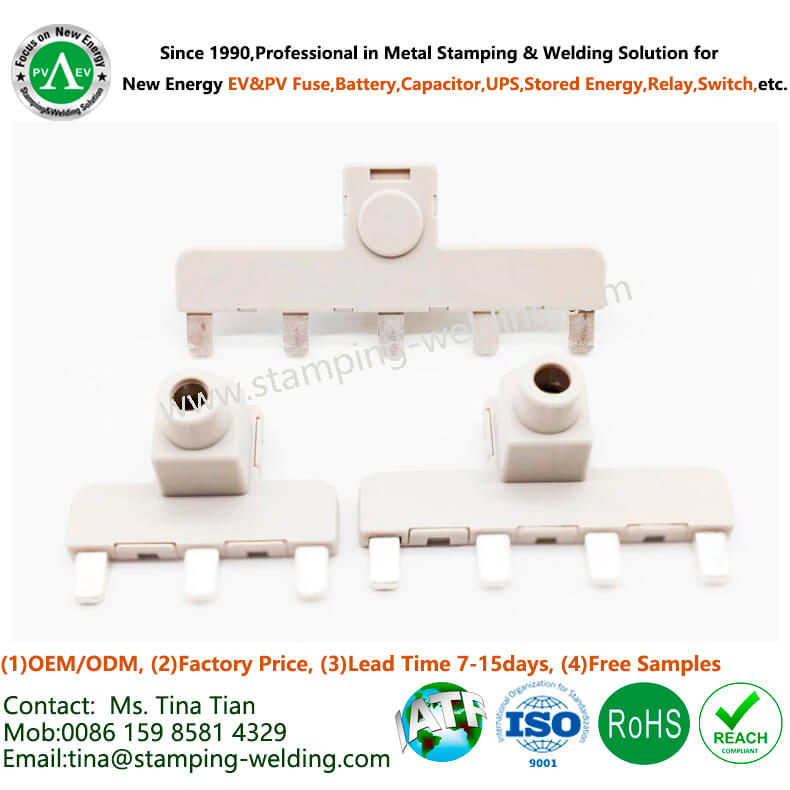

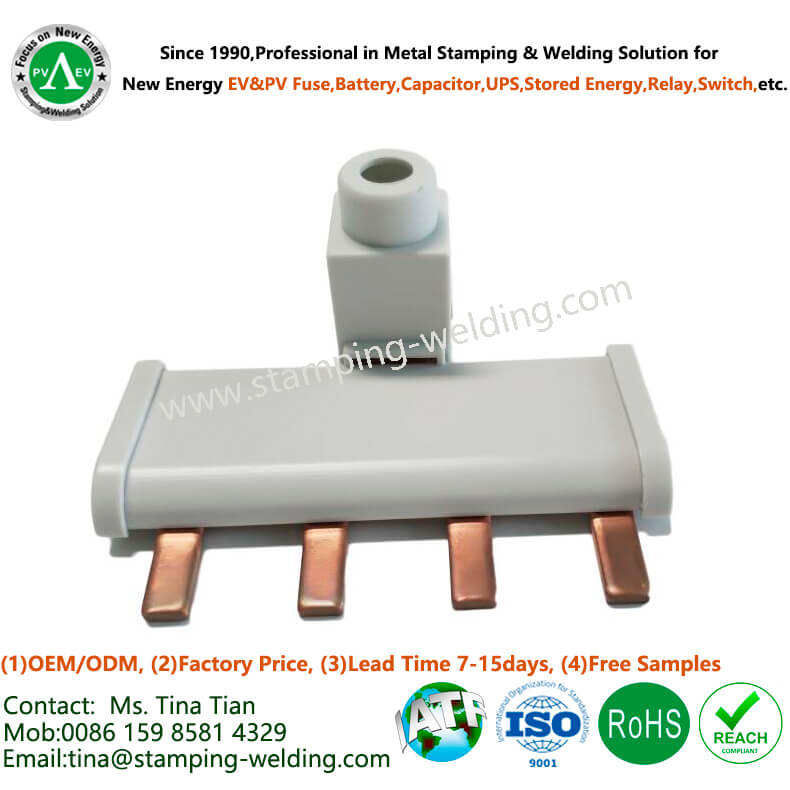

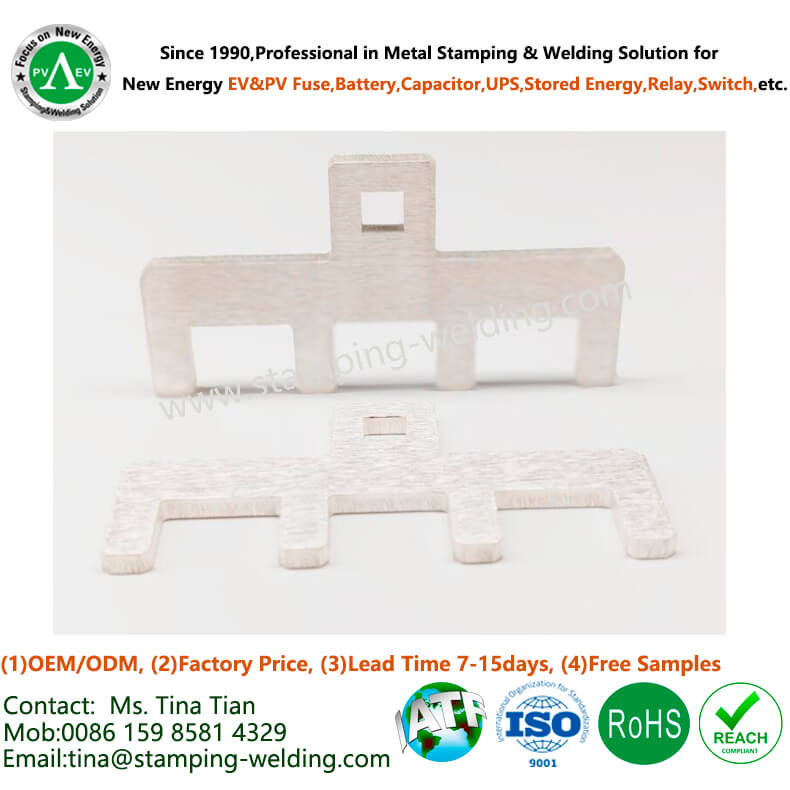

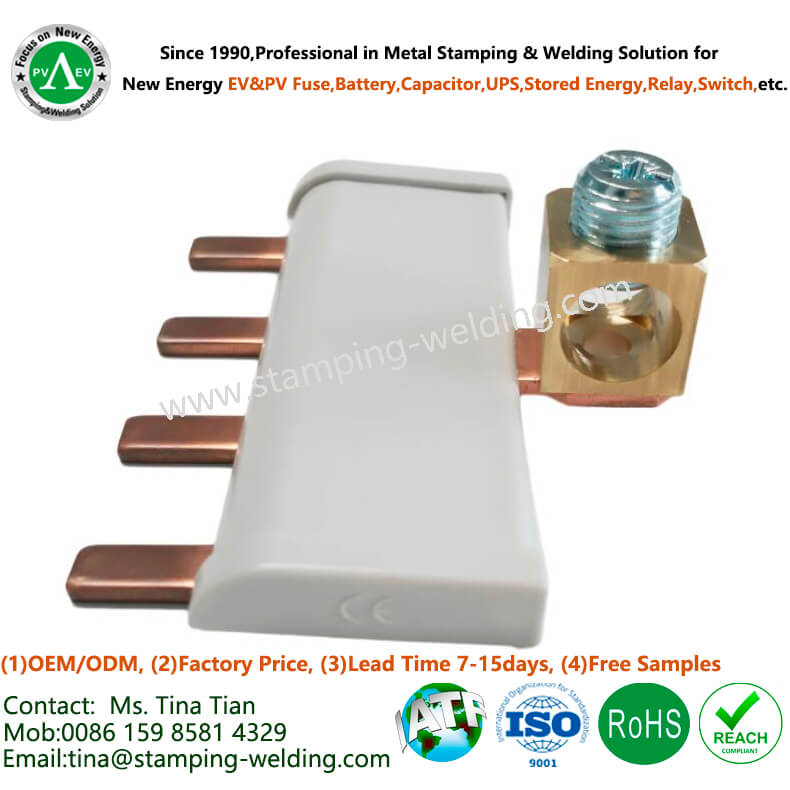

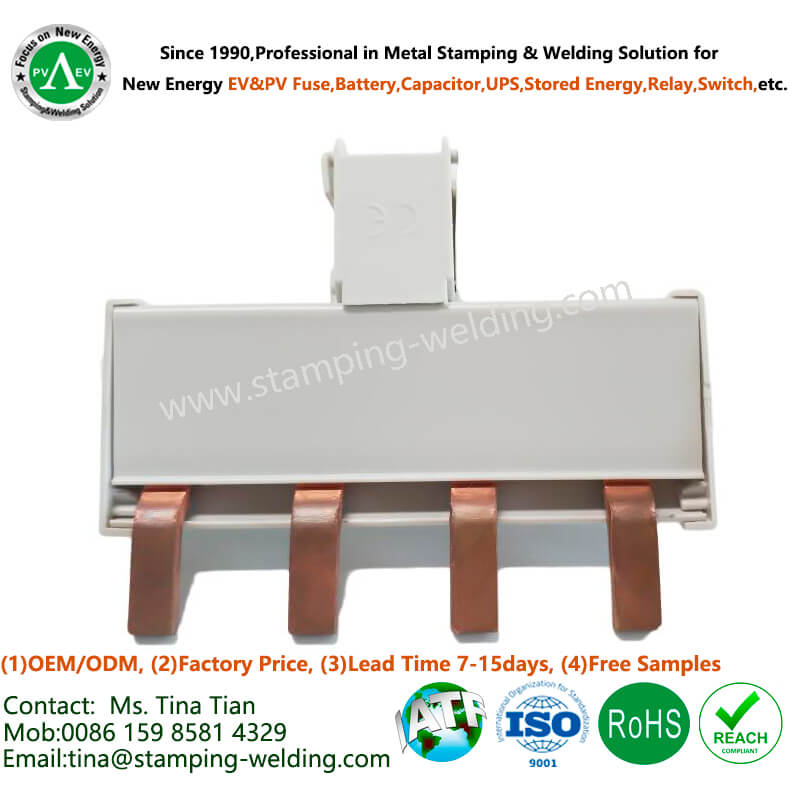

1- Products Name: Distribution Box Copper Busbar
2- Base Material Standard:
GB : T2Y2 Copper
DIN: E-Cu58 (Number: 2.0065)
EN: Cu-ETP ( Number: CW004A)
ISO: Cu-ETP
UNS: C11000
JIS: C1100
BS: C101
Purity ≥99.99% Copper, Conductivity %IACS≥97, Hardness 80~110HV, Tensile Strength 245-345MPa, other material also can be customized.
3-Surface Treatments:
(3.1) Silver plating
(3.2) Tin plating
(3.3) Nickel plating
(3.4) Ultrasonic cleaning
Normally plated thickness is 3μm to 12μm, but all upon customers' request.

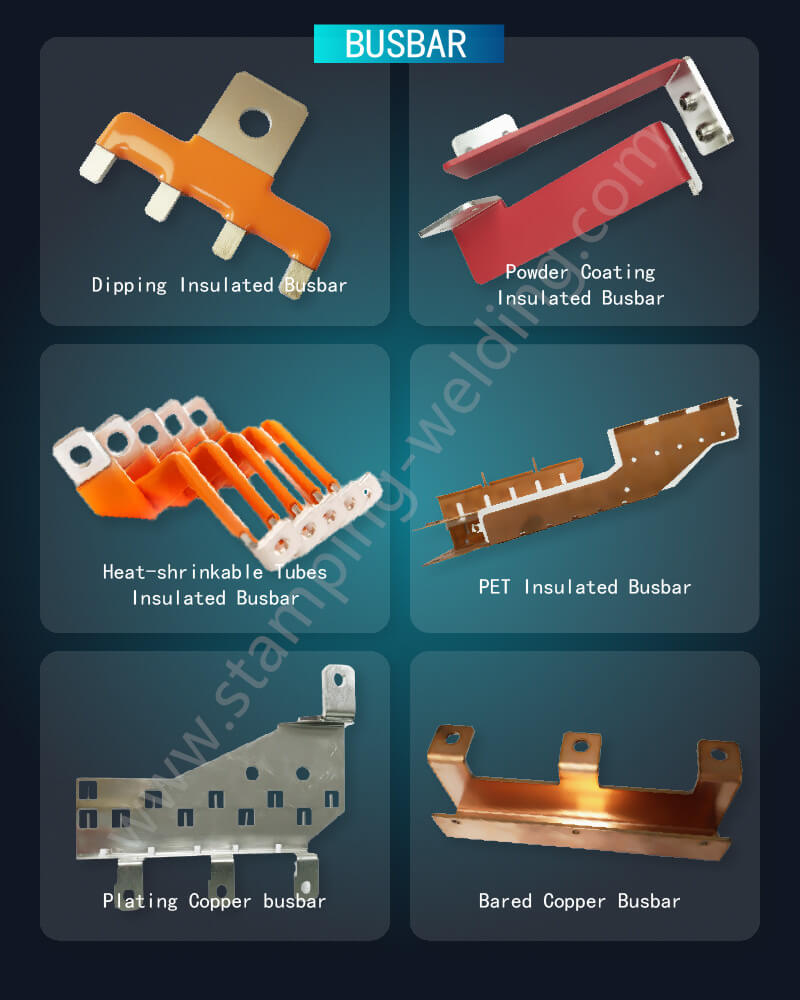

4- Insulation Options:
(4.1) PET insulation paper (brands USA GTS, GERMANY KREMPEL, etc with white or milky white colors)
(4.2) PVC dipping (orange and green are the most popular colors)
(4.3) Epoxy powder coating (orange, green and grey are the most popular colors)
(4.4) PE heat shrink tube (orange, green, black, red are yellow are the most popular colors)
(4.5) PA66 plastic housing (white, grey etc are the most popular colors)
Flame Retardant / Fire Resistance: UL94-V-0 or upon you request;
Operating Temperature: -45ºC to +150 ºC
5- Copper Busbar Resistance: ≤0.00001Ω
6- Copper Busbar load voltage 3500VDC to 5000VDC and current 100A to 2000A
7- Copper Busbar Assembly Fixtures: USA PEM stainless nuts, studs, standoffs, screws, etc
8- Free Samples:1-10pcs is allowed
9- Lead Time:Orders 7-10days,Samples 10-20days(including the tooling/die production of Copper Stamped Part);
10- Packing: pearl cotton/blister box inside and carton/pallet outside
11- Certifications: ISO9001, IATF16949, RoHS, REACH, etc.
12- Production Capacity: 50,000,000 pcs/month
13- Applications: film capacitors for new energy electric vehicles and hybrid vehicles, new energy vehicle battery packs, new energy photovoltaic energy storage, power appliances, distribution cabinets, rail transit, cloud server uninterruptible power supplies and other power systems.
A Distribution Box Copper Busbar is a component used in electrical distribution systems to distribute electrical power to various circuits. Here's an overview of its application:
1.Electrical Distribution:
The primary function of a copper busbar in a distribution box is to distribute electrical power from the main power source to different circuits or loads within a building or industrial facility.
2.Material and Conductivity:
Copper is a commonly used material for busbars due to its excellent conductivity. The copper busbar efficiently carries electrical current and minimizes energy losses, ensuring that power is distributed with minimal resistance.
3.Connection to Circuit Breakers and Devices:
The copper busbar in a distribution box is designed to connect to circuit breakers, switches, and other electrical devices. It serves as a central point for the connection of various circuits, allowing for organized and efficient power distribution.
4.Modular Design:
Distribution boxes with copper busbars often have a modular design. This allows for flexibility in configuring electrical circuits, adding or removing circuits as needed, and simplifying maintenance.
5.Low Resistance and Heat Dissipation:
Copper's low electrical resistance and excellent heat dissipation properties make it a suitable material for busbars. This ensures that the distribution box operates efficiently and remains cool even under high electrical loads.
6.Voltage Distribution:
In addition to distributing electrical power, the copper busbar is responsible for evenly distributing voltage to the connected circuits. This is essential for maintaining a stable electrical supply to different parts of a building or facility.
7.Grounding:
The distribution box copper busbar may also be involved in grounding. Grounding is a safety measure that provides a path for electrical faults to safely dissipate into the ground, reducing the risk of electrical shock and fire hazards.
It's important to note that the specific design and specifications of distribution box copper busbars may vary based on the requirements of the electrical system, local electrical codes, and the manufacturer's specifications. When working with electrical components, it's advisable to follow safety guidelines and consult with a qualified electrician or engineer if needed.
