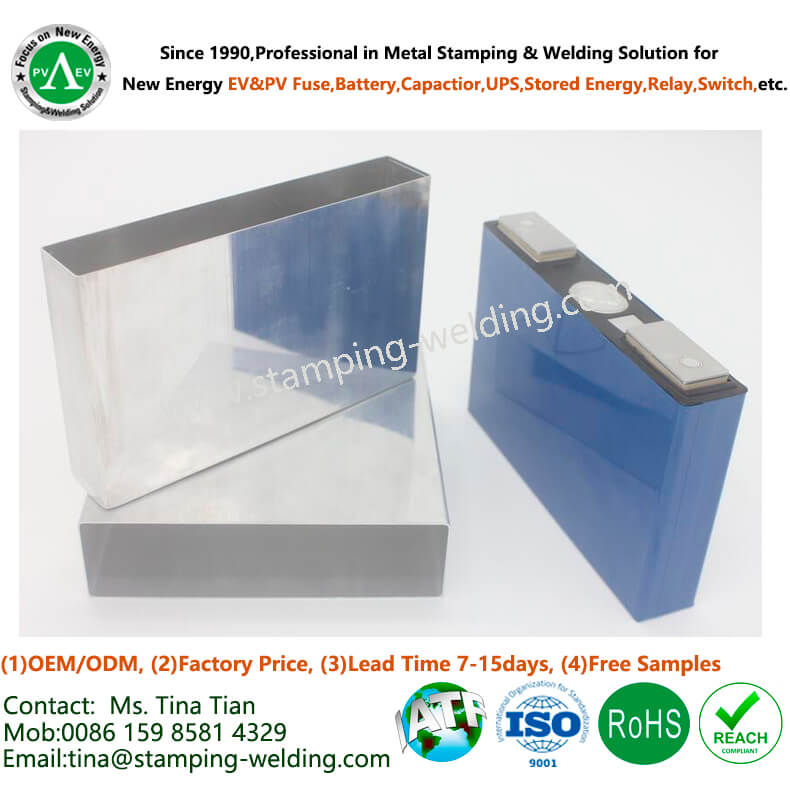

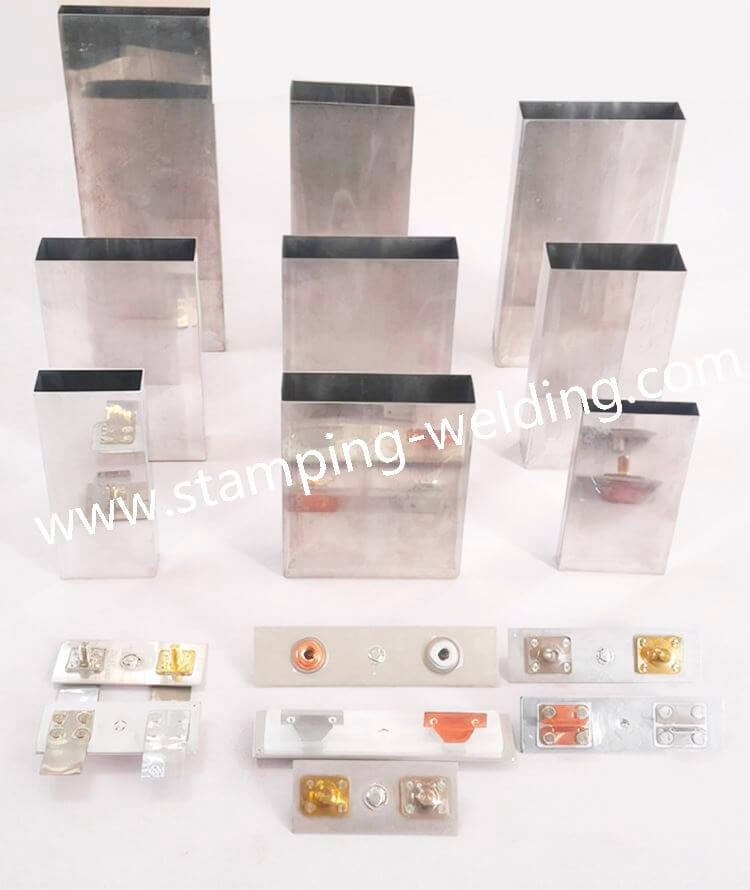

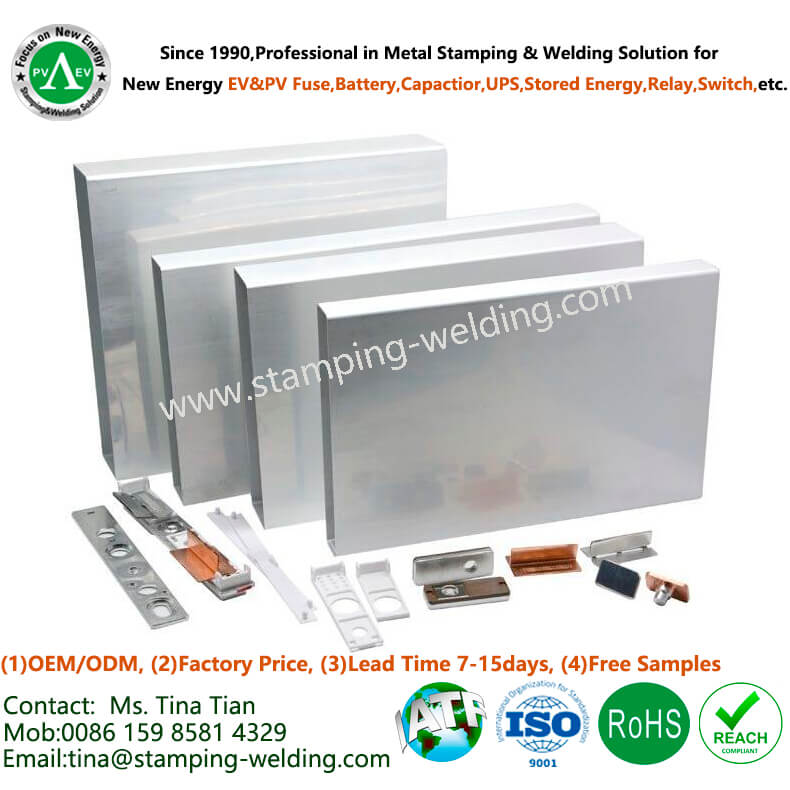

1- Products Name: New Energy Aluminum Battery Cases and Cover Plates
2- Aluminum Case size mainstream specifications for new energy vehicles and energy storage lithium square batteries (wide*long*high by mm):
54173
36130
29135
71173
27148
41255
and so on, all depend on customers' OEM required.
3- Base Material Standard:
(3.1) Battery Aluminum Cases: 3003-H14 Aluminum
Aluminum GB/T3880 standard, Tensile Strength 145-195MPa
(3.2) Battery Cover Plates: 3003-H14 Aluminum & T2Y2 Copper & Plastic Injection
Copper GB/T5231standard, Purity ≥99.99% Copper, Conductivity %IACS≥97, Hardness 80~110HV, Tensile Strength 245-345MPa.

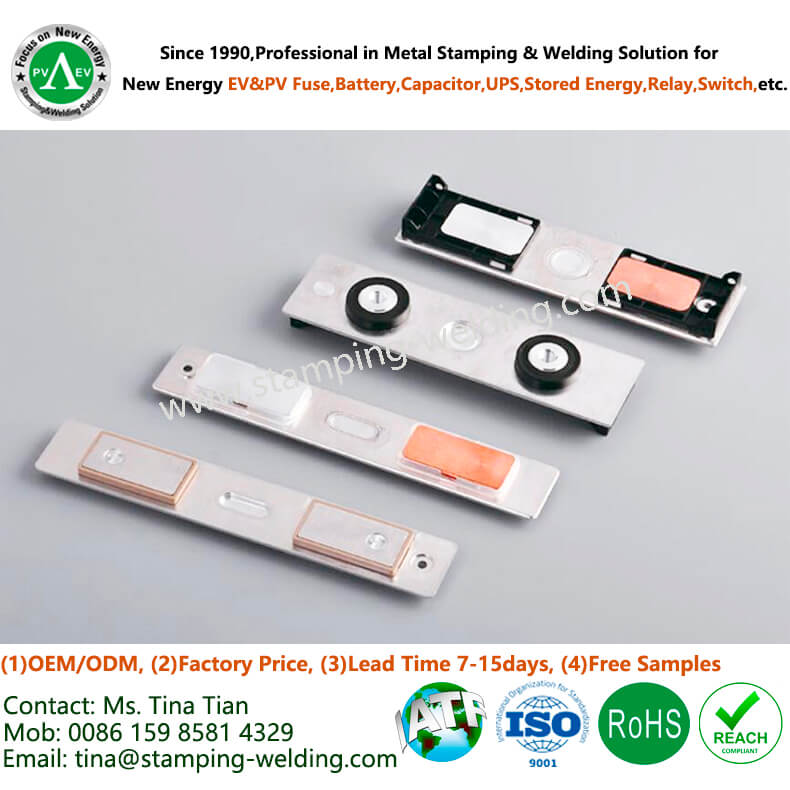

(3.3) Cover Plates Assembly including:
Cover Plate: 3003 H14 Aluminum
Injection Part: PFA Plastic
Electrode Plate: 3003 H14 Aluminum
Positive Pole: 3003 H14 Aluminum
Negative Pole: T2Y2 Copper
Film: 3M PET transparent adhesive
Explosion Proof Valve: MFX2
Positive Connecting Pieces A&B: 1060 H12 Aluminum
Insulating Gasket: PP
Negative Connecting Pieces A&B: T2Y2 Copper+Nickel Plated
4-Surface Treatments:
(4.1) Anodizing
(4.2) Ultrasonic cleaning

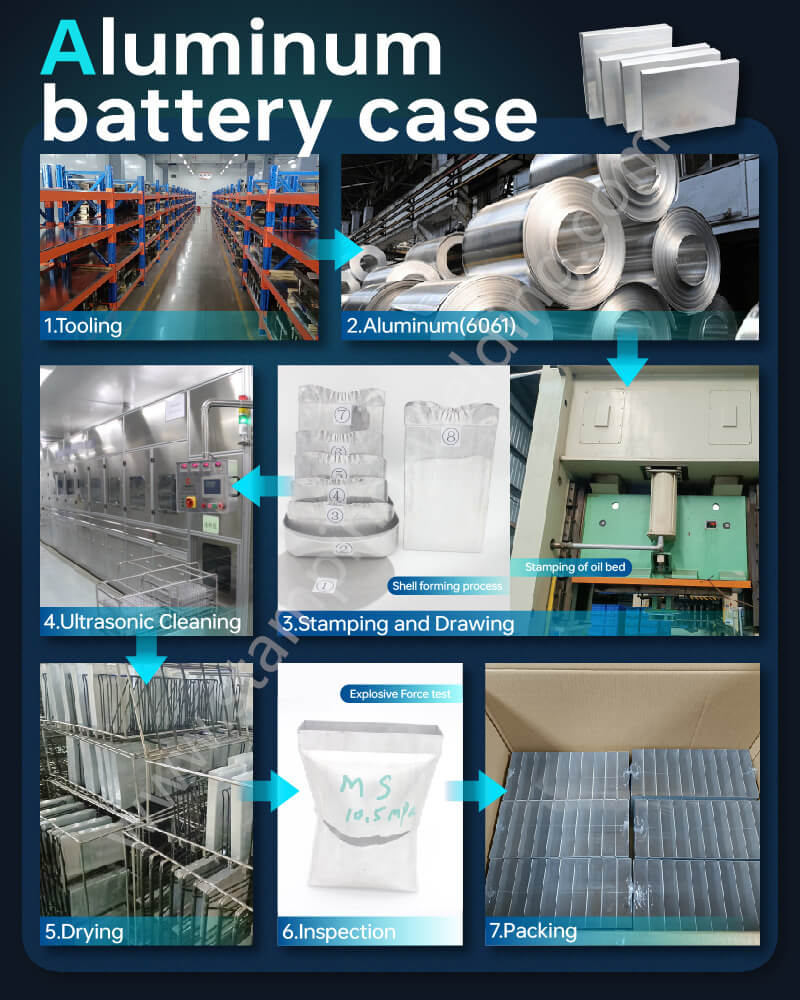

5- Production Technologies:

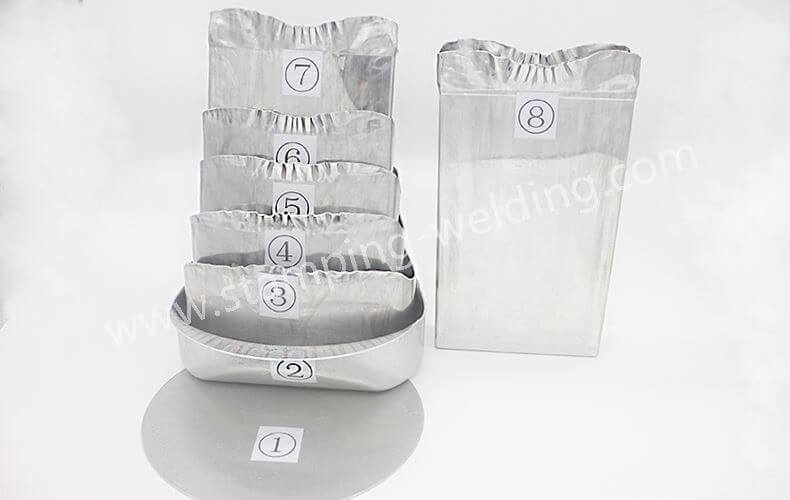

(5.1) Stamping and stretching for Aluminum Battery Prismatic Cases
(5.2) Stamping, injection molding, machining, riveting, resistance welding, laser welding for Battery Cover Plates Assembly
6- Free Samples: 1-10pcs is allowed
7- Lead Time:Orders 10-20days,Samples 20-30days (including the tooling/die production);
8- Packing: pearl cotton/blister box inside and carton/pallet outside
9- Certifications: ISO9001, IATF16949, RoHS, REACH, etc.
10- Production Capacity: 5,000,000 pcs/month
11- Applications: Suitable for electric vehicles, electric motorcycles, electric bicycles, recreational vehicles, golf carts, electric lifts, cleaning vehicles power supplies; energy storage equipment such as forklifts and forklifts: based on solar, wind, geothermal, and ocean energy power generation systems Energy storage equipment; power grid peak shaving; uninterruptible power supply system UPS; used with solar cells as energy storage equipment, home lighting, etc.
Why choose 3003 H14 aluminum alloy material in the lithium battery aluminum casing of new energy vehicles and energy storage?
In the power battery system of new energy vehicles, the battery shell accounts for about 20 to 30% of the total weight of the system and is the main structural component of the battery. For the sake of lightweight, square power battery shells are generally made of 3003 aluminum plates, which require high material performance and are made of international standard materials. Recycled materials are strictly prohibited. Both anti-corrosion and explosion-proof properties are the best.
3003 aluminum plate has many advantages when used in new energy power battery shells
1. Good processability. The 3003 aluminum alloy power battery aluminum shell (except the shell cover) can be stretched and formed at one time. Compared with the stainless steel shell, the bottom welding process of the box can be omitted.
2. Light weight. The mass of the battery box has a great influence on the quality of the entire battery module. The density of aluminum alloy is higher than that of traditional stainless steel. In order to reduce weight, it is an inevitable choice to use 3003 aluminum alloy material to make the battery case.
3. Good heat transfer. Power batteries will generate heat when working for a long time, and the battery casing needs to have good heat dissipation.
4. Good corrosion resistance. 3003 aluminum plate is an aluminum-manganese alloy. Due to the manganese alloy element, the product has excellent anti-rust properties and is also called anti-rust aluminum plate.
In view of the above advantages, many companies currently use 3003 aluminum plates as power battery casing materials. With the country's emphasis on energy conservation and emission reduction and breakthroughs in aluminum alloy body panel technology, especially the increase in the production of new energy vehicles, the aluminization rate of automobile bodies will gradually increase, and the demand for aluminum for power battery shells will also increase.
Features of power lithium battery aluminum case:
1. The elastic coefficient is small, there is no spark caused by collision and friction, and it performs best in automobile technology.
2. No metal pollution, no toxicity, and no volatile metals in the surface oxide layer.
3. Compared with other metal materials, it has low density and light weight.
4. It has strong plasticity and good productivity, which has great advantages for production.
5. It adopts two processes of hot and cold processing, which has strong corrosion resistance.
6. It has good casting performance, very high aluminum content and abundant reserves.
7. It has good ductility and can be used to make lightweight alloys with many metal elements. The material is of high quality.
8. Good surface treatment performance.
9. It has stable chemical properties, is non-magnetic and can be recycled repeatedly. It is a benign and recyclable metal material.
