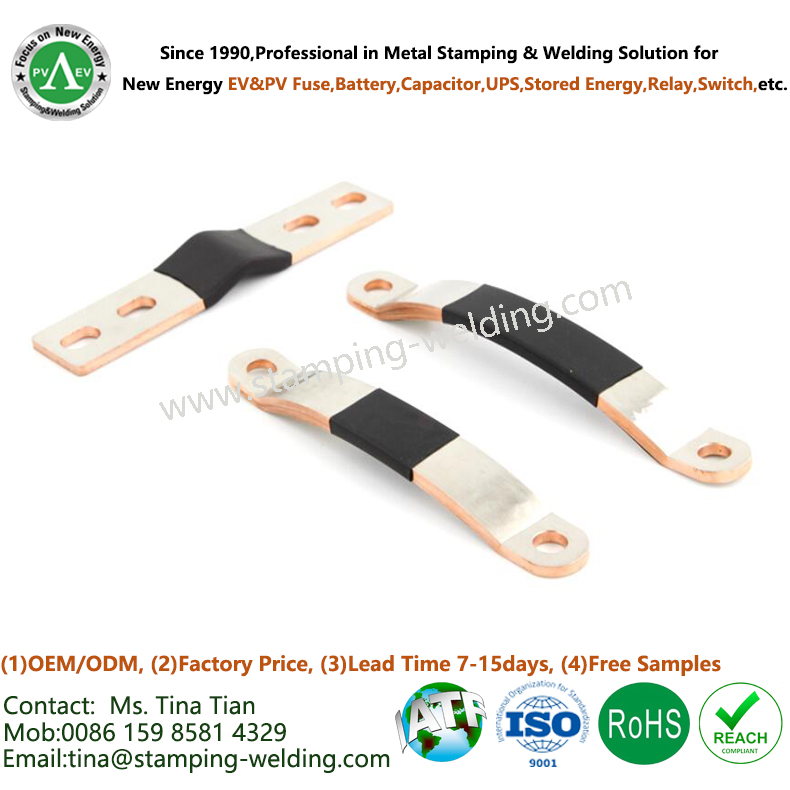

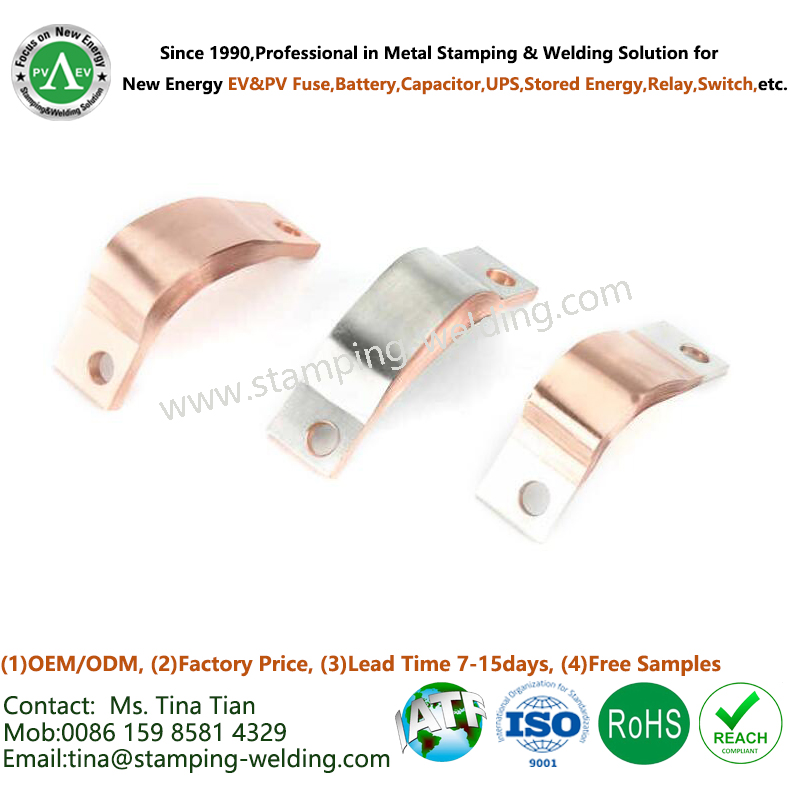

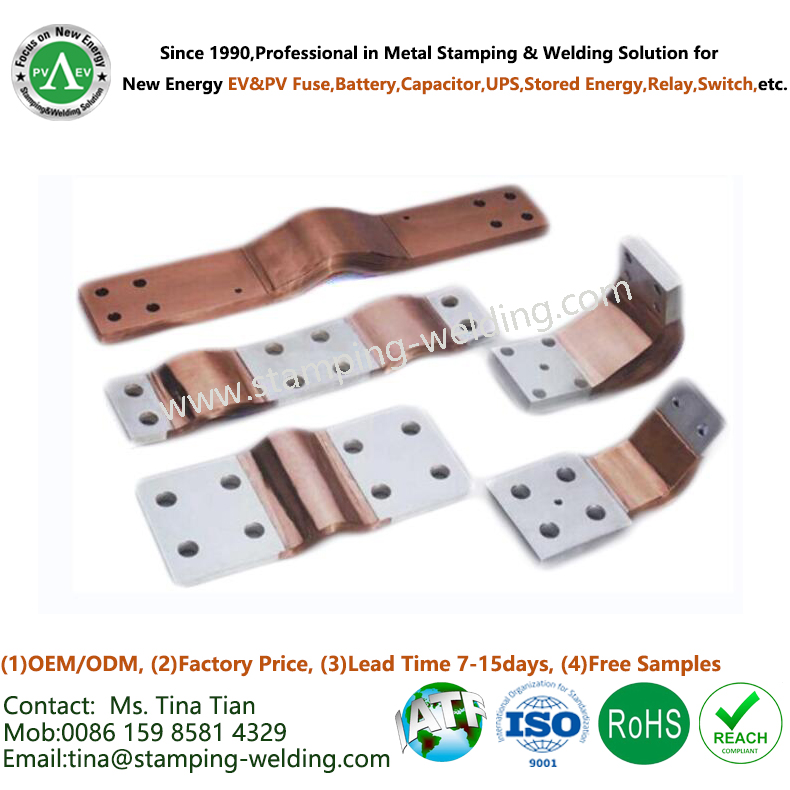

1- Products Name: Multilayer Bus Bar Flexible
2- Base Material Standard:
GB: T2Y2 Copper Foils / Sheet
(2.1) Copper Foils Thickness: 0.1mm, 0.2mm, 0.3mm, 0.5mm, 1.0mm
(2.2) Copper Flexible BusBar long up to 6.6 ft (2meters long)
(2.3) Copper Flexible BusBar width up to 6.0 inch (152mm)
(2.4) Laminated Copper Foil thickness up to 1.25 inch (32mm)
DIN: E-Cu58 (Number: 2.0065)
EN: Cu-ETP ( Number: CW004A)
ISO: Cu-ETP
UNS: C11000
JIS: C1100
BS: C101
Purity ≥99.99% Copper, Conductivity %IACS≥97, Hardness 80~110HV, Tensile Strength 245-345MPa, other material also can be customized.
3-Surface Treatments:
(3.1) Silver plating
(3.2) Tin plating
(3.3) Nickel plating or Resistance diffusion welding nickel sheet
(3.4) Ultrasonic cleaning
Normally plated thickness is 3μm to 12μm, but all upon customers' request.
4- Insulation Options:
(4.1) PET insulation paper (brands USA GTS, GERMANY KREMPEL, etc with white or milky white colors)
(4.2) PVC dipping (orange and green are the most popular colors)
(4.3) Epoxy powder coating (orange, green and grey are the most popular colors)
(4.4) PE heat shrink tube (orange, green, black, red are yellow are the most popular colors)
(4.5) PA66 plastic housing (white, grey etc are the most popular colors)
Flame Retardant / Fire Resistance: UL94-V-0 or upon you request;
Operating Temperature: -45ºC to +150 ºC
5- Copper Busbar Resistance: ≤0.00001Ω
6- Copper Busbar load voltage 3500VDC to 5000VDC and current 100A to 2000A
7- Copper Busbar Assembly Fixtures: USA PEM stainless nuts, studs, standoffs, screws, etc
8- Free Samples:1-10pcs is allowed
9- Lead Time:Orders 7-10days,Samples 10-20days(including the tooling/die production of Copper Stamped Part);
10- Packing: pearl cotton/blister box inside and carton/pallet outside
11- Certifications: ISO9001, IATF16949, RoHS, REACH, etc.
12- Production Capacity: 50,000,000 pcs/month
13- Applications: film capacitors for new energy electric vehicles and hybrid vehicles, new energy vehicle battery packs, new energy photovoltaic energy storage, power appliances, distribution cabinets, rail transit, cloud server uninterruptible power supplies and other power systems.
Resistance diffusion welding, also known as resistance pressure welding or resistance upset welding, is a solid-state welding process that involves applying pressure and heat to the surfaces of two materials to be joined. The process relies on the diffusion of atoms at the interface, resulting in a metallurgical bond. Here's how resistance diffusion welding can be applied in the context of soft connection copper bars.
Advantages of Resistance Diffusion Welding in Soft Connections:
1.High Conductivity for Multilayer Copper Foils Flexible BusBars:
The solid-state welding process maintains the high electrical conductivity of copper.
2.Metallurgical Bond for Flexible BusBar:
Creates a metallurgical bond without the need for filler materials, ensuring a strong connection.
3.Minimized Heat-Affected Zone for Copper Flexible BusBar:
Since it is a solid-state process, there is minimal heat-affected zone, preserving the material properties.
4.No Melting for Multilayer Bus Bar:
The process occurs without melting the materials, preventing issues related to liquid metal reactions.
5.Repeatable Process for Flexible Copper BusBar:
Resistance diffusion welding is a repeatable and controllable process, allowing for consistent results.
The application of resistance diffusion welding in soft connection copper bars provides a reliable method for creating joints with high electrical conductivity and mechanical strength while preserving the soft properties of copper. This makes it suitable for various electrical and industrial applications where flexibility and conductivity are essential.
