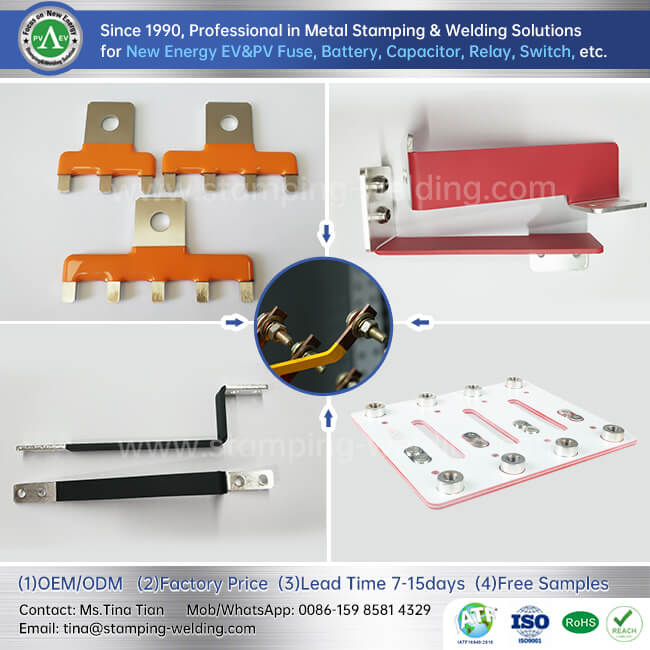

1- Products Name: PVC Coated Bus Bars
2- Base Material Standard:
GB : T2Y2 Copper
DIN: E-Cu58 (Number: 2.0065)
EN: Cu-ETP ( Number: CW004A)
ISO: Cu-ETP
UNS: C11000
JIS: C1100
BS: C101
Purity ≥99.99% Copper, Conductivity %IACS≥97, Hardness 80~110HV, Tensile Strength 245-345MPa, other material also can be customized.
3-Surface Treatments:
(3.1) Silver plating
(3.2) Tin plating
(3.3) Nickel plating
(3.4) Ultrasonic cleaning
Normally plated thickness is 3μm to 12μm, but all upon customers' request.
4- Insulation Options:
(4.1) PET insulation paper (brands USA GTS, GERMANY KREMPEL, etc with white or milky white colors)

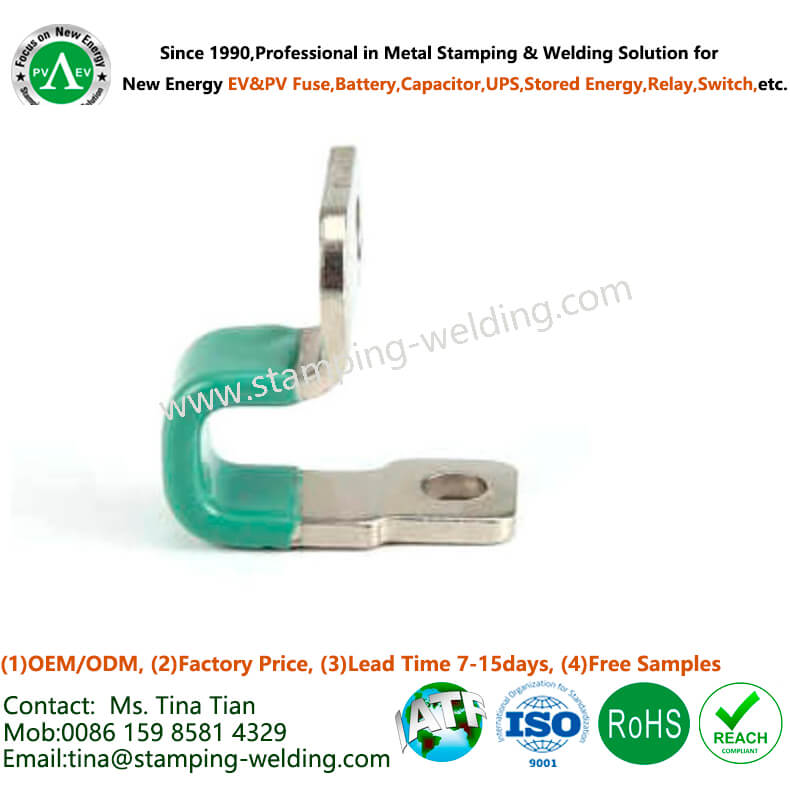

(4.2) PVC dipping (orange and green are the most popular colors)
(4.3) Epoxy powder coating (orange, green and grey are the most popular colors)
(4.4) PE heat shrink tube (orange, green, black, red are yellow are the most popular colors)
Flame Retardant / Fire Resistance: UL94-V-0 or upon you request;
Operating Temperature: -45ºC to +150 ºC
5- Copper Busbar Resistance: ≤0.00001Ω
6- Copper Busbar load voltage 3500VDC to 5000VDC and current 100A to 2000A
7- Copper Busbar Assembly Fixtures: USA PEM stainless nuts, studs, standoffs, screws, etc
8- Free Samples:1-10pcs is allowed
9- Lead Time:Orders 7-10days,Samples 10-20days(including the tooling/die production of Copper Stamped Part);
10- Packing: pearl cotton/blister box inside and carton/pallet outside
11- Certifications: ISO9001, IATF16949, RoHS, REACH, etc.
12- Production Capacity: 50,000,000 pcs/month
13- Applications: film capacitors for new energy electric vehicles and hybrid vehicles, new energy vehicle battery packs, new energy photovoltaic energy storage, power appliances, distribution cabinets, rail transit, cloud server uninterruptible power supplies and other power systems.
PVC coated bus bars find applications in various industries and electrical systems where the protection of bus bars against environmental factors, insulation, and safety are essential. Here are some common applications of PVC coated bus bars:
1-Electrical Panels and Switchboards:
PVC coated bus bars are frequently used in electrical panels and switchboards. The PVC coating provides insulation and protection against accidental contact, reducing the risk of electrical shocks.
2-Industrial Control Systems:
In industrial settings with complex control systems, PVC coated bus bars are employed to facilitate the distribution of electrical power while maintaining insulation and preventing electrical shorts.
3-Building Wiring and Distribution:
PVC coated bus bars are utilized in building wiring and distribution systems to connect and distribute electrical power. The PVC coating protects against environmental factors and enhances safety in areas where people may come into contact with the wiring.
Data Centers:
In data centers where precise control over electrical distribution is crucial, PVC coated bus bars can be used to organize and distribute power while providing insulation and protection against physical contact.
Renewable Energy Systems:
In solar and wind power installations, PVC coated bus bars may be employed to interconnect various components, providing insulation and protection against weather conditions.
PVC Coated Bus Bars Marine Applications:
In marine environments, where corrosion and exposure to moisture are concerns, PVC coated bus bars are used for electrical connections to ensure longevity and reliability.
1-HVAC Systems:
Heating, ventilation, and air conditioning (HVAC) systems may utilize PVC coated bus bars for electrical connections, providing insulation and protection in environments where temperature and humidity variations are common.
2-Automotive Industry:
In the automotive industry, PVC coated bus bars can be used for electrical connections in vehicles, ensuring insulation and protection against vibrations and environmental conditions.
3-Power Distribution Centers:
Large power distribution centers often use PVC coated bus bars for organizing and distributing electrical power within the facility. The coating protects against corrosion and physical damage.
4-Laboratories and Research Facilities:
Laboratories and research facilities may use PVC coated bus bars to ensure safety and proper electrical distribution in areas where experiments and testing are conducted.
Railway Systems:
In railway applications, PVC coated bus bars can be employed for electrical connections in rail cars or infrastructure, offering insulation and protection against environmental elements.
PVC coated bus bars are chosen for these applications due to their insulation properties, resistance to corrosion, and ability to protect against environmental factors. The PVC coating provides a durable and reliable solution for ensuring the safety and functionality of electrical systems in various industries.
