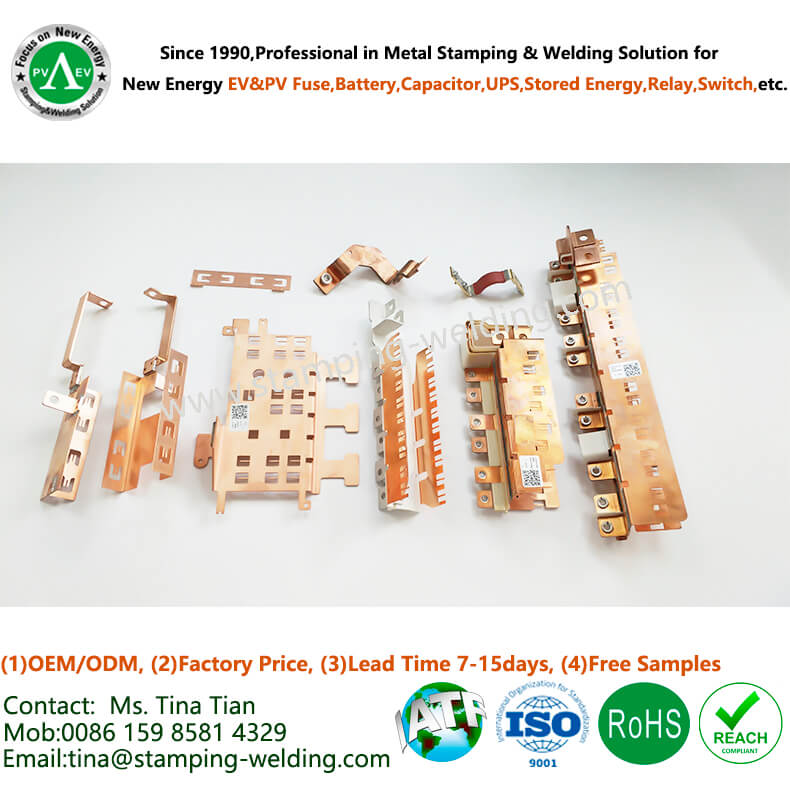

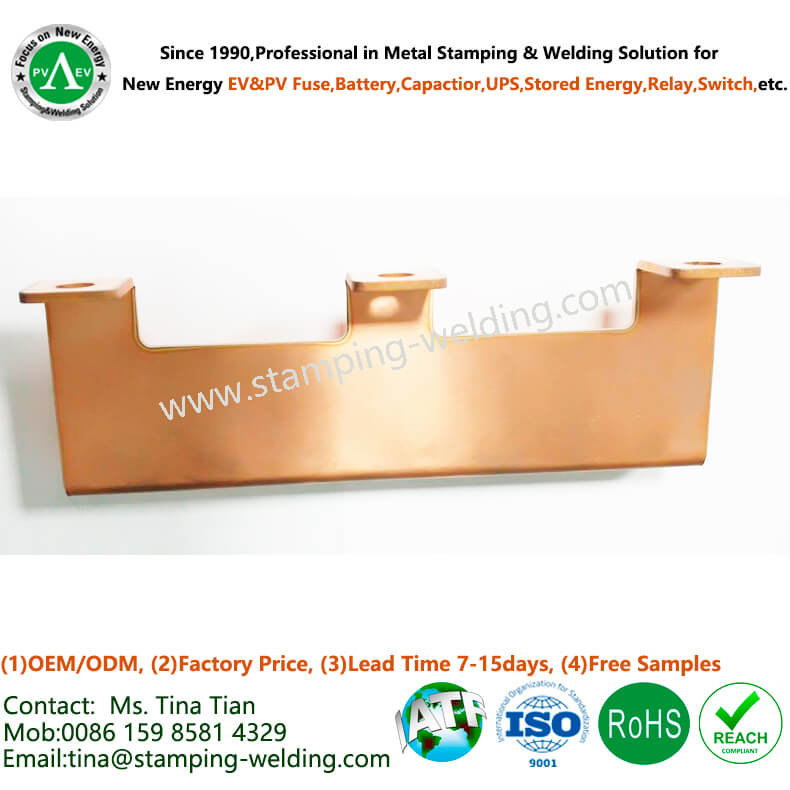

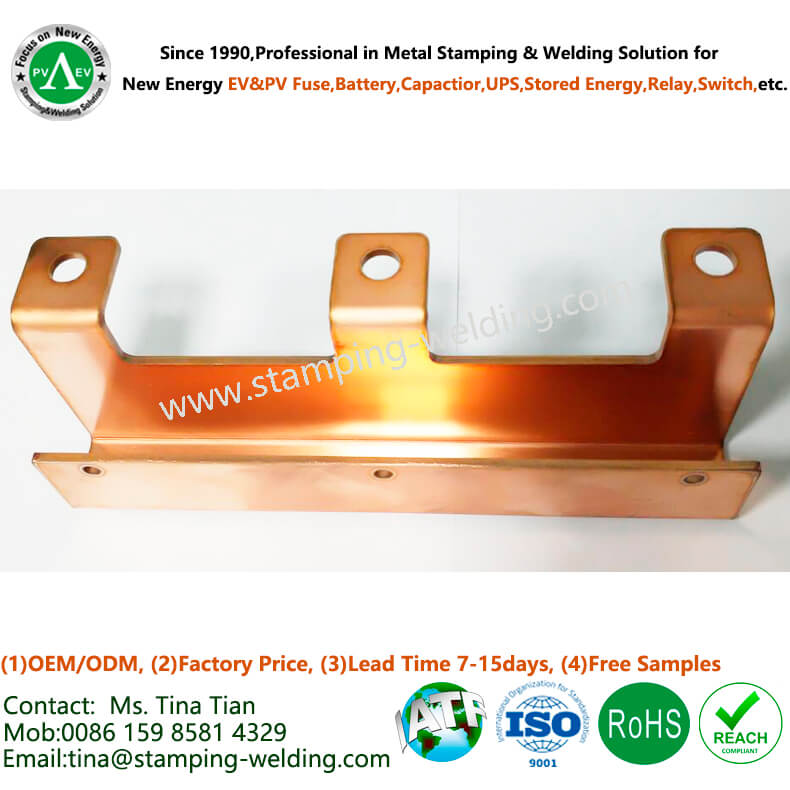

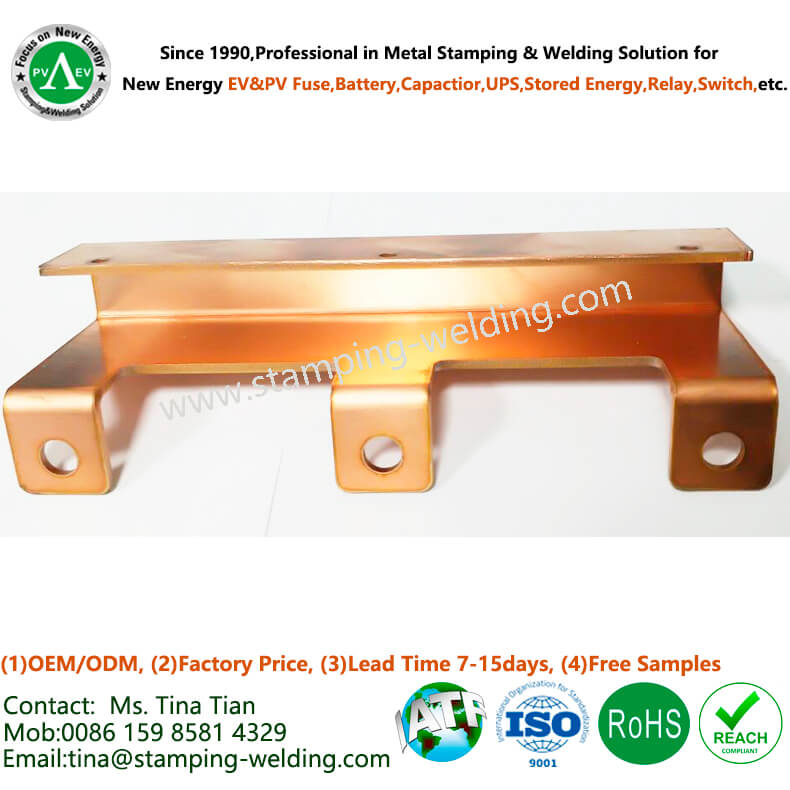

1- Products Name: Automotive Busbar Bare Copper
2- Base Material Standard:
GB : T2Y2 Copper
DIN: E-Cu58 (Number: 2.0065)
EN: Cu-ETP ( Number: CW004A)
ISO: Cu-ETP
UNS: C11000
JIS: C1100
BS: C101
Purity ≥99.99% Copper, Conductivity %IACS≥97, Hardness 80~110HV, Tensile Strength 245-345MPa, other material also can be customized.
3-Surface Treatments:
(3.1) Silver plating
(3.2) Tin plating
(3.3) Nickel plating
(3.4) Ultrasonic cleaning
Normally plated thickness is 3μm to 12μm, but all upon customers' request.
4- Insulation Options:
(4.1) PET insulation paper (brands USA GTS, GERMANY KREMPEL, etc with white or milky white colors)
(4.2) PVC dipping (orange and green are the most popular colors)
(4.3) Epoxy powder coating (orange, green and grey are the most popular colors)
(4.4) PE heat shrink tube (orange, green, black, red are yellow are the most popular colors)
Flame Retardant / Fire Resistance: UL94-V-0 or upon you request;
Operating Temperature: -45ºC to +150 ºC
5- Copper Busbar Resistance: ≤0.00001Ω
6- Copper Busbar load voltage 3500VDC to 5000VDC and current 100A to 2000A
7- Copper Busbar Assembly Fixtures: USA PEM stainless nuts, studs, standoffs, screws, etc
8- Free Samples:1-10pcs is allowed
9- Lead Time:Orders 7-10days,Samples 10-20days(including the tooling/die production of Copper Stamped Part);
10- Packing: pearl cotton/blister box inside and carton/pallet outside
11- Certifications: ISO9001, IATF16949, RoHS, REACH, etc.
12- Production Capacity: 50,000,000 pcs/month

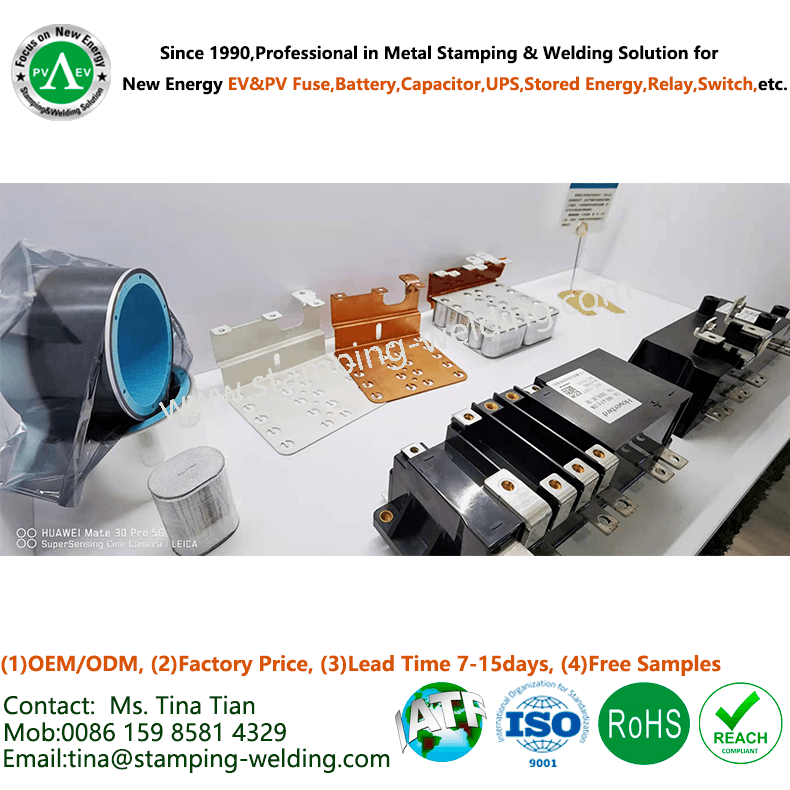

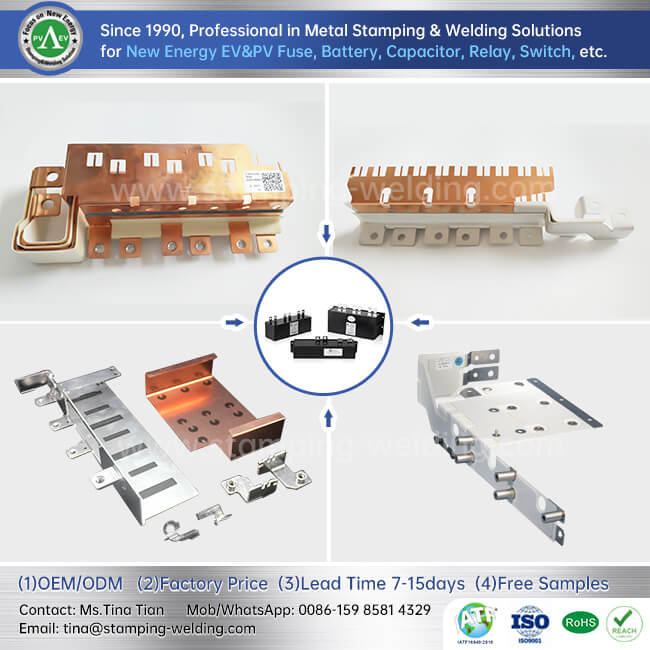

13- Applications: film capacitors for new energy electric vehicles and hybrid vehicles, new energy vehicle battery packs, new energy photovoltaic energy storage, power appliances, distribution cabinets, rail transit, cloud server uninterruptible power supplies and other power systems.
The Apollo China Automotive Busbar Bare Copper Advantages:
1. Improve equiments properity.
Copper busbar can reduce the resistance and lower power cosumption. Copper busbar is capable of steady current carrying capacity and voltage-sharing.
2. Easy to install, examine and maintain.
Copper busbar can be installed with simple tools. Anyone can use it with bolt, nut and screwdriver. The workers examine the property with tester.
3. Reduce Cost
Copper Busbar increase the serve-life of machines and equipments. Good quality T2Y2 copper material can lower the temperature raise and loss of equipement parts
A "Tin Plated Copper BusBar for EV" refers to the use of a specific type of busbar in electric vehicles (EVs), where the busbar is made of copper and coated with a layer of tin. Let's break down the components:
"Automotive Busbar Bare Copper" refers to the use of bare copper as the material for busbars in automotive applications. Let's break down the components:
Bare Copper Busbar: In this context, the busbar is a conductive component made entirely of copper without any additional plating or coating. Copper is chosen for its excellent electrical conductivity, making it an ideal material for carrying and distributing electrical currents within the automotive electrical system.
High Conductivity: Copper is known for its high electrical conductivity, which ensures efficient power distribution without significant loss.
Good Thermal Conductivity: Copper also has good thermal conductivity, helping dissipate heat generated during the flow of electrical currents.
Using bare copper for automotive busbars is a common practice when the application doesn't require additional coatings or plating. It might be suitable in situations where the inherent properties of bare copper meet the performance and durability requirements of the automotive electrical system.
It's important to note that while bare copper is a good conductor, it may be more susceptible to corrosion compared to plated or coated alternatives. The choice of whether to use bare copper or plated copper busbars depends on specific design considerations, environmental factors, and the desired electrical performance for a particular automotive application.
