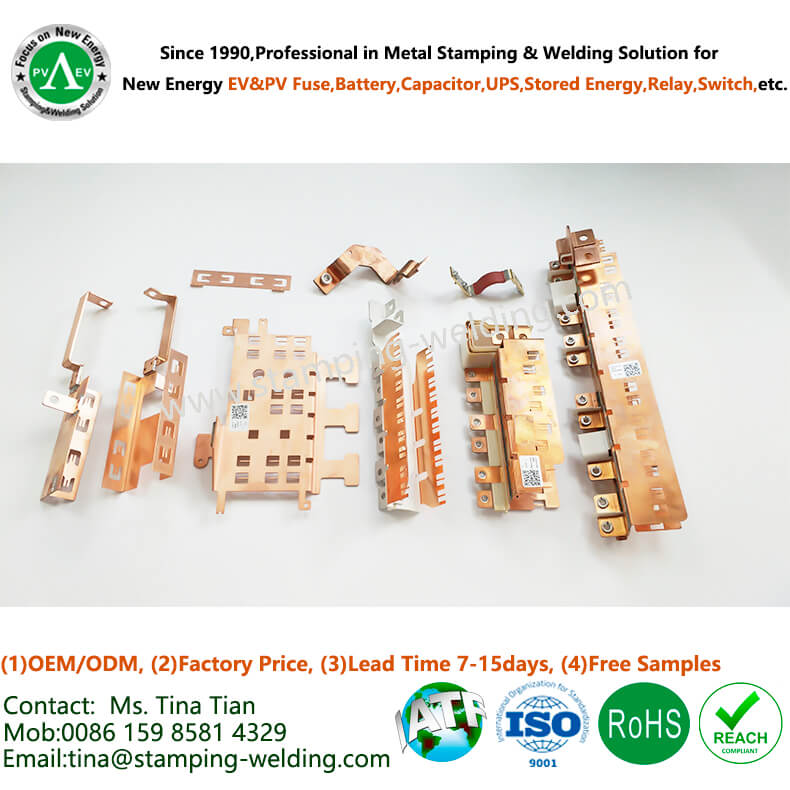

1- Products Name: Automotive BusBar PET Insulation
2- Base Material Standard:
GB : T2Y2 Copper
DIN: E-Cu58 (Number: 2.0065)
EN: Cu-ETP ( Number: CW004A)
ISO: Cu-ETP
UNS: C11000
JIS: C1100
BS: C101
Purity ≥99.99% Copper, Conductivity %IACS≥97, Hardness 80~110HV, Tensile Strength 245-345MPa, other material also can be customized.
3-Surface Treatments:

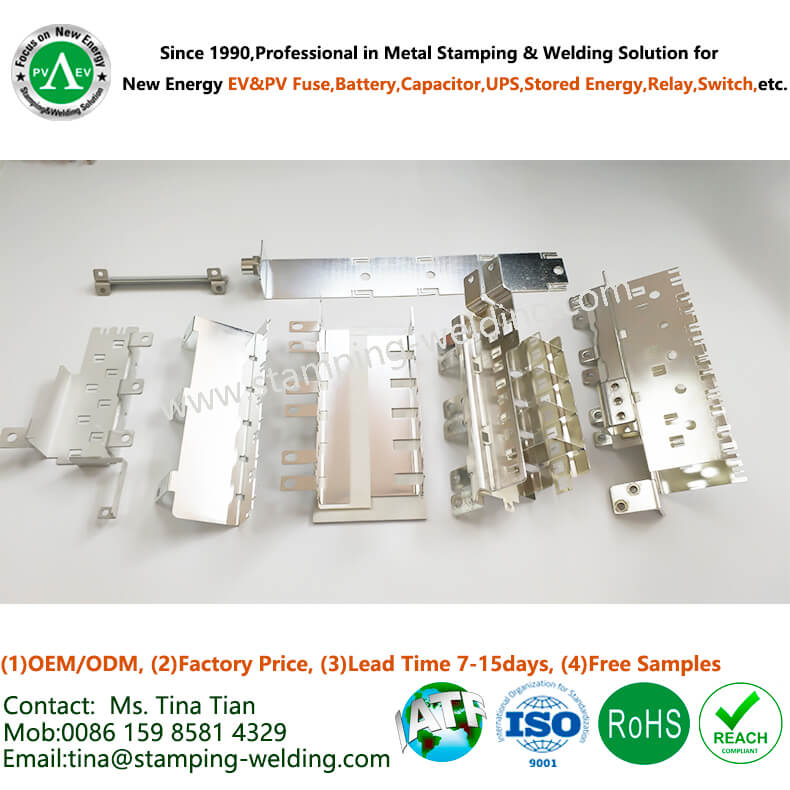

(3.1) Silver plating
(3.2) Tin plating
(3.3) Nickel plating
(3.4) Ultrasonic cleaning
Normally plated thickness is 3μm to 12μm, but all upon customers' request.

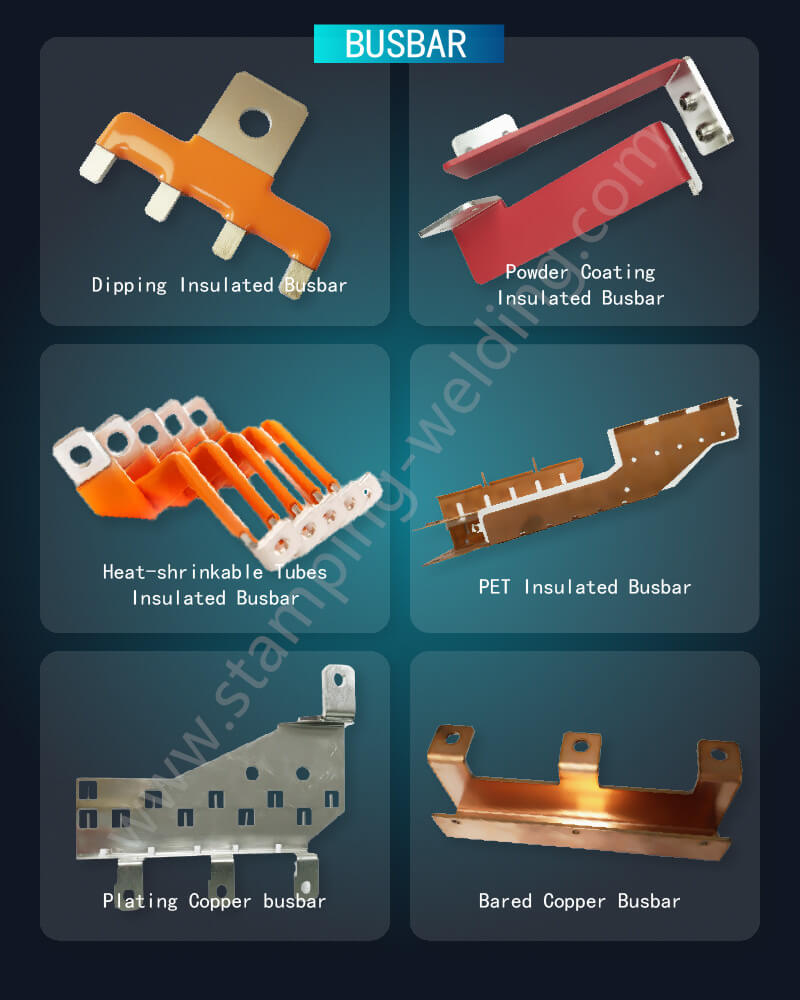

4- Insulation Options:
(4.1) PET insulation paper (brands USA GTS, GERMANY KREMPEL, etc with white or milky white colors)
(4.2) PVC dipping (orange and green are the most popular colors)
(4.3) Epoxy powder coating (orange, green and grey are the most popular colors)
(4.4) PE heat shrink tube (orange, green, black, red are yellow are the most popular colors)
Flame Retardant / Fire Resistance: UL94-V-0 or upon you request;
Operating Temperature: -45ºC to +150 ºC
5- Copper Busbar Resistance: ≤0.00001Ω
6- Copper Busbar load voltage 3500VDC to 5000VDC and current 100A to 2000A

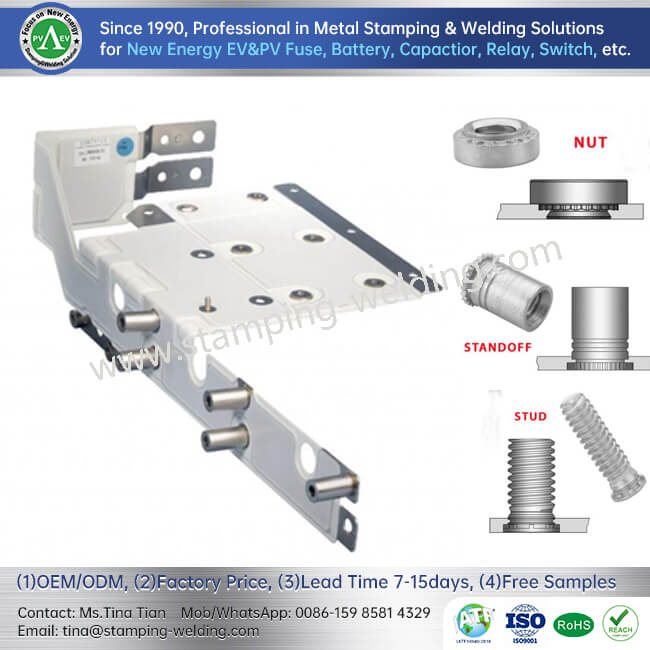

7- Copper Busbar Assembly Fixtures: USA PEM stainless nuts, studs, standoffs, screws, etc
8- Free Samples:1-10pcs is allowed
9- Lead Time:Orders 7-10days,Samples 10-20days(including the tooling/die production of Copper Stamped Part);
10- Packing: pearl cotton/blister box inside and carton/pallet outside
11- Certifications: ISO9001, IATF16949, RoHS, REACH, etc.
12- Production Capacity: 50,000,000 pcs/month

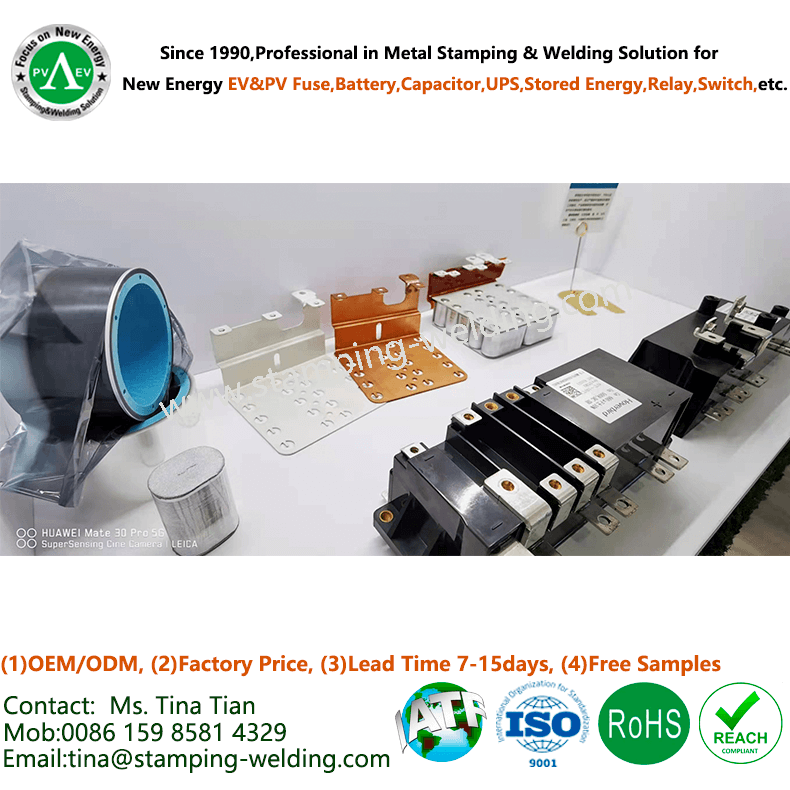

13- Applications: film capacitors for new energy electric vehicles and hybrid vehicles, new energy vehicle battery packs, new energy photovoltaic energy storage, power appliances, distribution cabinets, rail transit, cloud server uninterruptible power supplies and other power systems.
The Apollo China Electric Copper Busbars Advantages:
1. Improve equiments properity.
Copper EV BusBar can reduce the resistance and lower power cosumption. Copper busbar is capable of steady current carrying capacity and voltage-sharing.
2. Easy to install, examine and maintain.
BusBar automotive Copper can be installed with simple tools. Anyone can use it with bolt, nut and screwdriver. The workers examine the property with tester.
3. Reduce Cost
Copper Busbar increase the serve-life of machines and equipments. Good quality T2Y2 copper material can lower the temperature raise and loss of equipement parts
Automotive BusBar PET insulation refers to the use of Polyethylene Terephthalate (PET) as an insulating material for busbars in automotive applications. Busbars are conductive bars or strips used to distribute electrical power within a vehicle. The insulation on busbars is crucial to prevent short circuits and ensure the safe and reliable operation of the electrical system.
PET is a type of thermoplastic polymer that is known for its excellent electrical insulating properties, durability, and heat resistance. It is commonly used in various industries, including automotive, for insulating electrical components. In the context of automotive busbars, PET insulation helps protect the conductive elements from environmental factors, vibrations, and potential damage.
The choice of PET insulation for automotive busbars is often driven by its favorable combination of electrical insulating capabilities, mechanical strength, and resistance to temperature extremes. It helps maintain the integrity of the electrical connections and ensures the overall safety and performance of the vehicle's electrical system.
