1- Products Name: Laminated Busbar Power Solutions
2- Base Material Standard:
GB : T2Y2 Copper
DIN: E-Cu58 (Number: 2.0065)
EN: Cu-ETP ( Number: CW004A)
ISO: Cu-ETP
UNS: C11000
JIS: C1100
BS: C101
Purity ≥99.99% Copper, Conductivity %IACS≥97, Hardness 80~110HV, Tensile Strength 245-345MPa, other material also can be customized.
3-Surface Treatments:
(3.1) Silver plating
(3.2) Tin plating
(3.3) Nickel plating
(3.4) Ultrasonic cleaning
Normally plated thickness is 3μm to 12μm, but all upon customers' request.
4- Insulation Options:
(4.1) PET insulation paper (brands USA GTS, GERMANY KREMPEL, etc with white or milky white colors)

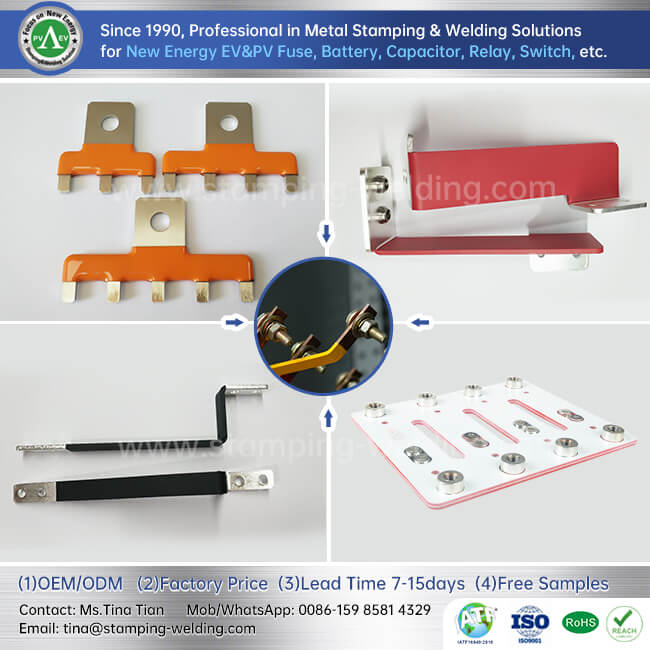

(4.2) PVC dipping (orange and green are the most popular colors)
(4.3) Epoxy powder coating (orange, green and grey are the most popular colors)
(4.4) PE heat shrink tube (orange, green, black, red are yellow are the most popular colors)
Flame Retardant / Fire Resistance: UL94-V-0 or upon you request;
Operating Temperature: -45ºC to +150 ºC
5- Copper Busbar Resistance: ≤0.00001Ω
6- Copper Busbar load voltage 3500VDC to 5000VDC and current 100A to 2000A

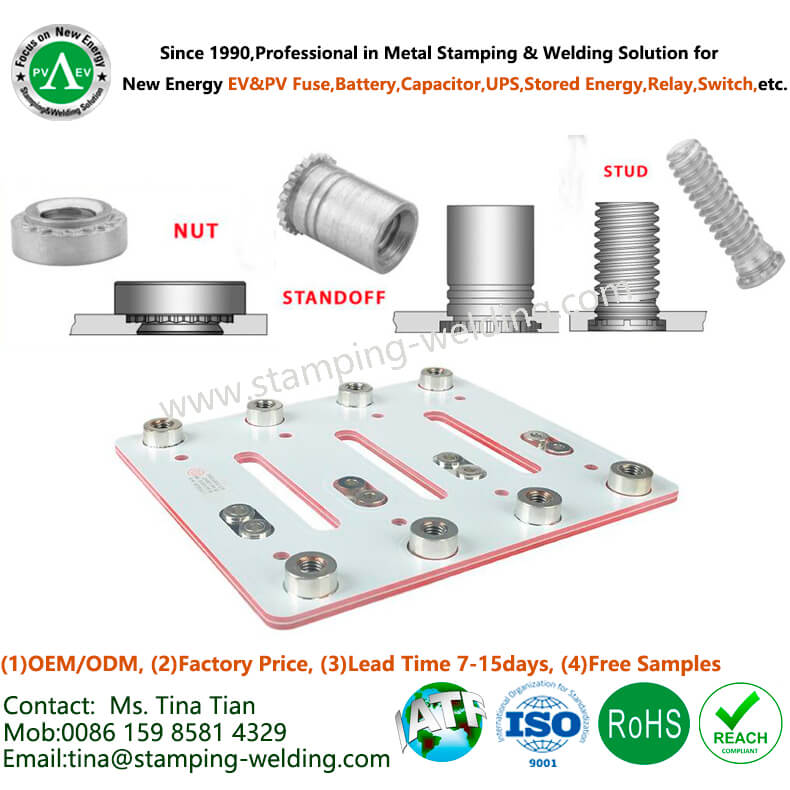

7- Copper Busbar Assembly Fixtures: USA PEM stainless nuts, studs, standoffs, screws, etc
8- Free Samples:1-10pcs is allowed
9- Lead Time:Orders 7-10days,Samples 10-20days(including the tooling/die production of Copper Stamped Part);
10- Packing: pearl cotton/blister box inside and carton/pallet outside
11- Certifications: ISO9001, IATF16949, RoHS, REACH, etc.
12- Production Capacity: 50,000,000 pcs/month
13- Applications: film capacitors for new energy electric vehicles and hybrid vehicles, new energy vehicle battery packs, new energy photovoltaic energy storage, power appliances, distribution cabinets, rail transit, cloud server uninterruptible power supplies and other power systems.
The Apollo China Laminated Busbar Power Solutions Advantages:
1. Improve equiments properity.
Copper busbar can reduce the resistance and lower power cosumption. Copper busbar is capable of steady current carrying capacity and voltage-sharing.
2. Easy to install, examine and maintain.
Copper busbar can be installed with simple tools. Anyone can use it with bolt, nut and screwdriver. The workers examine the property with tester.
3. Reduce Cost
Copper Busbar increase the serve-life of machines and equipments. Good quality T2Y2 copper material can lower the temperature raise and loss of equipement parts
"Laminated Busbar Power Solutions" likely refers to the use of laminated busbars in power distribution solutions. Laminated busbars offer several advantages in power distribution applications. Let's explore the key aspects:
Compact Design: Laminated busbars consist of multiple layers of conductive material separated by insulating layers. This layered structure allows for a compact design, saving space compared to traditional busbar configurations.
Enhanced Power Density: The compact design and efficient use of materials in laminated busbars contribute to higher power density. This is particularly beneficial in applications where space is limited, and there is a need to handle high power loads.
Improved Thermal Performance: The layered construction of laminated busbars provides improved thermal performance. Heat generated during power transmission can be dissipated more effectively, reducing the risk of overheating and enhancing overall system reliability.
Flexibility in Design: Laminated busbars offer flexibility in design, allowing for customization based on specific power distribution requirements. This adaptability makes them suitable for a wide range of applications, including those with unique space constraints or complex configurations.
Reduced Electromagnetic Interference (EMI): The insulation layers in laminated busbars help in reducing electromagnetic interference. This is particularly important in applications where minimizing EMI is critical for the proper functioning of sensitive electronic components.
Enhanced Mechanical Strength: The layering of materials in laminated busbars provides mechanical strength and durability. This ensures that the busbars can withstand mechanical stresses, vibrations, and other environmental factors.
Customizable Materials: Laminated busbars can be constructed using various materials for the conductive and insulating layers. Copper is a common choice for conductivity, while insulating layers may include materials such as polyester or polyimide.
Applications in Power Electronics: Laminated busbars find applications in power electronics, renewable energy systems, electric vehicles, and various industrial settings where efficient power distribution is crucial.
The use of laminated busbars in power solutions reflects the pursuit of efficient, reliable, and space-saving designs for power distribution in various industries and applications. These solutions contribute to the advancement of power systems with improved performance and reduced environmental impact.
