1-Products Name: Knife Type Contact for NH Fuse Link Base Holder

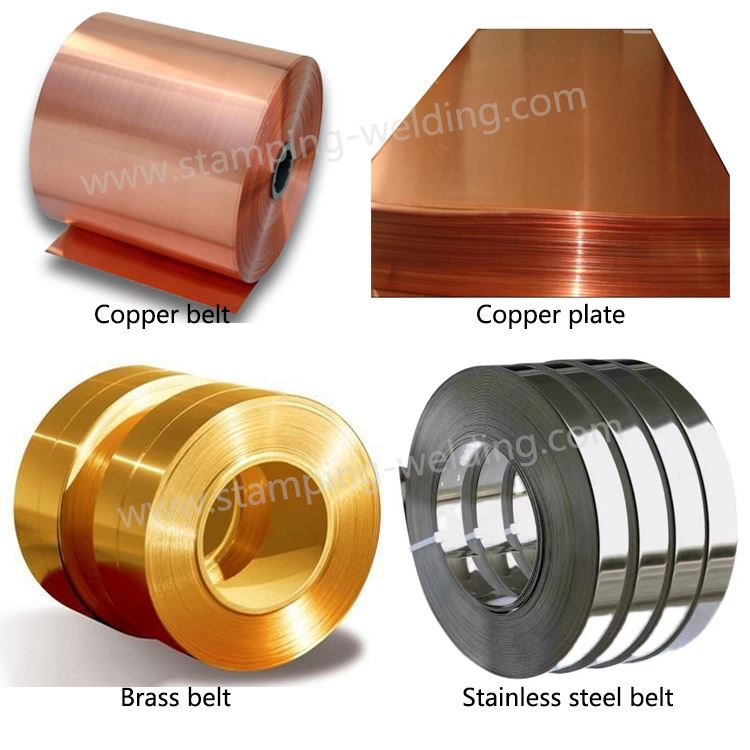

2-Base Material:
(1)Red Copper Stamping Parts:99.99% Copper T2Y2(SECu/C1100) ,%IACS≥97,HV:80~110s;
3-Surface Treatments:
(1)Silver plating
(2)Bright tin plating
(3)Lead-free fog tin plating
(4)Nickel plating
(5)Ultrasonic cleaning
4-Free Samples:10-50pcs is allowed
5-Lead Time:Orders 7-10days,Samples 20-25days(including the tooling/die production of Copper Stamped Part);
6-Packing: Plastic inside and carton/pallet outside
7-Certifications: ISO9001,IATF16949,RoHS,REACH,etc.
8-Production Capacity: 50,000,000 pcs/month
9-Applications:PV Fuse,EV Fuse,PDU Fuse,Energy Storage Fuse,UPS DC Links,NH Fuse,BS Fuse,Fast Fuse,etc.

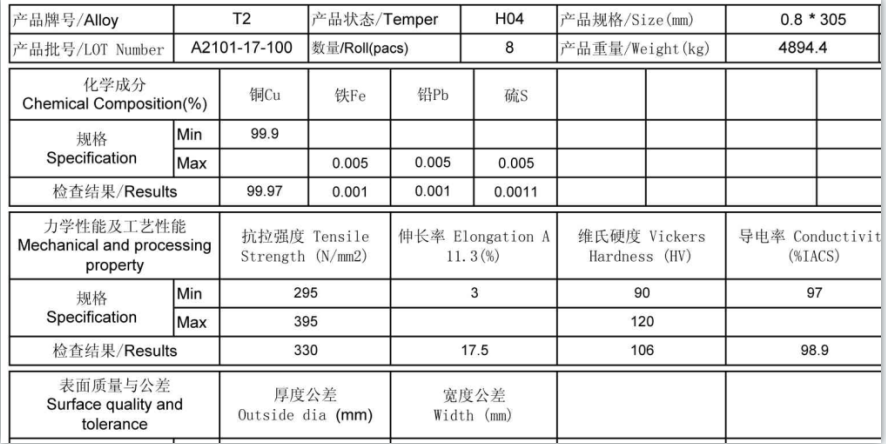

T2Y2 Red Copper Contact for Fuse material properties
1.The copper of Fuse Terminal Contact has good electrical conductivity, thermal conductivity, corrosion resistance and processing properties, and Fuse Terminal can be welded and brazed. Contains less impurities that reduce electrical conductivity and thermal conductivity, and trace oxygen has little effect on electrical conductivity, thermal conductivity and processing properties.
2.The copper terminal of EV Automotive Fuse Terminals High purity, conductivity not less than 98%.
3.The Copper of Fuse Terminal Contact is No "hydrogen disease" or very little "hydrogen disease"; good processing performance and welding, corrosion resistance and cold resistance.
4.Fuse Link Contact Copper material has good welding performance and cold bending performance, generally no "hydrogen disease" tendency, can be processed and used in a reducing atmosphere.
5.The addition of a small amount of silver to copper can significantly increase the softening temperature (recrystallization temperature) and creep strength, with little reduction in copper electrical conductivity, thermal conductivity and plasticity. The aging hardening effect of silver copper is not significant, and cold work hardening is generally used to improve the strength. The copper terminal of Fuse End Blade Ferrules has good wear resistance, electrical contact and corrosion resistance.

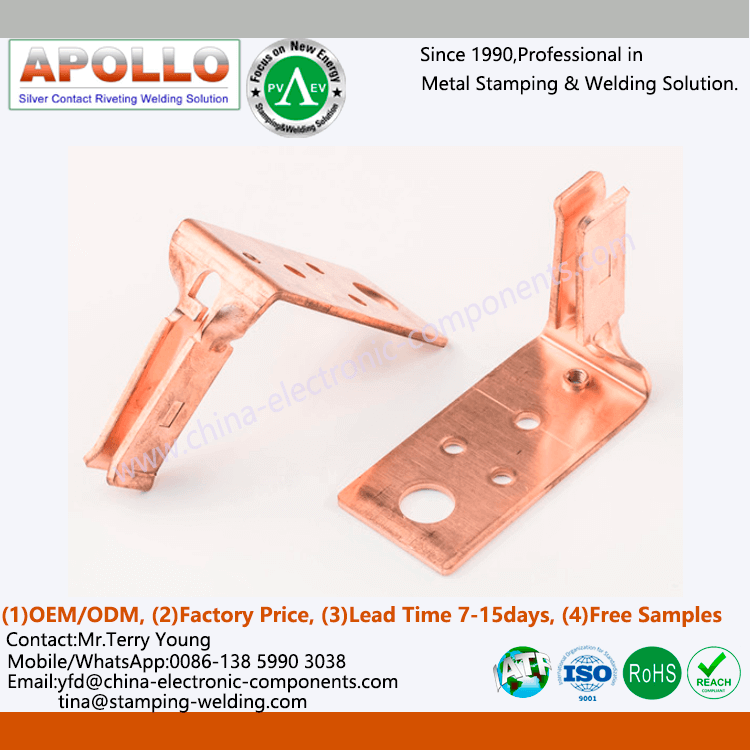

Copper Knife Type Contact for Fuse Link Base Holder

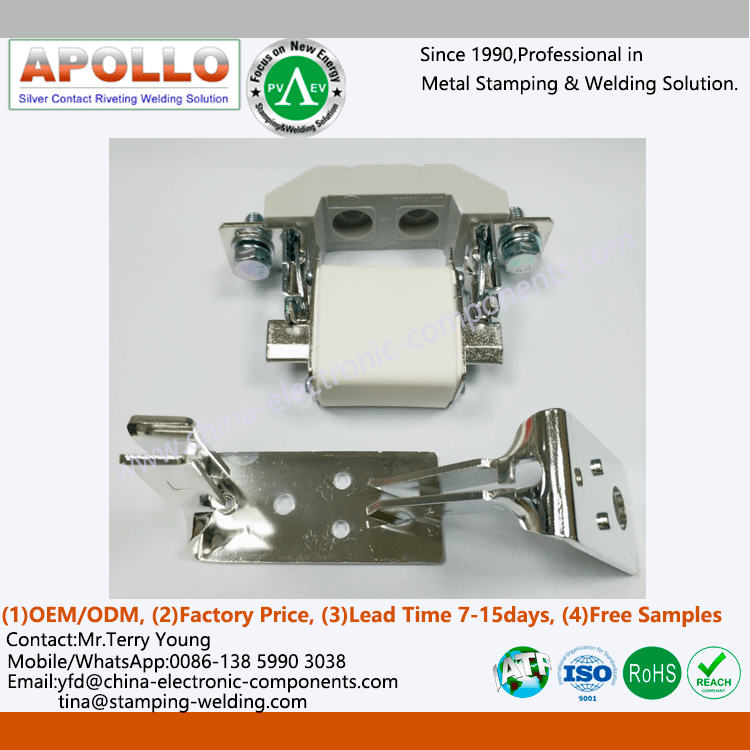

Fuse Copper T2Y2 Holders of NH-fuse,Low-voltage high breaking capacity (NH)-fuse is composed of NH-fuse body and NH-fuse base. The Fuse Copper T2Y2 Bases NH-fuse body can be inserted or pulled out by using the NH-fuse plug-in handle. Fuse Copper Knife NH-fuse complies with DIN 43 620 standard, has 7 manufacturing grades, rated current from 2 to 1250A, and rated voltage is AC 500V/DC 440V (except manufacturing grade 00, DC250V) or AC 690V/ DC 440V.
Eaton's Bussmann range of low-voltage NH-type fuses with NH Fuse Holder Silver-plated Contacts are available in current ratings from 2 to 1250 A, offering outstanding performance and reliability. This series of NH Fuse Base Square Pipe Knife fuses is fully compliant with IEC 60269-1 and 60269-2, has third-party certification to VDE 0636-2, and complies with DIN 43620. Type NH fuses with Blade Contact for Ceramic Fuse Base feature a dual-indicating design (front and top) that provides local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann range of Type Copper Knife Contact for Rail Mount Fuse Holder NH fuses are available in the following usage categories: gG, gFF and aM.
