2-Base Material:
(1)Red Copper Stamping Parts:99.99% Copper T2Y2(SECu/C1100) ,%IACS≥97,HV:80~110s;
3-Surface Treatments:
(1)Silver plating
(2)Bright tin plating
(3)Lead-free fog tin plating
(4)Nickel plating
(5)Ultrasonic cleaning
4-Free Samples:10-50pcs is allowed
5-Lead Time:Orders 7-10days,Samples 20-25days(including the tooling/die production of Copper Stamped Part);
6-Packing: Plastic inside and carton/pallet outside
7-Certifications: ISO9001,IATF16949,RoHS,REACH,etc.
8-Production Capacity: 50,000,000 pcs/month
9-Applications:PV Fuse,EV Fuse,PDU Fuse,Energy Storage Fuse,UPS DC Links,NH Fuse,BS Fuse,Fast Fuse,etc.

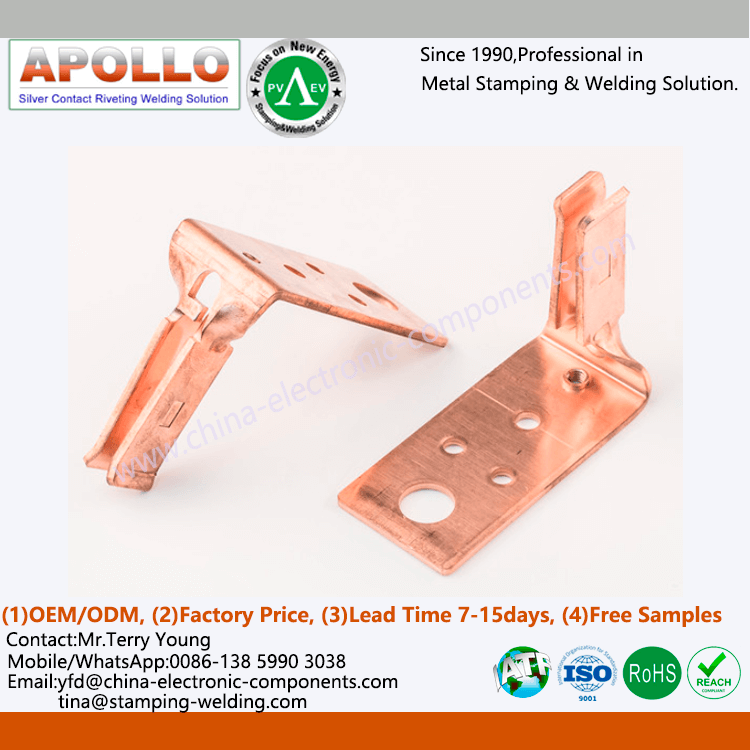

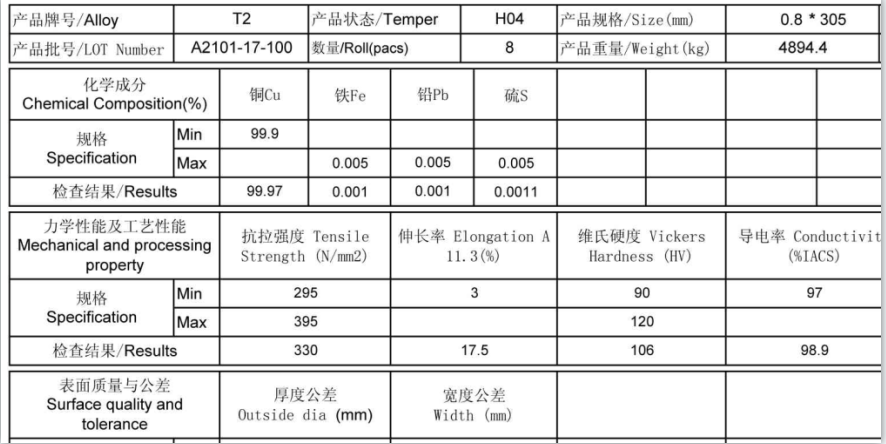

The base material of Fuse Contact T2Y2 Red Copper characteristics
National standard copper belt T2Y2 (Japanese standard copper model C1100) is also known as pure copper, copper purity ≥99.9%. The red copper of Fuse Terminal Contact has good thermal conductivity, processability, ductility, corrosion resistance and weather resistance. Copper Contact Terminal can be used in fuse link, capacitors, relays, contactors, circuit breakers and other electrical industries.
1. T2Y2 copper of the Fuse Terminal has good electrical conductivity, thermal conductivity, corrosion resistance and processing properties, and can be welded and brazed.
2. The red copper of Fuse L-type Termial contains less impurities that reduce electrical and thermal conductivity. The electrical conductivity and thermal conductivity for red copper of Securing Lug (Fixing Slot) are second only to silver, and are widely used in the production of electrical and thermal conductivity equipment and chemical industries.
3. Red copper of Copper Securing Lug (Fixing Slot) has good weldability. Xiamen China Apollo selects high-quality T2Y2 copper to produce copper fuse terminals, which can be processed into various semi-finished products and finished products Fuse Contact by cold and thermoplastic processing.

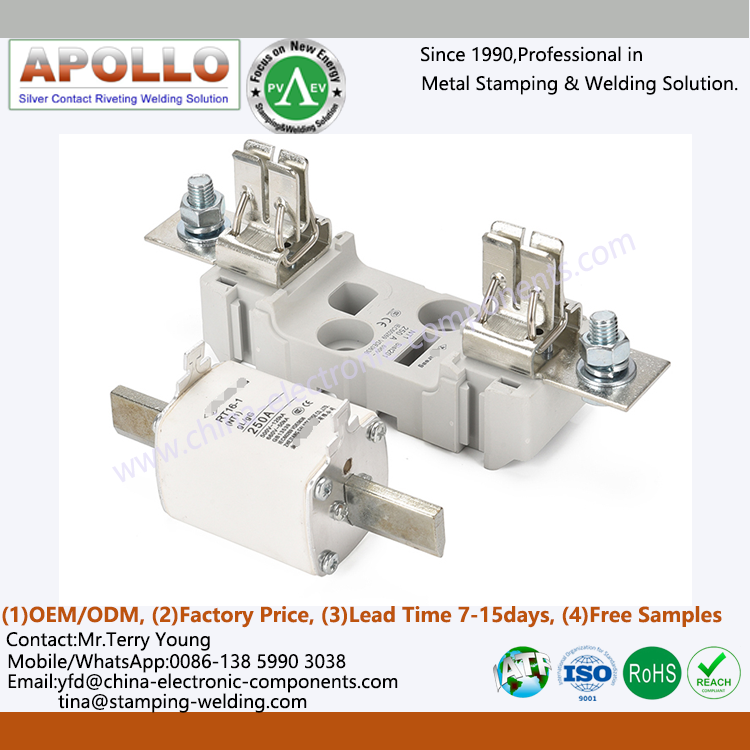

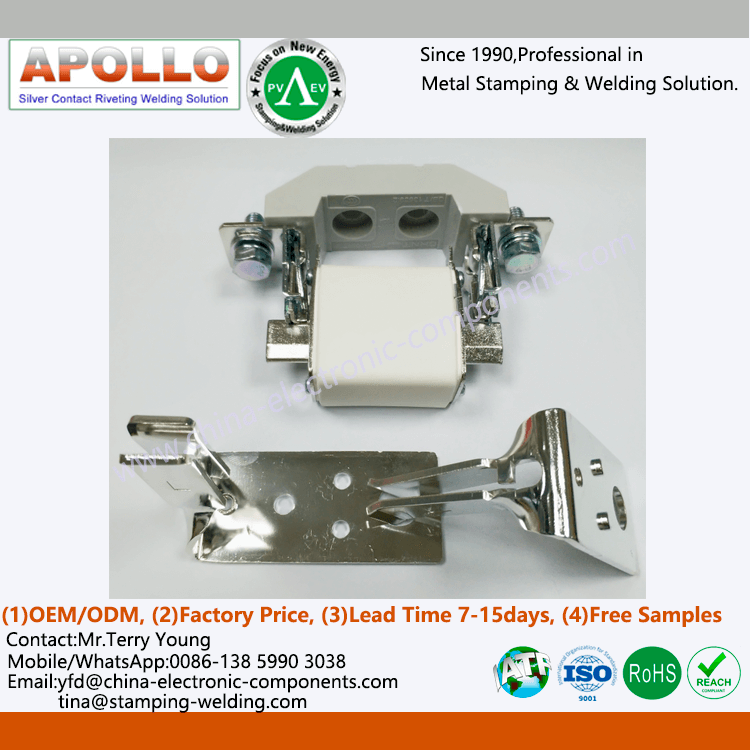

Copper Knife Type Contact for Fuse Link Base Holder
Fuse Copper T2Y2 Holders of NH-fuse,Low-voltage high breaking capacity (NH)-fuse is composed of NH-fuse body and NH-fuse base. The Fuse Copper T2Y2 Bases NH-fuse body can be inserted or pulled out by using the NH-fuse plug-in handle. Fuse Copper Knife NH-fuse complies with DIN 43 620 standard, has 7 manufacturing grades, rated current from 2 to 1250A, and rated voltage is AC 500V/DC 440V (except manufacturing grade 00, DC250V) or AC 690V/ DC 440V.
Eaton's Bussmann range of low-voltage NH-type fuses with NH Fuse Holder Silver-plated Contacts are available in current ratings from 2 to 1250 A, offering outstanding performance and reliability. This series of NH Fuse Base Square Pipe Knife fuses is fully compliant with IEC 60269-1 and 60269-2, has third-party certification to VDE 0636-2, and complies with DIN 43620. Type NH fuses with Blade Contact for Ceramic Fuse Base feature a dual-indicating design (front and top) that provides local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann range of Type Copper Knife Contact for Rail Mount Fuse Holder NH fuses are available in the following usage categories: gG, gFF and aM.
