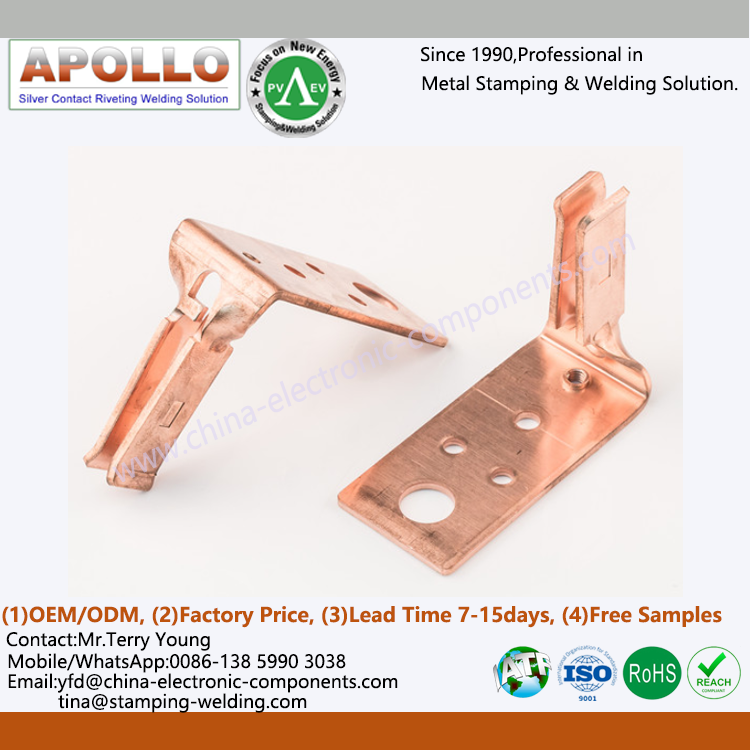

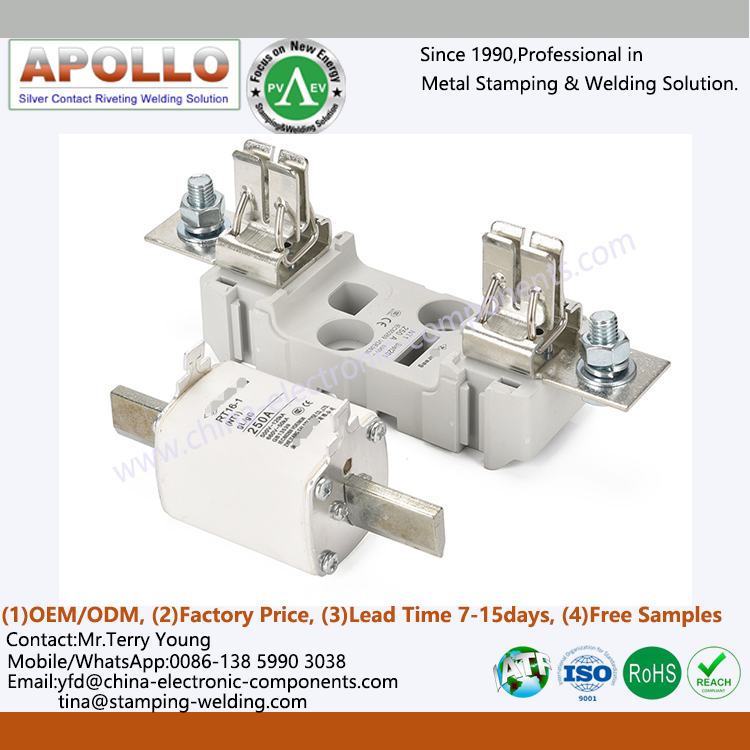

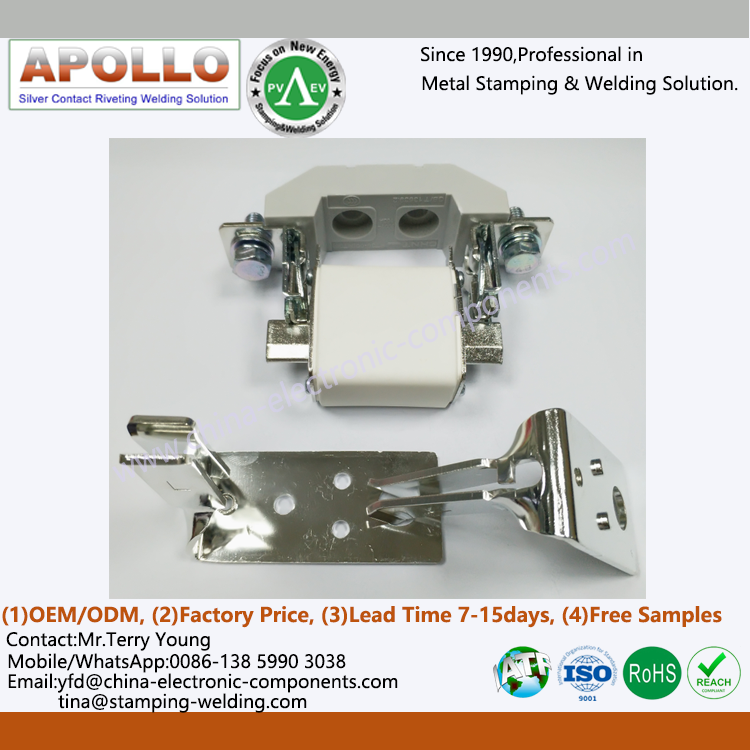

1-Products Name:Copper Blade Contact for Ceramic NH Fuse Base
2-Base Material:
(1)Red Copper Stamping Parts:99.99% Copper T2Y2(SECu/C1100) ,%IACS≥97,HV:80~110s;
3-Surface Treatments:
(1)Silver plating
(2)Bright tin plating
(3)Lead-free fog tin plating
(4)Nickel plating
(5)Ultrasonic cleaning
4-Free Samples:10-50pcs is allowed
5-Lead Time:Orders 7-10days,Samples 20-25days(including the tooling/die production of Copper Stamped Part);
6-Packing: Plastic inside and carton/pallet outside
7-Certifications: ISO9001,IATF16949,RoHS,REACH,etc.
8-Production Capacity: 50,000,000 pcs/month

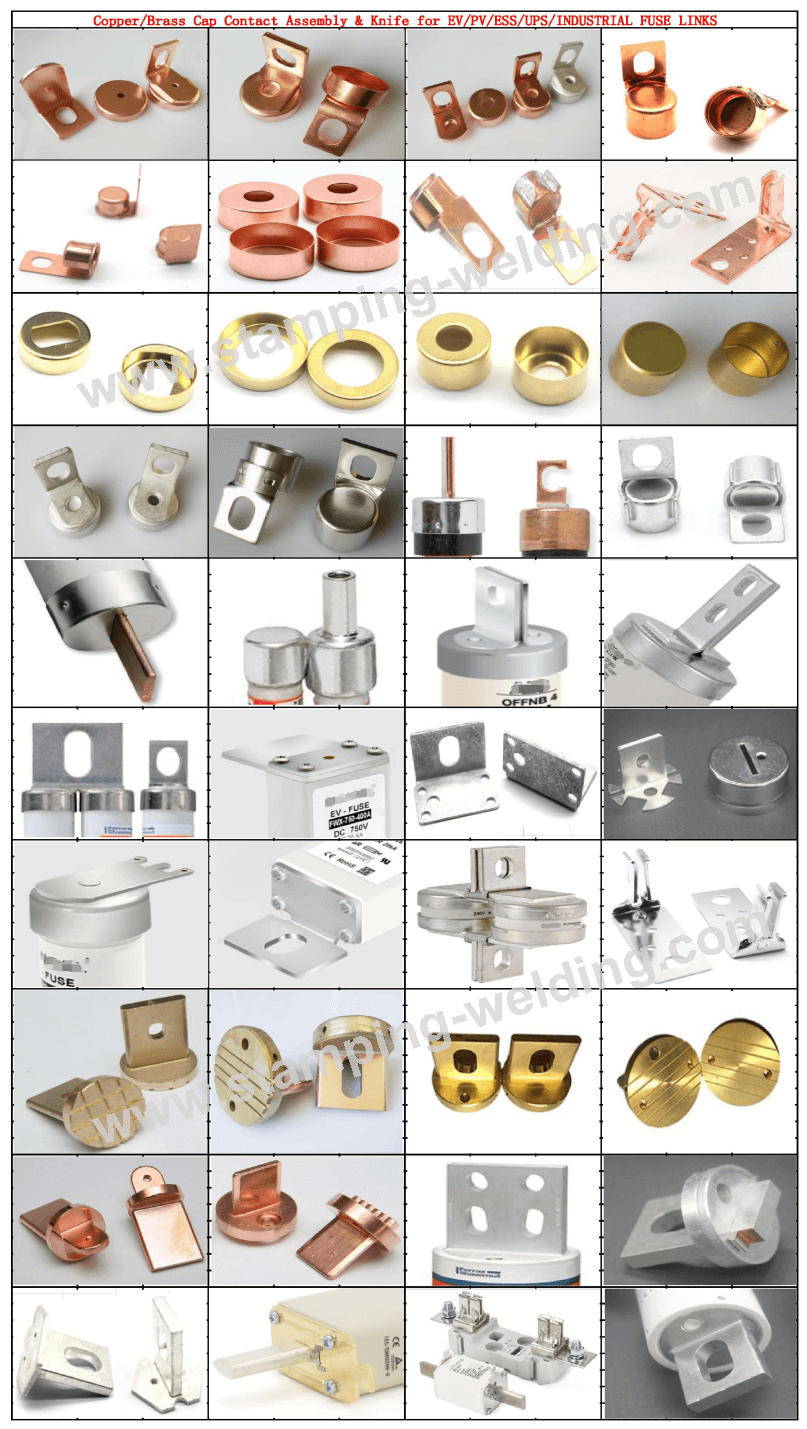

9-Applications:PV Fuse,EV Fuse,PDU Fuse,Energy Storage Fuse,UPS DC Links,NH Fuse,BS Fuse,Fast Fuse,etc.

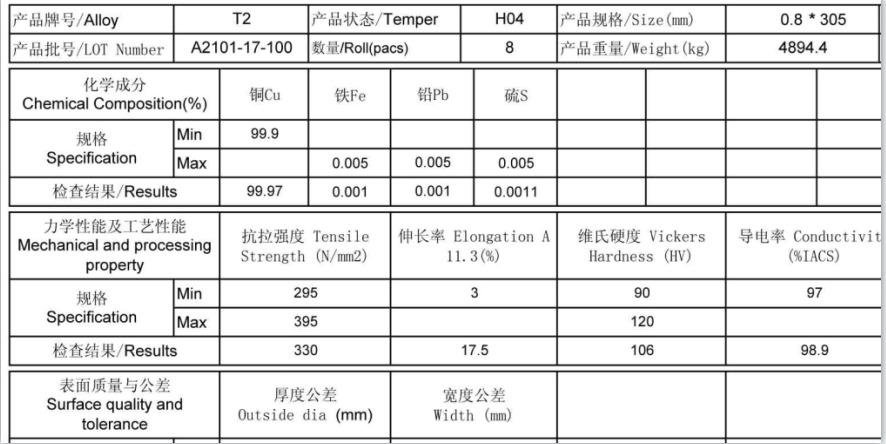

T2Y2 Red Copper Contact for Fuse material properties
1.The copper of Fuse Terminal Contact has good electrical conductivity, thermal conductivity, corrosion resistance and processing properties, and Fuse Terminal can be welded and brazed. Contains less impurities that reduce electrical conductivity and thermal conductivity, and trace oxygen has little effect on electrical conductivity, thermal conductivity and processing properties.
2.The copper terminal of EV Automotive Fuse Terminals High purity, conductivity not less than 98%.
3.The Copper of Fuse Terminal Contact is No "hydrogen disease" or very little "hydrogen disease"; good processing performance and welding, corrosion resistance and cold resistance.
4.Fuse Link Contact Copper material has good welding performance and cold bending performance, generally no "hydrogen disease" tendency, can be processed and used in a reducing atmosphere.
5.The addition of a small amount of silver to copper can significantly increase the softening temperature (recrystallization temperature) and creep strength, with little reduction in copper electrical conductivity, thermal conductivity and plasticity. The aging hardening effect of silver copper is not significant, and cold work hardening is generally used to improve the strength. The copper terminal of Fuse End Blade Ferrules has good wear resistance, electrical contact and corrosion resistance.
What are the superior properties of photovoltaic fuses
With the vigorous development of solar panels, photovoltaic fuses with Copper Pressure Tube Cap Fitting also play a vital role. Because professional photovoltaic fuses can isolate photovoltaic current in time when the solar panel is short-circuited. Thereby, the solar panel can not be fully protected by traditional fuses.Let's take a look at the superior performance of photovoltaic fuses which has Copper Cap High Pressure OEM.
1. Comprehensive protection
Because ordinary fuses which Tin Plated Copper End Caps can be activated and blown under a certain current pressure, so as to protect the electrical parts of the equipment from being damaged. However, when the solar panel is short-circuited, the amount of current generated is not particularly large, so it cannot effectively start the ordinary fuse, but the photovoltaic fuse with Copper End Caps Round can effectively break the low-voltage current, so it can fully protect the solar panel.
2. Fast fuse response
Since the conduction speed of the current is very fast, if the solar panel is short-circuited, it will lose the meaning of protection if it cannot be blown in time. Therefore, in order to avoid this kind of thing, the photovoltaic fuse with Fuse Contact Copper adopts advanced manufacturing technology and selects stable and reliable raw materials, so that the fuse of Terminal Contact response is rapid, and the fuse can be started at the moment of a short circuit, so as to prevent the electrical components from being burned.
3. Wide range of use
Photovoltaic fuses which have Copper End Caps in the industry are produced in accordance with international standard specifications, so they can be applied to various current ranges, and are equipped with standard metal ferrules, bolts and multi-purpose circuit boards, and the installation method can be based on the actual situation. The application situation can be flexibly selected, so the applicability is very strong.
